Dynapac CC1000 User Manual

Machine description
4812160801_D.pdf 2018-12-17

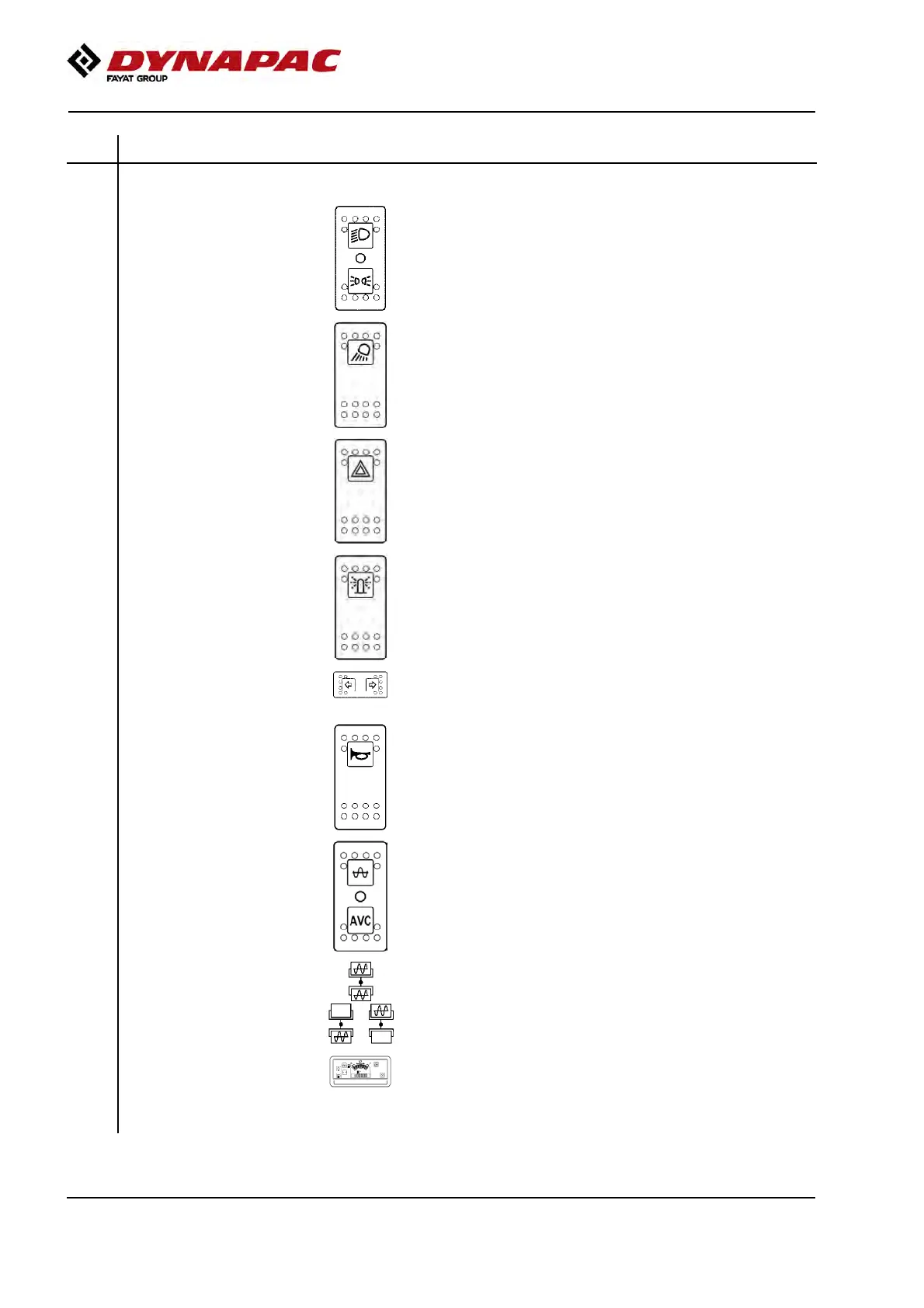

No Designation Symbol FunctionNo Designation Symbol Function
13. Sprinkler timer
(Optional)
Stepless regulation of the water flow from 0-100%.
Only functions where AUTO (12.) is depressed.
13. Sprinkler timer
(Optional)
Stepless regulation of the water flow from 0-100%.
Only functions where AUTO (12.) is depressed.
14. Road lights,
switch (Optional)
Where the upper position is depressed, the road
lights are on. Where the lower position is, depressed
the parking lights are on.
14. Road lights,
switch (Optional)
Where the upper position is depressed, the road
lights are on. Where the lower position is, depressed
the parking lights are on.
15. Working lights,
switch
When depressed, the working lights are on15. Working lights,
switch
When depressed, the working lights are on
16. Hazard warning
lights, switch
(Optional)
Where depressed, the hazard warning lights are on16. Hazard warning
lights, switch
(Optional)
Where depressed, the hazard warning lights are on
17. Hazard beacon,
switch
Where depressed, the hazard beacon is on17. Hazard beacon,
switch
Where depressed, the hazard beacon is on
18. Direction
indicators,
switch (Optional)
When depressed to the left, the left direction
indicators are on etc. In the middle position the
function is shut off.
18. Direction
indicators,
switch (Optional)
When depressed to the left, the left direction
indicators are on etc. In the middle position the
function is shut off.
19. Horn, switch Press to sound the horn.19. Horn, switch Press to sound the horn.
20. Vibration
MAN/AUTO switch
In the upper position, the vibration is switched on/off
with the switch on the forward/reverse lever. The
function is activated with the switch.
In the middle position, the vibration system is
switched off.
In the lower position, vibration is automatically
switched on or off via the forward/reverse lever.
20. Vibration
MAN/AUTO switch
In the upper position, the vibration is switched on/off
with the switch on the forward/reverse lever. The
function is activated with the switch.
In the middle position, the vibration system is
switched off.
In the lower position, vibration is automatically
switched on or off via the forward/reverse lever.
21. Vibration selector
front/rear drum,
switch (Optional)
In the depressed forward position, vibration is
activated on the front drum. In the middle position,
vibration is activated on both drums. In the
depressed rear position, vibration is activated on the
rear drum.
21. Vibration selector
front/rear drum,
switch (Optional)
In the depressed forward position, vibration is
activated on the front drum. In the middle position,
vibration is activated on both drums. In the
depressed rear position, vibration is activated on the
rear drum.
22. Control panel22. Control panel
23. Warning lamp, low
fuel level
The lamp comes on when the fuel level in the tank is
low.
23. Warning lamp, low
fuel level
The lamp comes on when the fuel level in the tank is
low.
