Maintenance - 2000h
4812161201_F.pdf2018-04-17

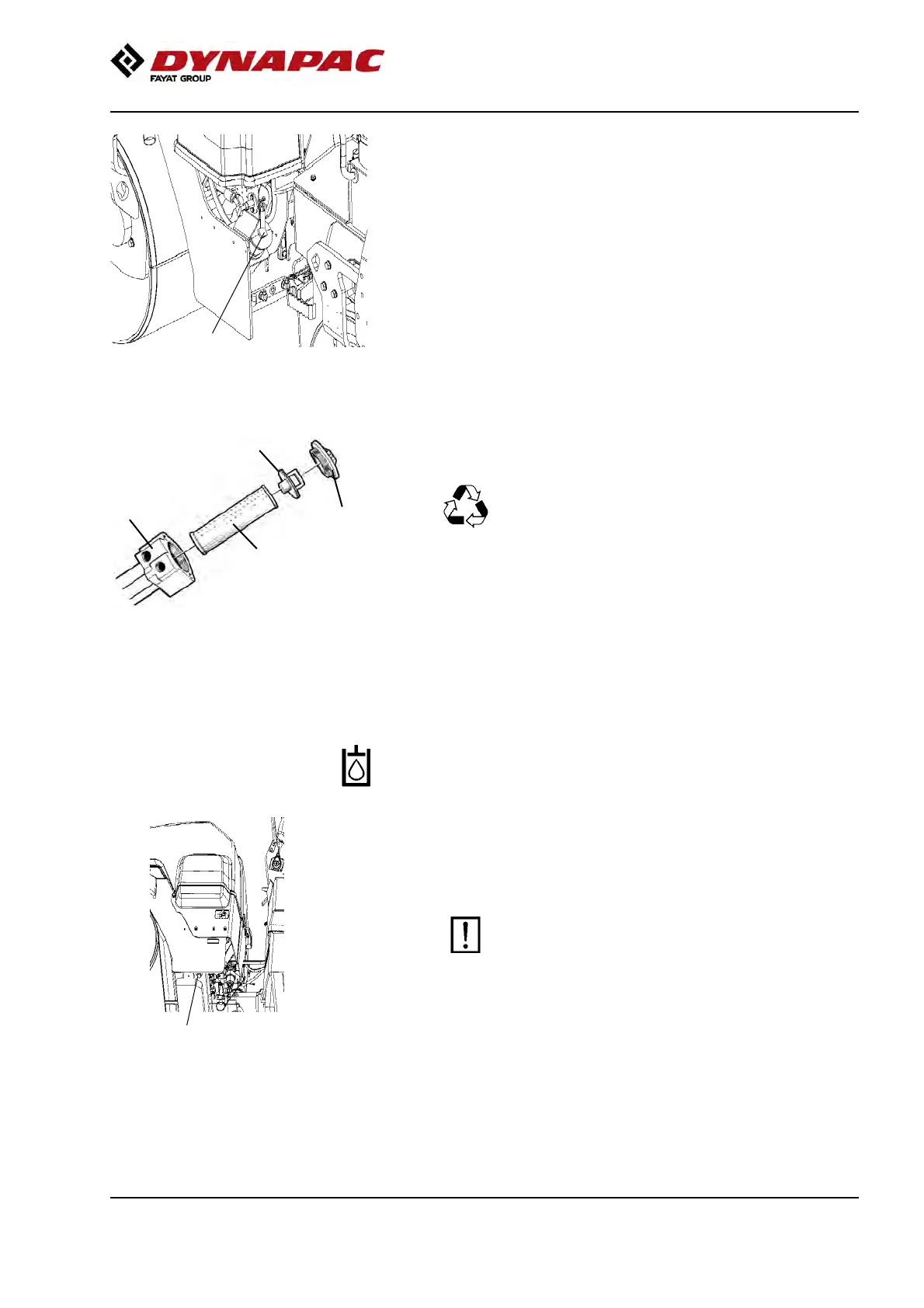

Fig. Hydraulic oil filter
3. Cap
3
Loosen the red cap (3) and pull up the filter insert (4).
Refit the red cap temporarily to prevent dust and dirt
getting into the tank.
6
4
3
5
Fig. Hydraulic oil filter
3. Cap
4. Filter insert
5. Handle
6. Filter holder
Release the filter insert (4) from the handle (5).
Remove the filter (4) and hand in to an
environment-friendly waste disposal station. This
is a disposable filter and cannot be cleaned.
Remove the filter (4) and hand in to an
environment-friendly waste disposal station. This
is a disposable filter and cannot be cleaned.
Mount the new insert on the handle, refit the unit into
the filter holder (6), and refit the red cover.
Start the engine and allow it to run at full revs for 30
seconds. Check that the filter cap (3) is tight.
Hydraulic fluid reservoir - Draining
Fig. Left frame side
1. Drain plug
1
Condensate in the hydraulic tank is drained via the
plug (1). This should be done when the roller has
stood still for some time, e.g. during the night.
Be very careful during draining. Do not drop the
plug or else all the hydraulic fluid will flow out.
Be very careful during draining. Do not drop the
plug or else all the hydraulic fluid will flow out.
Drain as follows:
Place a container under the plug (1). Loosen and allow
any condensate to run out. Tighten the plug.
111
