Maintenance - Maintenance schedule
4812161201_F.pdf2018-04-17
Maintenance - Maintenance schedule
Service and maintenance points
24
1
2 3 4 5 6 7
8
9
10
11
12
13
14
1516 1718
20
21
22
23

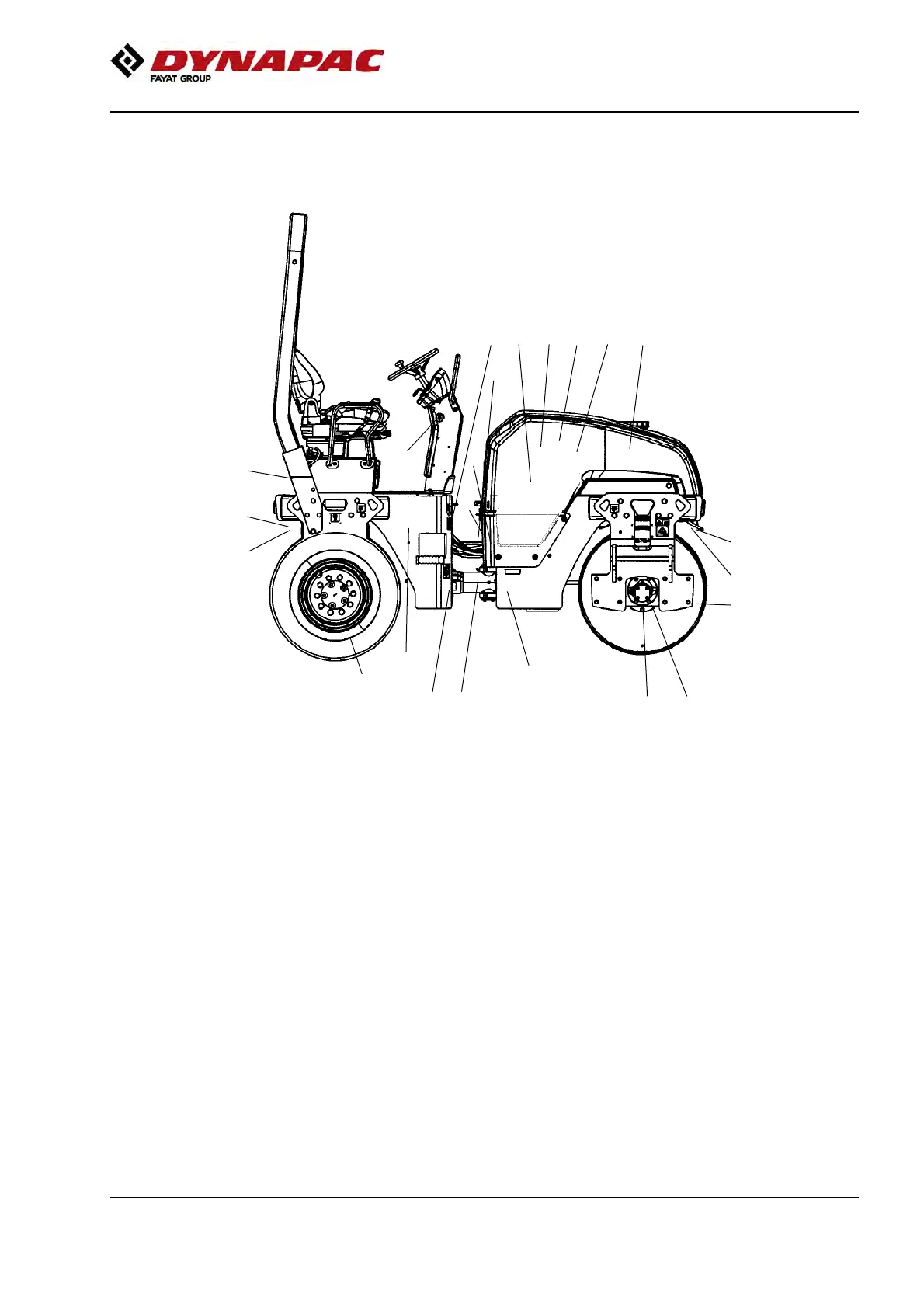

Fig. Service and maintenance points
1. Fuel tank 9. Scrapers 17. Filler plugs/Drum1. Fuel tank 9. Scrapers 17. Filler plugs/Drum
2. Refueling 10. Shock absorbers and
attachment screws
18. Oil level in drum2. Refueling 10. Shock absorbers and
attachment screws
18. Oil level in drum
3. Cooler 11. Hydraulic fluid refilling3. Cooler 11. Hydraulic fluid refilling
4. Air cleaner 12. Hydraulic fluid tank 20. Tires/air pressure4. Air cleaner 12. Hydraulic fluid tank 20. Tires/air pressure
5. Battery 13. Hydraulic fluid filter 21. Sprinkler system/Wheels5. Battery 13. Hydraulic fluid filter 21. Sprinkler system/Wheels
6. Diesel engine 14. Hydraulic fluid level glass 22. Scrapers/Wheels6. Diesel engine 14. Hydraulic fluid level glass 22. Scrapers/Wheels
7. Water tank 15. Steering joint 23. Emulsion tank7. Water tank 15. Steering joint 23. Emulsion tank
8. Sprinkler system/Drum 16. Steering cylinder bracket 24. Emergency stop8. Sprinkler system/Drum 16. Steering cylinder bracket 24. Emergency stop
General
Periodic maintenance should be carried out after the
number of hours specified. Use the daily, weekly etc.
periods where number of hours cannot be used.
63
