Lifting
1
23

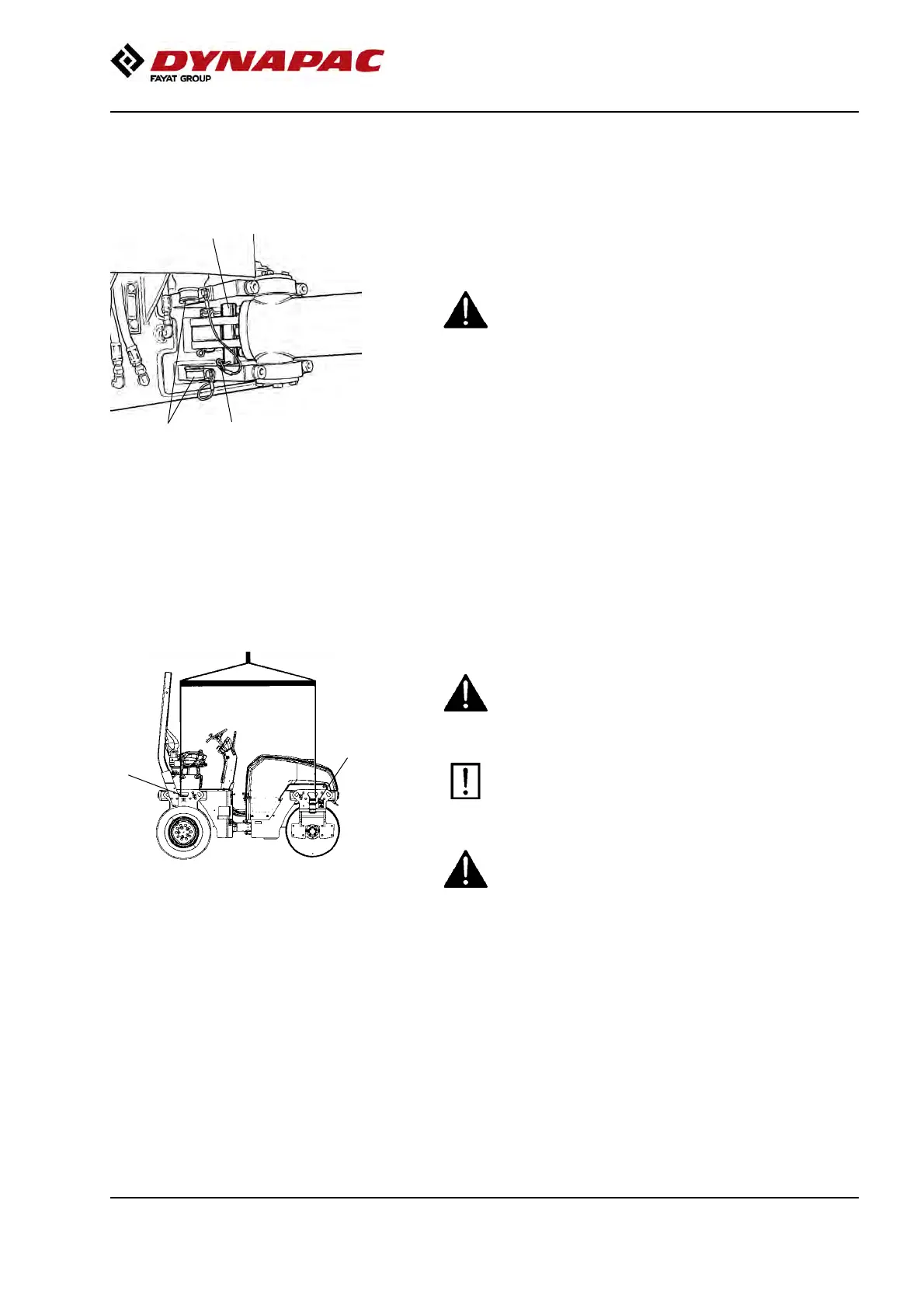

Fig. Left side of steering joint
1. Lock bar
2. Lock pin
3. Holder
Locking the articulation
Before lifting the roller the steering joint must be
locked to prevent it turning.
Before lifting the roller the steering joint must be
locked to prevent it turning.
Turn the steering wheel to the straight ahead position.
Switch off the machine and activate the parking brake.
Pull down the galvanized lock bar (1) from its holder
(3), and place it from underneath in the hole on the
lower steering joint bracket. Press the bar through until
the upper end is visible in the hole on the upper
steering joint bracket.
Secure the bar with the lock pin (2).
1
Weight: refer to the hoisting plate on the
roller
1
Fig. Lifting the roller
1. Lifting plate
Lifting the roller
The weight of the machine is shown on the lifting
plate (1). See also Technical specifications.
The weight of the machine is shown on the lifting
plate (1). See also Technical specifications.
Lifting equipment such as chains, steel wires,
straps and lifting hooks must be dimensioned in
accordance with the relevant safety regulations
for the lifting equipment.
Lifting equipment such as chains, steel wires,
straps and lifting hooks must be dimensioned in
accordance with the relevant safety regulations
for the lifting equipment.
Stand well clear of the hoisted machine! Make sure
that the lifting hooks are properly secured.
Stand well clear of the hoisted machine! Make sure
that the lifting hooks are properly secured.
