Maintenance, 10h
4812161201_F.pdf2018-04-17
1
2
3
4

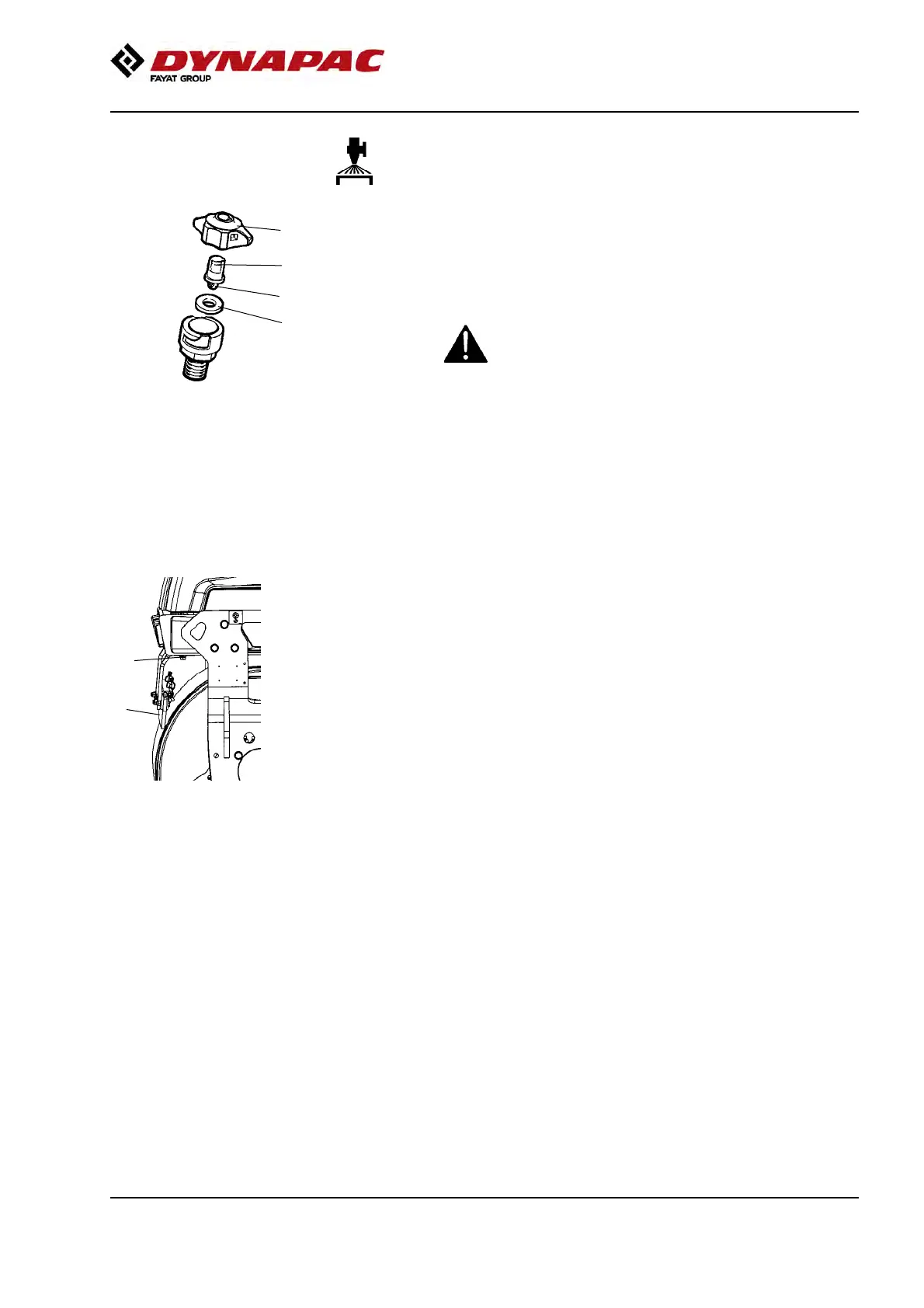

Fig. Nozzle
1. Sleeve
2. Nozzle
3. Gasket
4. Strainer
Dismantle the blocked nozzle by hand. Blow the
nozzle (2) and fine filter (4) clean with compressed air,
or install replacement parts and clean the clogged
parts later.
Wear protective goggles when working with
compressed air.
Wear protective goggles when working with
compressed air.
Scrapers, fixed
Checking - Setting
Fig. Drum
1. Scraper blade
2. Adjusting screws
2
1
Make sure that the scrapers are undamaged. Adjust
the scrapers so that they are 1-2 mm from the drum.
For special asphalt compounds, it may be better if the
scraper blades (1) lie lightly against the drums.
Asphalt remnants can accumulate on the scraper and
affect the contact force. Clean as required.
Loosen the screws (2) to adjust the contact pressure
of the scraper blade against the drum.
Remember to tighten all the screws after any
adjustment.
