Machine description
4812161201_F.pdf2018-04-17

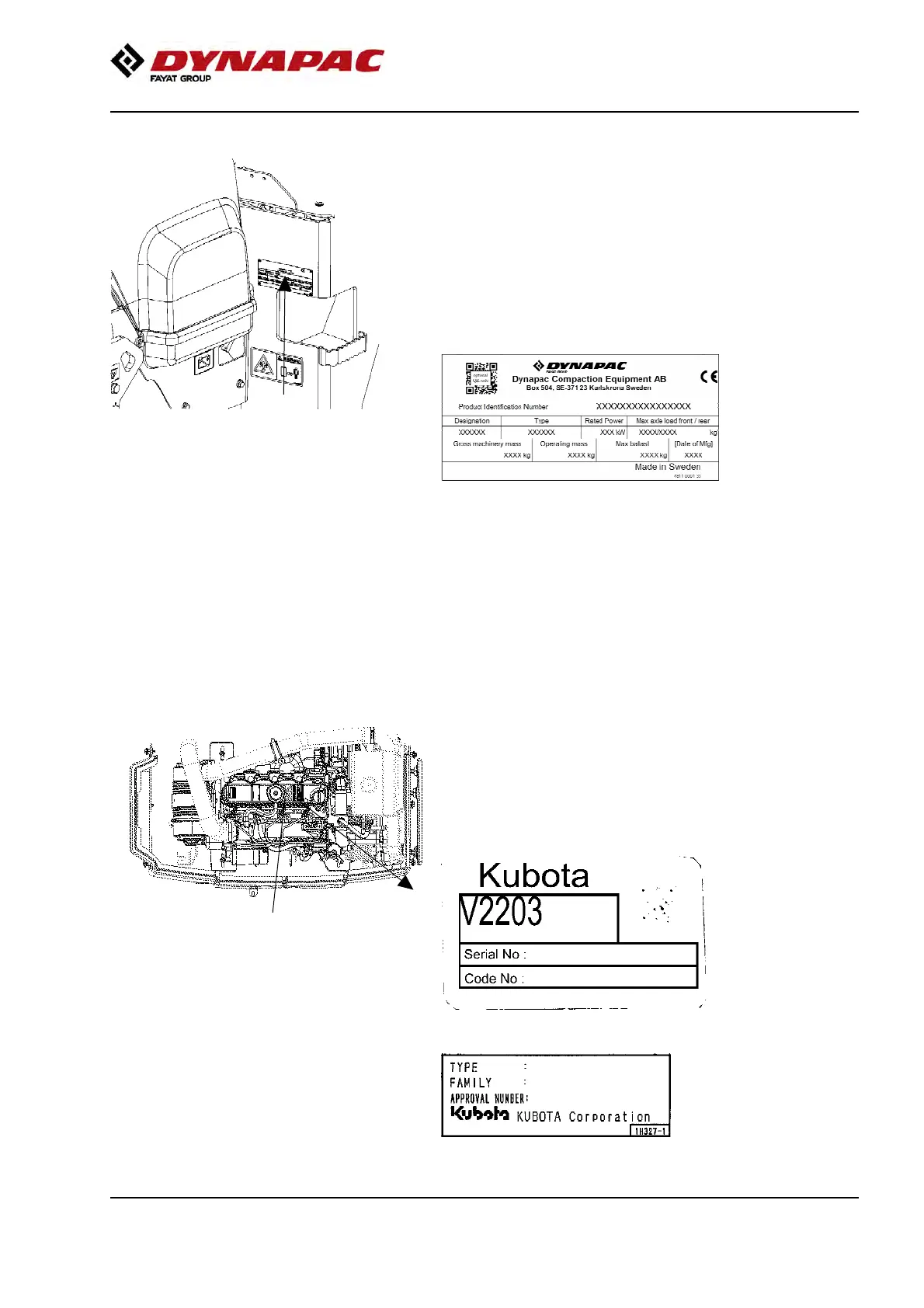

Machine plate
1
Fig. Operator platform
1. Machine plate
The machine type plate (1) is affixed on the left front
edge of the operator's platform.
The plate specifies the manufacturer's name and
address, the type of machine, the PIN number (serial
number), service weight, engine power and year of
manufacture. If the machine is delivered outside of the
EU, the plate may not have a CE marking and the year
of manufacture.
Please state the machine's PIN (serial number)
when ordering parts.
Engine plates
The engine's type plate (1) is located on top of the
cylinder head cover.
The plate specifies the type of engine, its serial
number and the engine specification.
1
Fig. Engine
1. Type plate
Please specify the engine serial number when
ordering spares. Refer also to the engine manual.
23
