Dynapac CC1300C User Manual

Maintenance, 10h
4812161201_F.pdf 2018-04-17
Scrapers, spring-action (Optional)
Checking - Adjustment

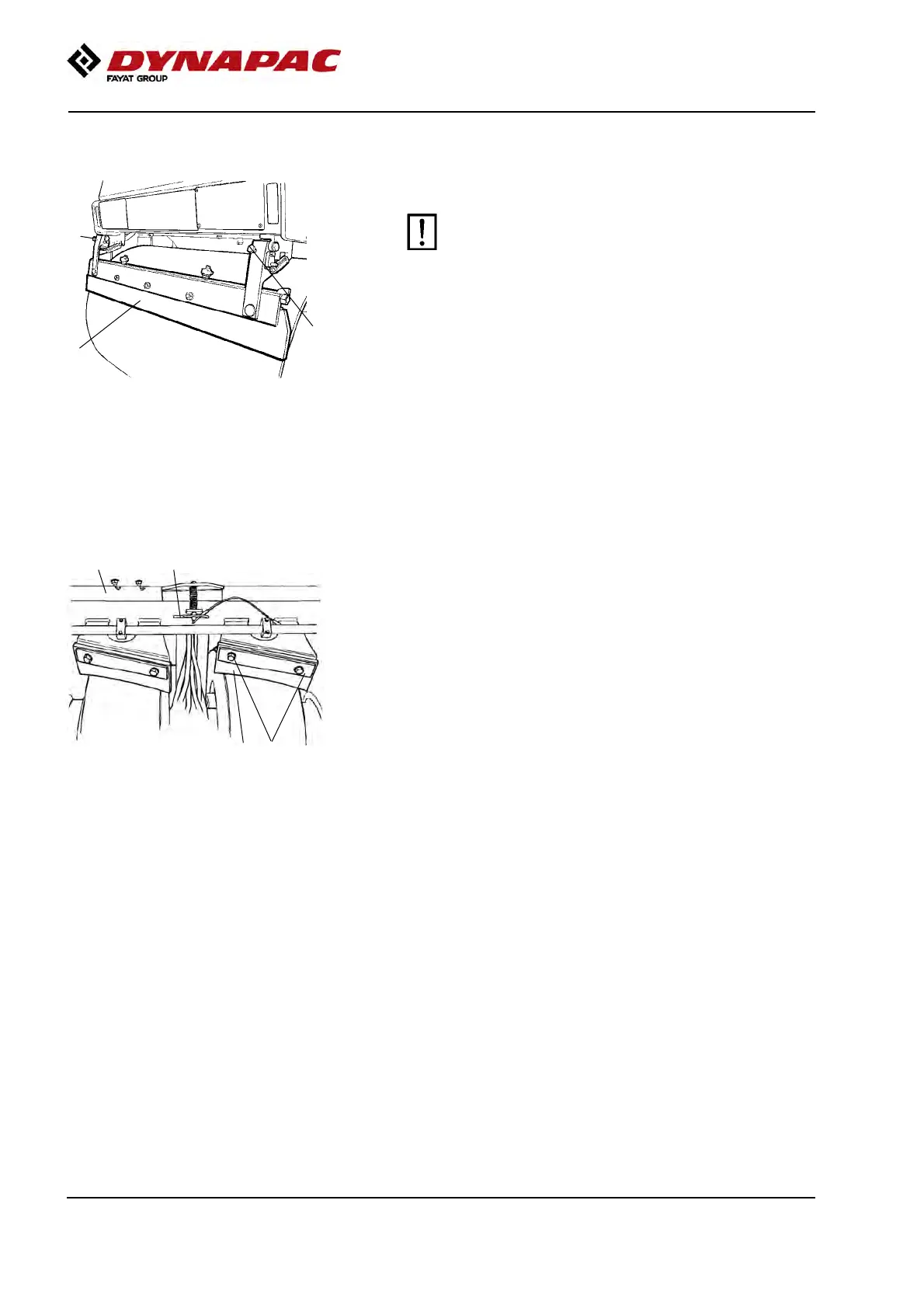

Fig. Spring-action scrapers
1. Scraper blade
2. Adjusting screws
2
2
1
The scrapers must be lifted from the drum during
transport.
The scrapers must be lifted from the drum during
transport.
Scrapers
Check - Adjustment
1
2
3
4
Fig. Wheel scrapers
1. Scraper
2. Scraper blade
3. Lock pin
4. Adjusting screw
Make sure that the scraper (1) is flush with the tire
when compacting asphalt.
The scrapers must hang clear of the tires during
transport. Lift up the scraper beam (2) by moving up
the cotter (3) to the uppermost hole.
The angle of the scraper to the tire can be adjusted by
releasing the screws (4) to adjust the scraper, and
then tightening the screws.
78
