Miscellaneous
4812161201_F.pdf 2018-04-17

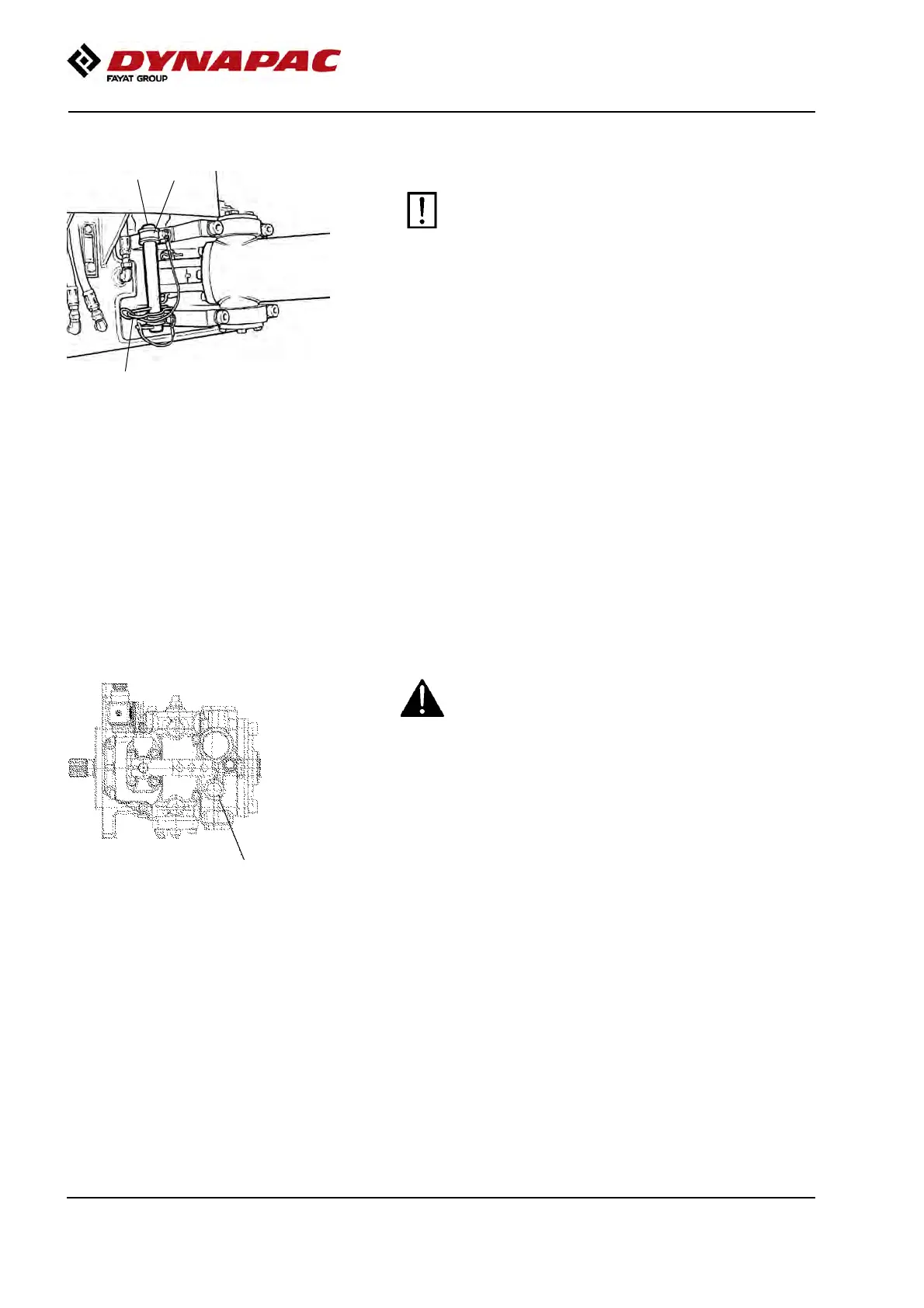

Unlocking the articulation
1
2
3
Fig. Left side of steering joint
1. Lock bar
2. Lock pin
3. Holder
Remember to refit the lock bar (1) in its holder
after operation.
Remember to refit the lock bar (1) in its holder
after operation.
Towing
The roller can be moved up to 300 meters (1,000 ft)
using the instructions below.
Short distance towing with switched off engine
Fig. Propulsion pump
1. By-pass screw
1
Chock the wheels to prevent the roller
from moving when the brakes are
hydraulically disengaged.
Chock the wheels to prevent the roller
from moving when the brakes are
hydraulically disengaged.
Open the hood and make sure that the propulsion
pump is accessible.
On the pump there is a by-pass screw (1), which
should be unscrewed counterclockwise (maximum two
turns) to set the system (ports A and B) in by-pass
mode.
This function enables a machine to be moved without
the drive shaft on the propulsion pump rotating.
When resetting the by-pass screw (1) tightened
clockwise (maximum two turns).
50
