Technical specifications

4812161201_F.pdf 2018-04-17

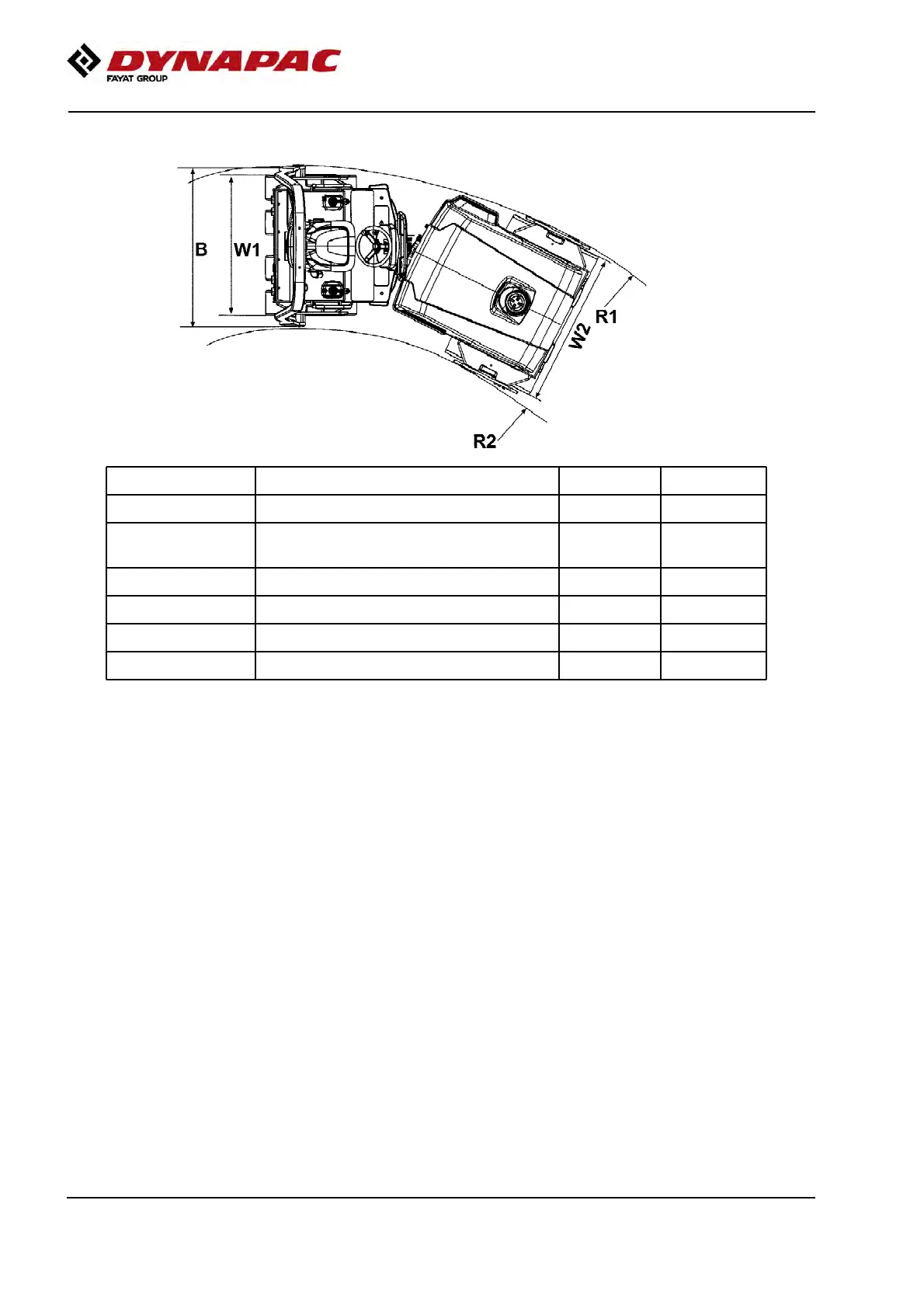

Dimensions, top view

Dimensions mm inDimensions mm in

B Machine width 1450 57B Machine width 1450 57

B (Without

ROPS)

Machine width 1400 55B (Without

ROPS)

Machine width 1400 55

Turning radius, outer 4240 167R

Turning radius, outer 4240 167

Turning radius, inner 2940 116R

Turning radius, inner 2940 116

Wheel width 1280 50W

Wheel width 1280 50

Drum width 1300 51W

Drum width 1300 51

Table of Contents3
Introduction11
The Machine11
Intended Use11
Warning Symbols11
Safety Information11
General12
CE Marking and Declaration of Conformity13
Safety - General Instructions15
Safety - When Operating17
Work Driving17
Driving Near Edges18
Special Instructions19
Standard Lubricants and Other Recommended Oils and Fluids19
Higher Ambient Temperatures, above +40°C (104°F)19
Lower Ambient Temperature - Freeze Risk19
Temperatures19
High Pressure Cleaning19
Fire Fighting20
Roll over Protective Structure (ROPS)20
Battery Handling20
Jump Starting21
Technical Specifications23
Vibrations - Operator Station23
Noise Level23
Slopes23
Dimensions, Top View24
Dimensions, Side View25
Weights and Volumes26
Working Capacity26
General26
- Tightening Torque28
- ROPS - Bolts29
- Hydraulic System29
Machine Description31
- Diesel Engine31
- Electrical System31
- Propulsion System/Transmission31
- Brake System31
- Steering System31
- Rops31
- Identification32
- Instruments/Controls39
- Electrical System43
  - Fuses43
  - Fuses at Battery Master Disconnect Switch44
Operation45
- Before Starting45
- Starting49
  - Starting the Engine49
- Driving51
  - Operating the Roller51
  - Interlock/Emergency Stop/Parking Brake - Check52
- Vibration52
  - Manual/Automatic Vibration52
- Braking53
- Parking54
  - Chocking the Wheels/Drum54
  - Battery Disconnector55
Long-Term Parking57
- Engine57
- Battery57
- Air Cleaner, Exhaust Pipe57
- Fuel Tank57
- Hydraulic Reservoir57
- Water Tank57
- Steering Cylinder, Hinges, Etc58
- Hoods, Tarpaulin58
Miscellaneous59
- Lifting59
- Towing60
- Transport63
  - Securing CC1300C for Loading64
  - Retractable ROPS (Optional)65
Operating Instructions - Summary67
Preventive Maintenance69
- Acceptance and Delivery Inspection69
- Warranty69
Maintenance - Lubricants and Symbols71
- Maintenance Symbols72
Maintenance - Maintenance Schedule73
- Service and Maintenance Points73
- General73
- Every 10 Hours of Operation (Daily)74
- After the FIRST 50 Hours of Operation75
- Every 50 Hours of Operation (Weekly)75
- Every 250 / 750 / 1250 / 1750 Hours of Operation75
- Every 500 / 1500 Hours of Operation76
- Every 1000 Hours of Operation77
- Every 2000 Hours of Operation78
- Service - Checklist79
Maintenance, 10H81
- Coolers81
- Checking - Cleaning81
Check - Coolant System82
Hydraulic Reservoir, Level Check - Filling83
Lowering of Engine Hood84
Air Circulation - Check84
Fuel Tank - Filling85
Water Tank - Filling85
Sprinkler System/Drum Checking - Cleaning86
Sprinkler System / Wheels Check - Cleaning86
Scrapers, Fixed Checking - Setting87
Scrapers, Spring-Action (Optional) Checking - Adjustment88
Scrapers Check - Adjustment88
Pump System / Tire Check - Cleaning89
Brakes - Check90
Maintenance - 50H91
Air Cleaner Indicator91
Air Cleaner91
Check - Replacement of Main Filter91
Air Filter Indicator - Resetting92
Backup Filter - Change92
Air Cleaner - Cleaning93
Steering Cylinder and Steering Joint - Lubrication93
Tires - Tire Pressure94
Maintenance Measures - 250 H95
Battery - Check Condition95
Engine Oil and Oil Filter - Change96
Maintenance Measures - 500 H97
Battery - Check Condition97
Engine Oil and Oil Filter - Change98
Drum - Oil Level Inspection - Filling99
Rubber Elements and Attachment Screws Check99
Hydraulic Reservoir Cap - Check99
Controls - Lubrication100
Check - Coolant System102
Replacing the Fuel Filter102
Replacing the Pre-Filter103
Maintenance - 1000H105
Battery - Check Condition105
Engine Oil and Oil Filter - Change106
Drum - Oil Level Inspection - Filling107
Rubber Elements and Attachment Screws Check107
Hydraulic Reservoir Cap - Check107
Controls - Lubrication108
Check - Coolant System110
Replacing the Hydraulic Oil Filter110
Hydraulic Fluid Reservoir - Draining111
Replacing the Fuel Filter112
Replacing the Pre-Filter113
Maintenance - 2000H115
Battery - Check Condition115
Engine Oil and Oil Filter - Change116
Drum - Oil Level Inspection - Filling117
Rubber Elements and Attachment Screws Check117
Hydraulic Reservoir Cap - Check117
Controls - Lubrication118
Check - Coolant System120
Replacing the Hydraulic Oil Filter120
Hydraulic Fluid Reservoir - Draining121
Replacing the Fuel Filter122
Replacing the Pre-Filter123
Water Pump - Draining123
Hydraulic Tank - Changing the Fluid124
Drum - Oil Change125
Water Tank - Draining125
Water Tank - Cleaning126
Emulsion Tank - Draining126
Fuel Tank - Cleaning127
Steering Joint - Check127
