Dynapac CC1300C - Replacing the Pre-Filter; Water Pump - Draining

Maintenance - 2000h
4812161201_F.pdf2018-04-17
Replacing the pre-filter
2
3

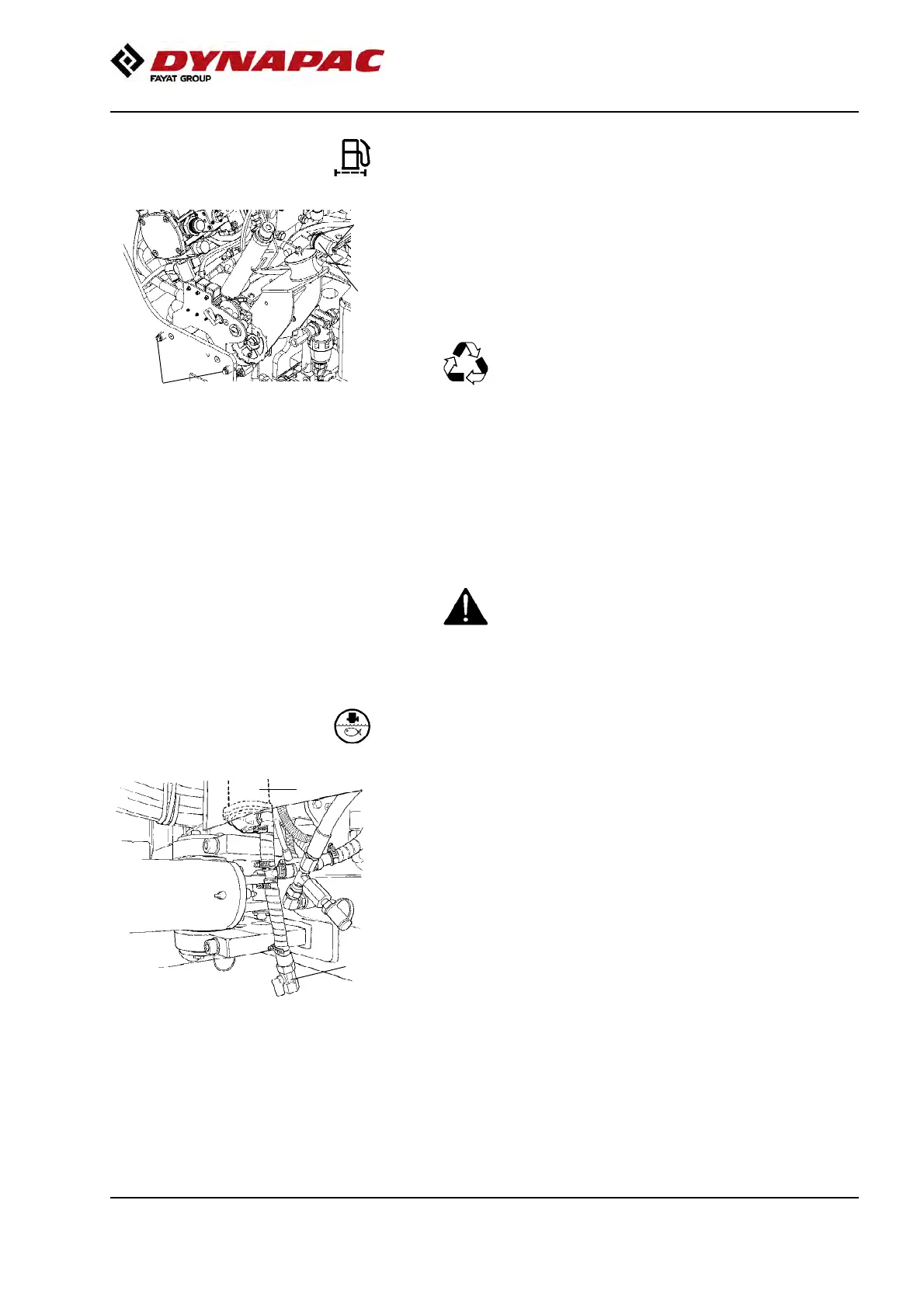

Fig. Engine compartment
1. Pre-filter
2. Hose clamps
3. Bolts
1
Activate the parking brake.
Switch off the engine and remove the plate on the left
side of the frame (at battery disconnector) by releasing
the three bolts (3).
Release the hose clamps (2) with a screwdriver.
Place a container underneath to collect fuel that
runs out when the filter is released.
Place a container underneath to collect fuel that
runs out when the filter is released.
Remove the pre-filter (1) and hand in to a waste
disposal station. This is a disposable filter and cannot
be cleaned.
Fit a new pre-filter and tighten the hose clamps.
Start the engine and check that the pre-filter is tight.
Ensure good ventilation (air extraction) if the
diesel engine is run indoors. Risk of carbon
monoxide poisoning.
Ensure good ventilation (air extraction) if the
diesel engine is run indoors. Risk of carbon
monoxide poisoning.
Water pump - Draining
1
2
Fig. Pump system
1. Water pump
2. Drain cock
The water pump (1) is emptied by opening the drain
cock (2).
