Release the brakes
1
2
3

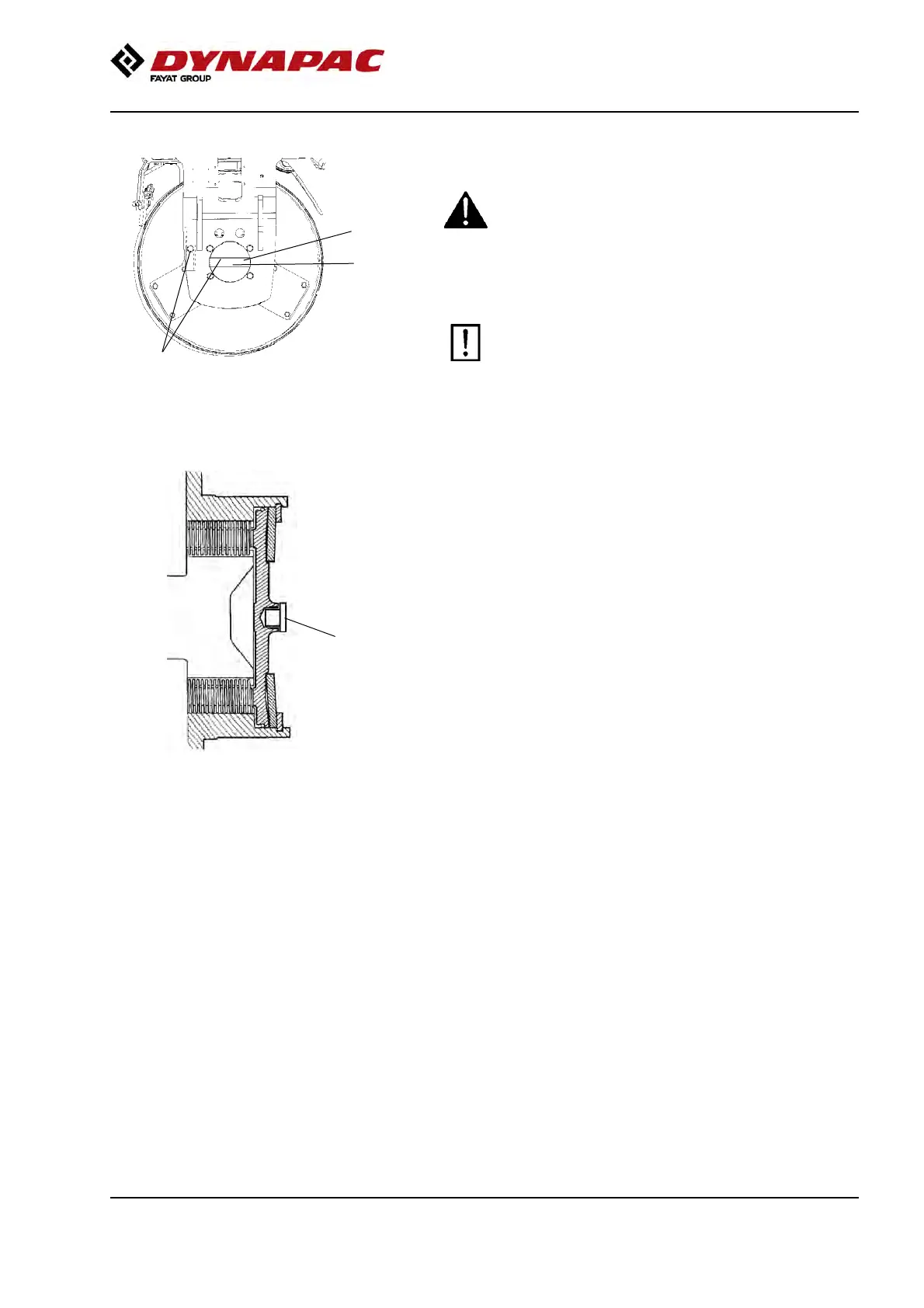

Fig. Left side of drum
1. Brake tool
2. Fastening screw
3. Disengagement nut
Activate the parking brake, and stop the engine.
Block the drum with a chock to prevent movement;
the roller can start rolling when the brakes are
released.
Activate the parking brake, and stop the engine.
Block the drum with a chock to prevent movement;
the roller can start rolling when the brakes are
released.
The disc brake in each drive motor must be
disengaged mechanically, according to below
following instructions, before the roller can be
towed.
The disc brake in each drive motor must be
disengaged mechanically, according to below
following instructions, before the roller can be
towed.
4
Fig. Brake housing
4. Center plug
Remove the center plug (4) using a screwdriver.
Screw off the brake tool (1) from its threaded fixing
hole. Then fix the brake tool (1) in the center hole by
tightening the screw (2) until it bottoms in the hole.
Tighten the nut (3) against the brake tool until it stops,
indicating that the brakes is now disengaged.
Disengaging the brakes
Screw out the nut again after towing. This returns the
brakes to their normal mode. Screw off the brake tool
and fit it back into its fixing holes. Refit the center plug
(4) to counteract the information of rust inside the
threaded hole.
51
