Eaton 93PR Series User Manual

Name: Eaton 93PR Series
Brand: Eaton
Rating: 5 (1 reviews)

122 pages

To Next Page

To Previous Page

Eaton 93PR 15-80 kW UPS

Installation and Operation Manual

EMI board

Terminal block

Communication

interface

HMI

Battery startup

Power module

Output

switch

Input switch

Grounding screw

Bypass switch

Maintenance bypass switch

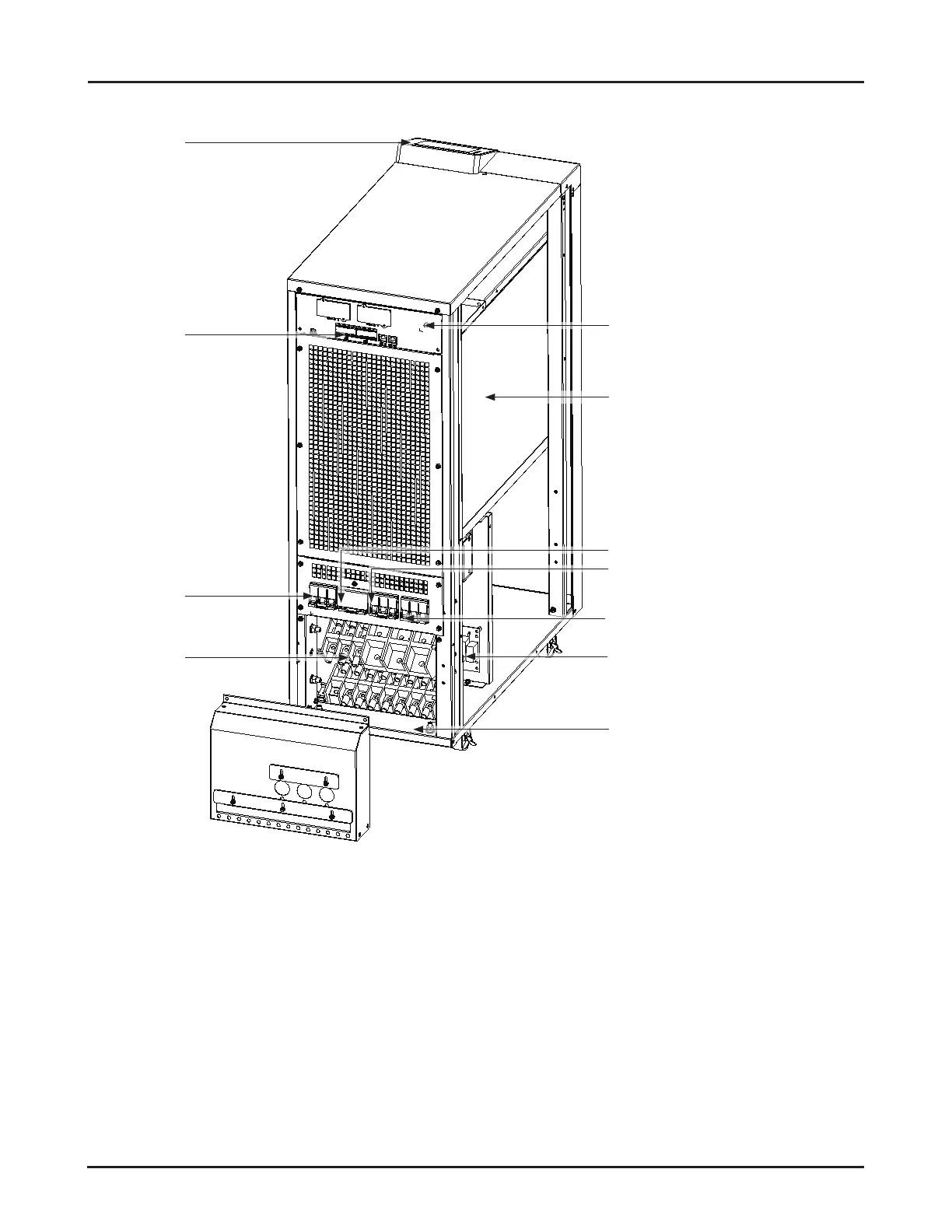

Figure 2-3: Structure of 60-80k product

Other manuals for Eaton 93PR Series

Need help?

Do you have a question about the Eaton 93PR Series and is the answer not in the manual?

General

Series	93PR
Frequency	50/60 Hz
Topology	Double Conversion Online
Operating Temperature	0 to 40 °C (32 to 104 °F)
Humidity	0 to 95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Type	UPS
Input Voltage	380/400/415 V (3-phase + N + PE)
Output Voltage	380/400/415 V (3-phase + N + PE)
Battery Type	Valve-Regulated Lead-Acid (VRLA)
Communication Interface	RS-232, USB, Ethernet, Modbus, SNMP
Form Factor	Tower
