• Industrial Gateway Card
Eaton Industrial Gateway Card is integrated with many functions of SNMP card, for example, the functions
of SNMP agent, HTTP/Web server, and Modbus card. Combined with Building Management System (BMS),
it can provide continuous, reliable and accurate remote monitoring service to the UPS system. The user
can dene remote power-off, uninstallation and other tasks, and receive the system alerts from the UPS in
real-time and remotely.

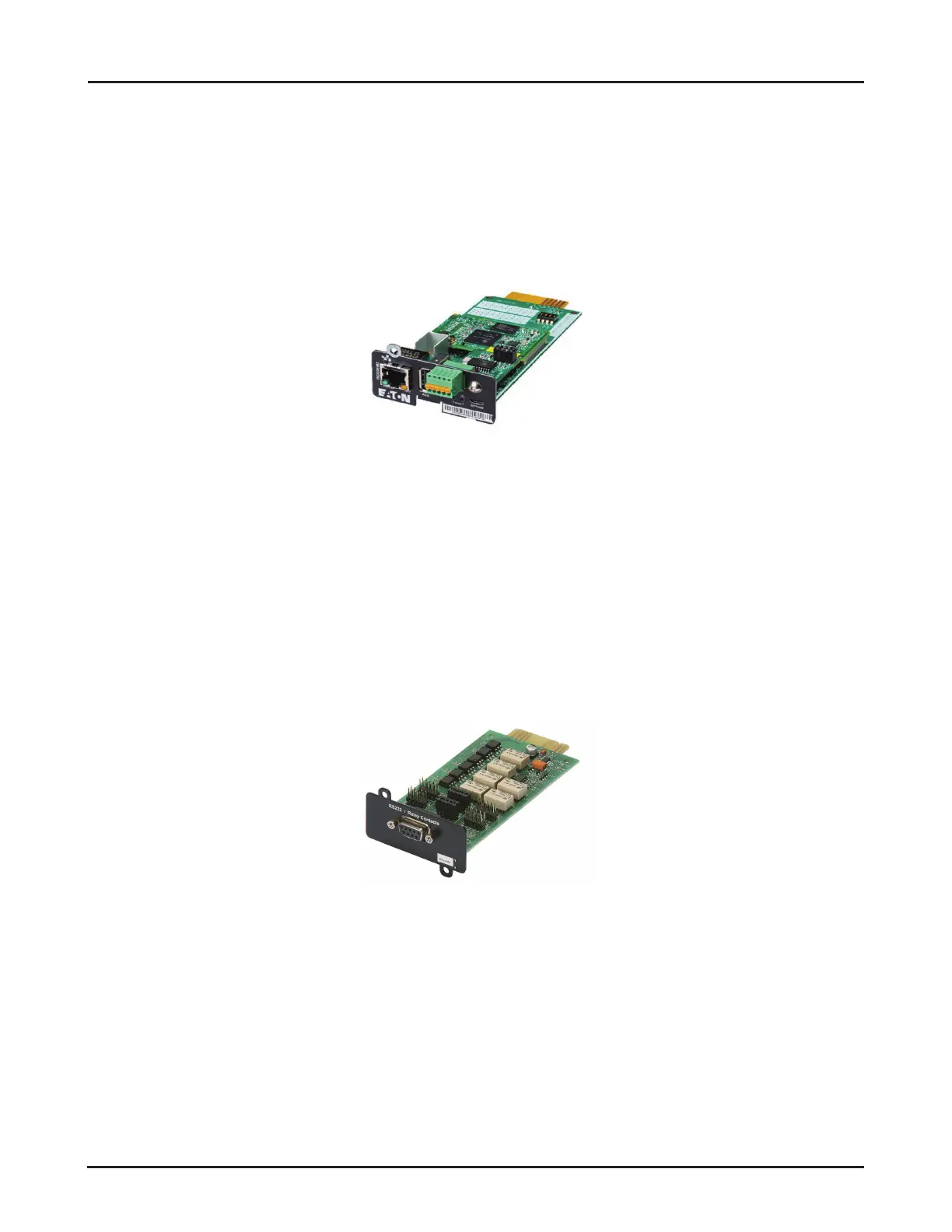

Figure 5-4: Industrial Gateway Card
• Standard AS400/RS232 card
This card provides 2 types of interface through one DB9 port. In dry node mode, the UPS information
is transferred to the alarm system, PLC or computer system simply through the contact of the dry node
relay. The information sent under standard settings include normal operation signal, bypass mode signal,
battery mode signal, AC mains mode signal, and low battery signal. In RS232 mode, a RS232 interface
connecting to the personal computer or UPS control display is provided. A jumper is used to select the
interface (dry contact or RS232).
Figure 5-5: Standard AS400/RS232 card
