Eaton DS7 User Manual

8 SmartWire-DT
8.2 Profiles for DS7-SWD
146 DS7 Soft starter 09/16 MN03901001Z-EN www.eaton.com
8.2 Profiles for DS7-SWD

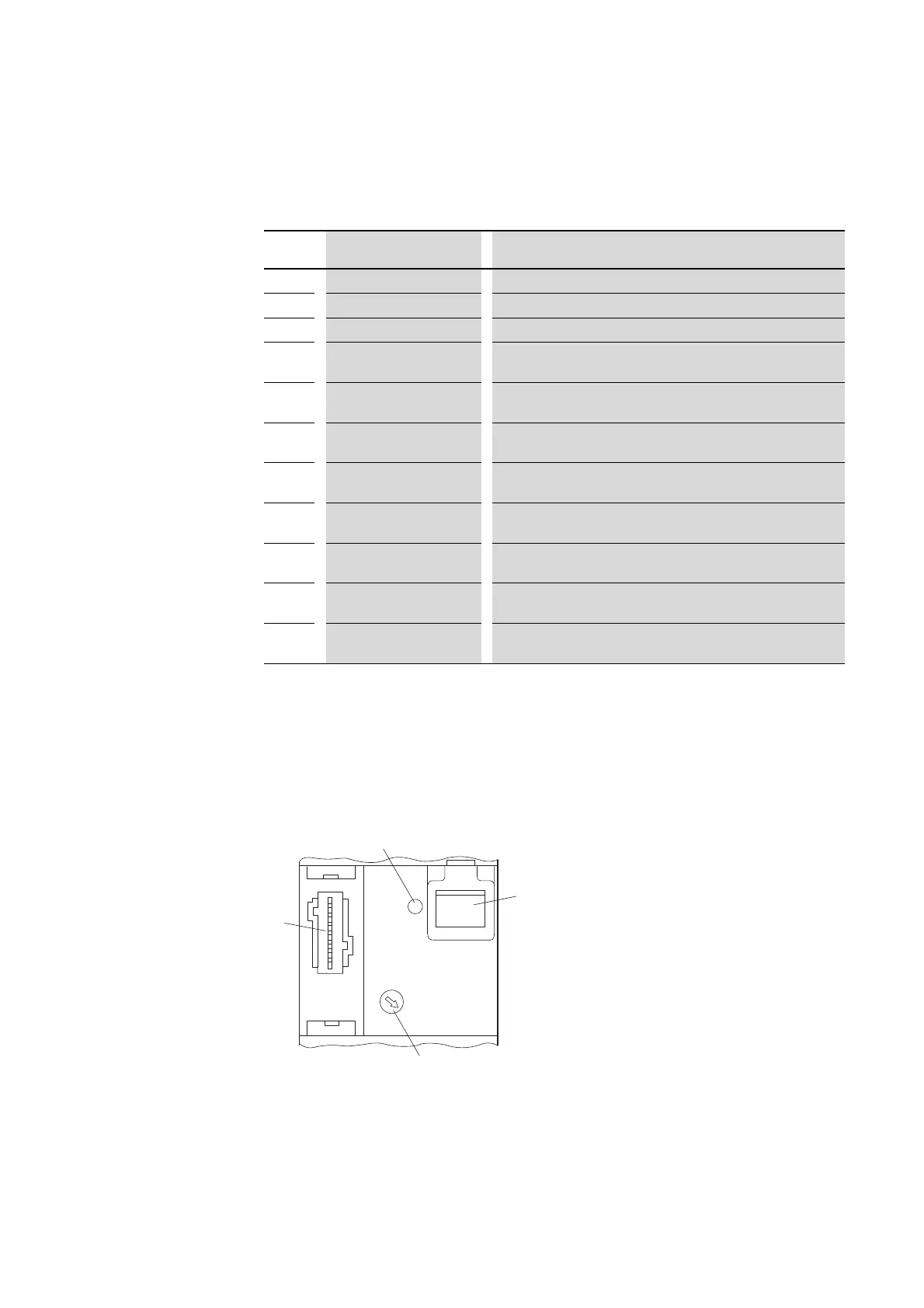

Table 24: Profiles for DS7-SWD soft starters
Acyclic data transfers to DS7-SWD soft starters are possible with all profiles
as per the “Base Mode Parameter Access” profile.
8.3 1-0-A switch
Soft starters belonging to the DS7-SWD series feature a 1-0-A switch that
can be used to manually switch the soft starter on and off.
Figure 114: Control section with mains contactor
a Connection for SmartWire-DT external device plug
b LED: SmartWire-DT diagnostic LED
c Data interface for PKE32-COM
d 1-0-A switch
Profile
Name Description
1 DS7-SWD PKE1 PKE profile 1, start/stop bit for DS7
2 DS7-SWD PKE2 PKE profile 2, start/stop bit for DS7
3 DS7-SWD PKE3 PKE profile 3, start/stop bit for DS7
4 DS7-SWD PKE1-8Bit PKE profile 1, control data for the DS7 in one extra byte (command)
at the end of the frame
5
DS7-SWD PKE2-8Bit PKE profile 2, control data for the DS7 in one extra byte (command)
at the end of the frame
6
DS7-SWD PKE3-8Bit PKE profile 3, control data for the DS7 in one extra byte (command)
at the end of the frame
7
DS7-SWD PKE1-PD 2x16Bit PKE profile 1, control data for the DS7 in two extra words
(one-word command, one-word analog value) at the end of the frame
8
DS7-SWD PKE2-PD 2x16Bit PKE profile 2, control data for the DS7 in two extra words
(one-word command, one-word analog value) at the end of the frame
9
DS7-SWD PKE3-PD 2x16Bit PKE profile 3, control data for the DS7 in two extra words
(one-word command, one-word analog value) at the end of the frame
10
DS7-SWD 8Bit Control data for the DS7 in a single extra byte (command) without
PKE
11
DS7-SWD PD 2x16Bit Control data for the DS7 in two extra words
(one-word command, one-word analog value) without PKE
1A
0
①
④
③
②
