9 Appendix
9.6 Dimensions
228 DS7 Soft starter 09/16 MN03901001Z-EN www.eaton.com
9.6 Dimensions
Size 1

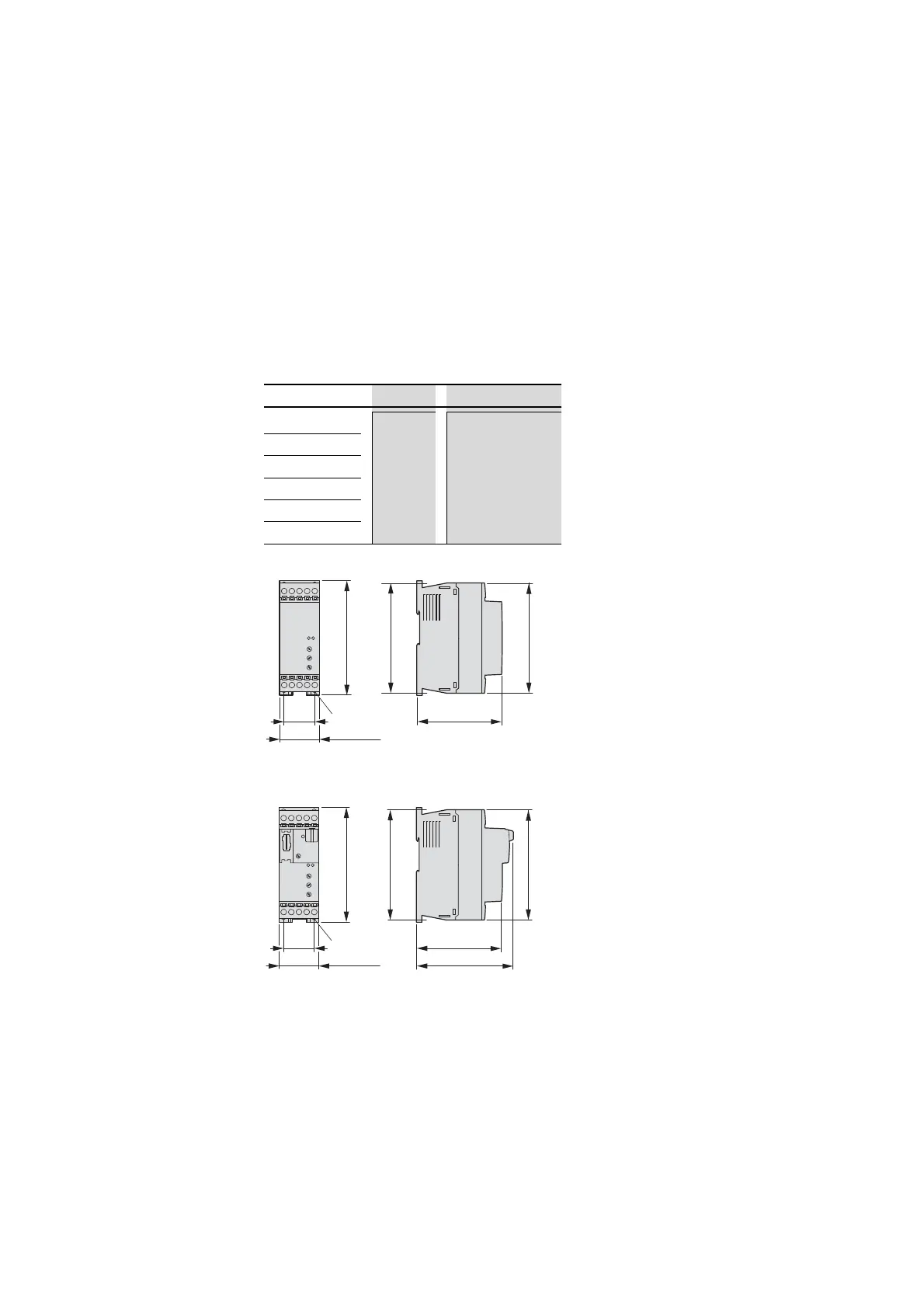

Figure 139:Dimension drawing DS7 without SWD – Size 1 (up to 12 A)
Figure 140:Dimension drawing DS7 with SWD – Size 1 (up to 12 A)
￫
The mounting should take into account the weight and
dimensions of the soft starter. For this use the necessary
technical equipment and tools.
Improper handling, or using the wrong tools, may damage the
soft starter!
DS7-34…SX… ⌀ [mm] Weight [kg]
…003… 4 DS7-340…: 0.3
…004…
DS7-340…: 0.3
…005…
DS7-34D…-D: 0.33
…007…
…009…
…012…
4 x M4
35 mm
(1.38”)
45 mm (1.77”)
130 mm (5.12”)
122 mm (4.80”)
95 mm (3.74”)
125 mm (4.92”)
4 x M4
35 mm
(1.38”)
45 mm (1.77”)
130 mm (5.12”)
122 mm (4.80”)
125 mm (4.92”)
95 mm (3.74”)
103 mm (4.05”)
