9 Appendix
9.6 Dimensions
DS7 Soft starter 09/16 MN03901001Z-EN www.eaton.com 229
Frame size 2

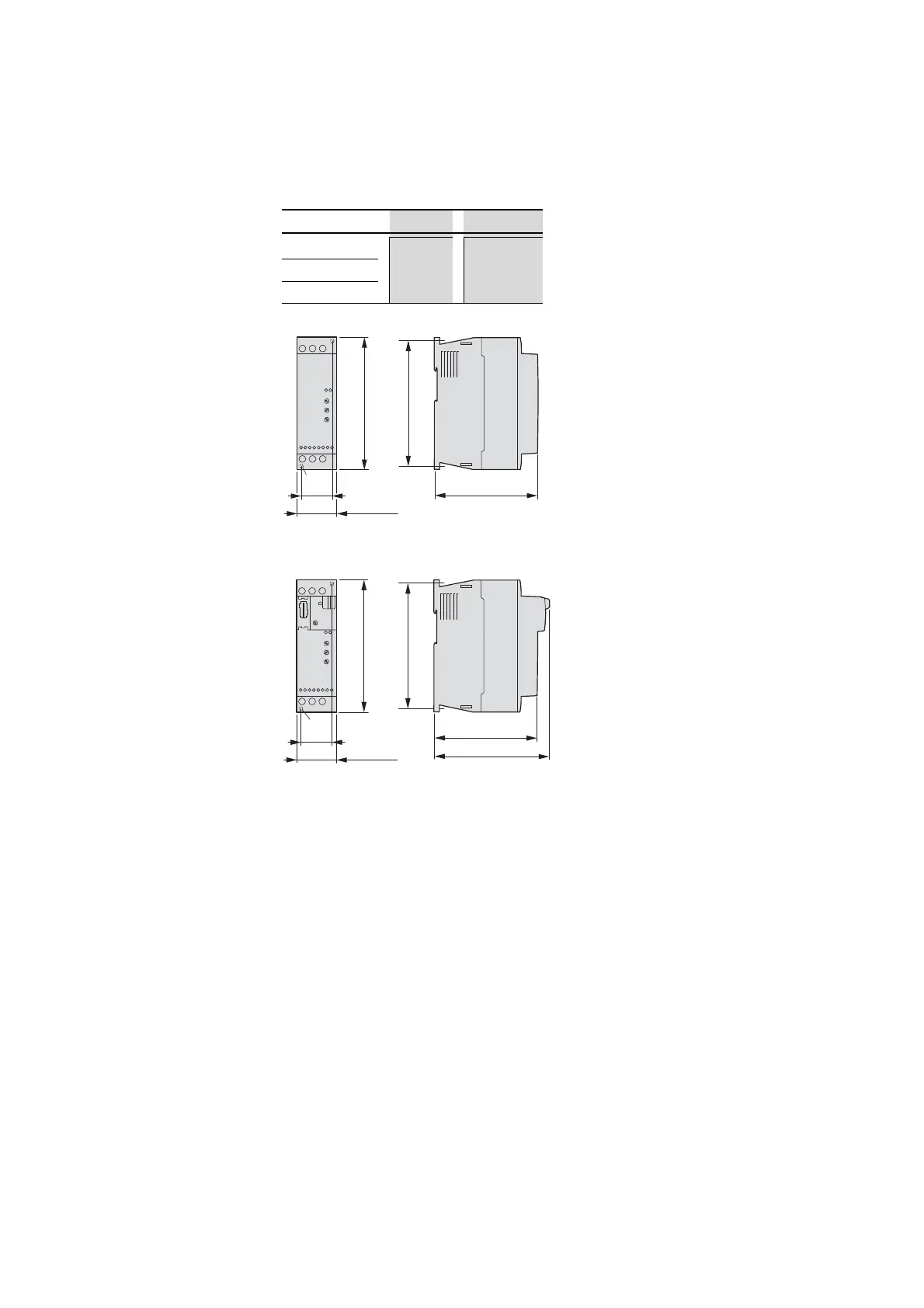

Figure 141:Dimension drawing for DS7 without SWD – Size 2 (16 - 32 A)
Figure 142:Dimension drawing for DS7 with SWD – Size 2 (16 - 32 A)
DS7-34…SX…
⌀ [mm] Weight [kg]
…016… 4 0.4
…024…
…032…
4 x M4
35 mm
(1.38”)
45 mm (1.77”)
150 mm (5.90”) 140 mm (5.51”)
118 mm (4.65”)
2 x M4
35 mm
(1.38”)
45 mm (1.77”)
150 mm (5.90”) 140 mm (5.51”)
118 mm (4.65”)
126 mm (4.96”)
