1.3 System overview
12 DS7 Soft starter 09/16 MN03901001Z-EN www.eaton.com
1.3 System overview

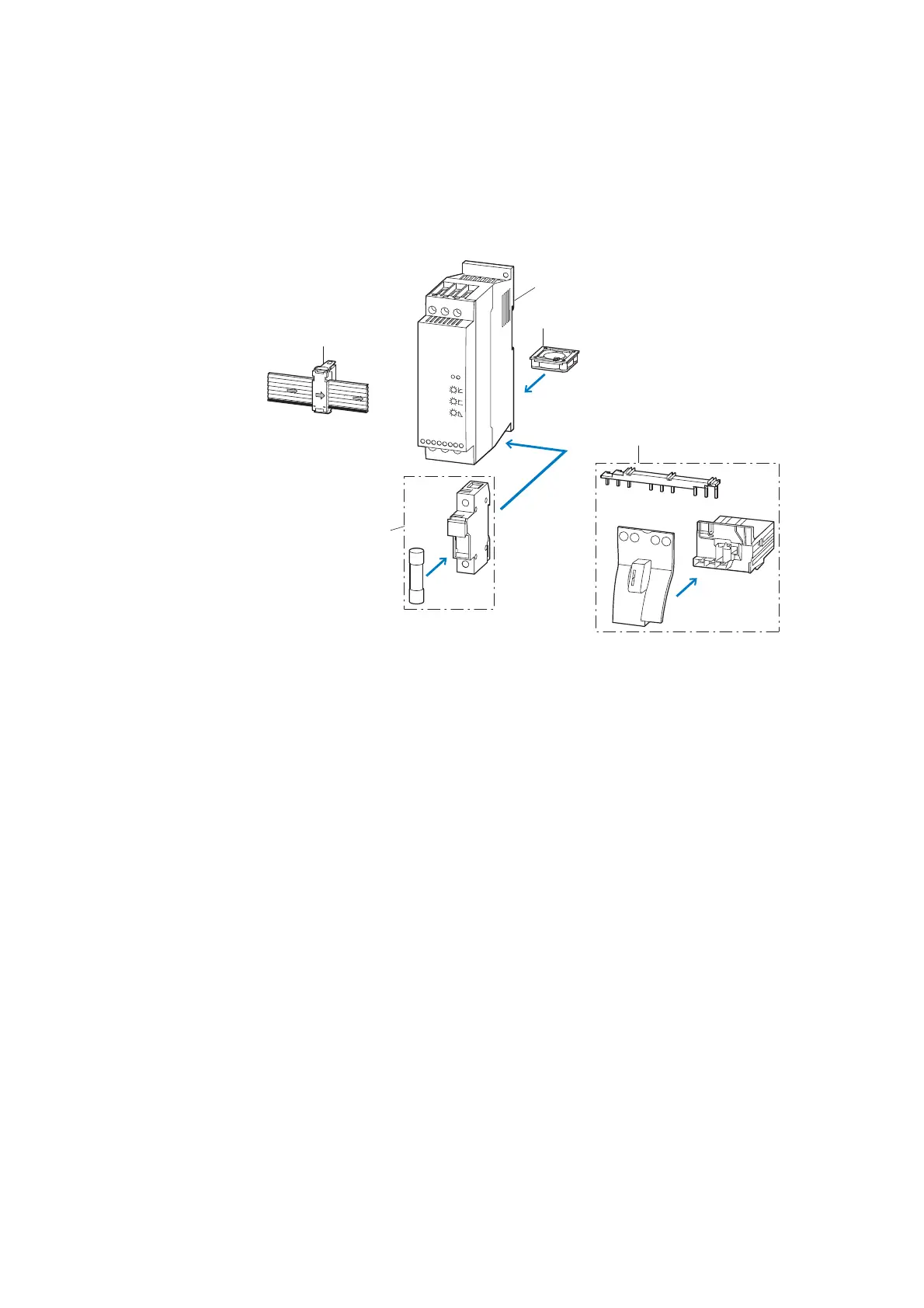

The following figure shows a DS7 soft starter together with (optional)
accessories.
Figure 2: System overview, DS7 soft starters
a DS7 soft starters
b Device fan (DS7-FAN-…)
c Communication System SmartWire-DT
d Mounting accessories
e Superfast semiconductor fuse and fuse base
S
W
D
4
-8
S
F
2
SWD
4-
8S
F
2
-
5
+ 1
5V
S
W
D4
-8
S
F
2
①
②
④
⑤
③

Eaton DS7 Specifications

General

Product type	-
Certification	IEC/EN 60947-4-2, UL 508, CSA22.2-14
Product color	Gray
Protection class	I
International Protection (IP) code	IP20
Input voltage	200 - 480 V
DC input voltage	24 V
AC input frequency (fridge)	50/60 Hz
Sustainability compliance	Yes
Sustainability certificates	CE
Operating temperature (T-T)	-40 - 40 °C

Weight and Dimensions

Weight	1800 g
