Eaton DS7 User Manual

1 Device series DS7
1.5 Key to part numbers
DS7 Soft starter 09/16 MN03901001Z-EN www.eaton.com 15
1.5 Key to part numbers
The soft starters of the DS7 series are assigned part numbers according to
the following key to part numbers:

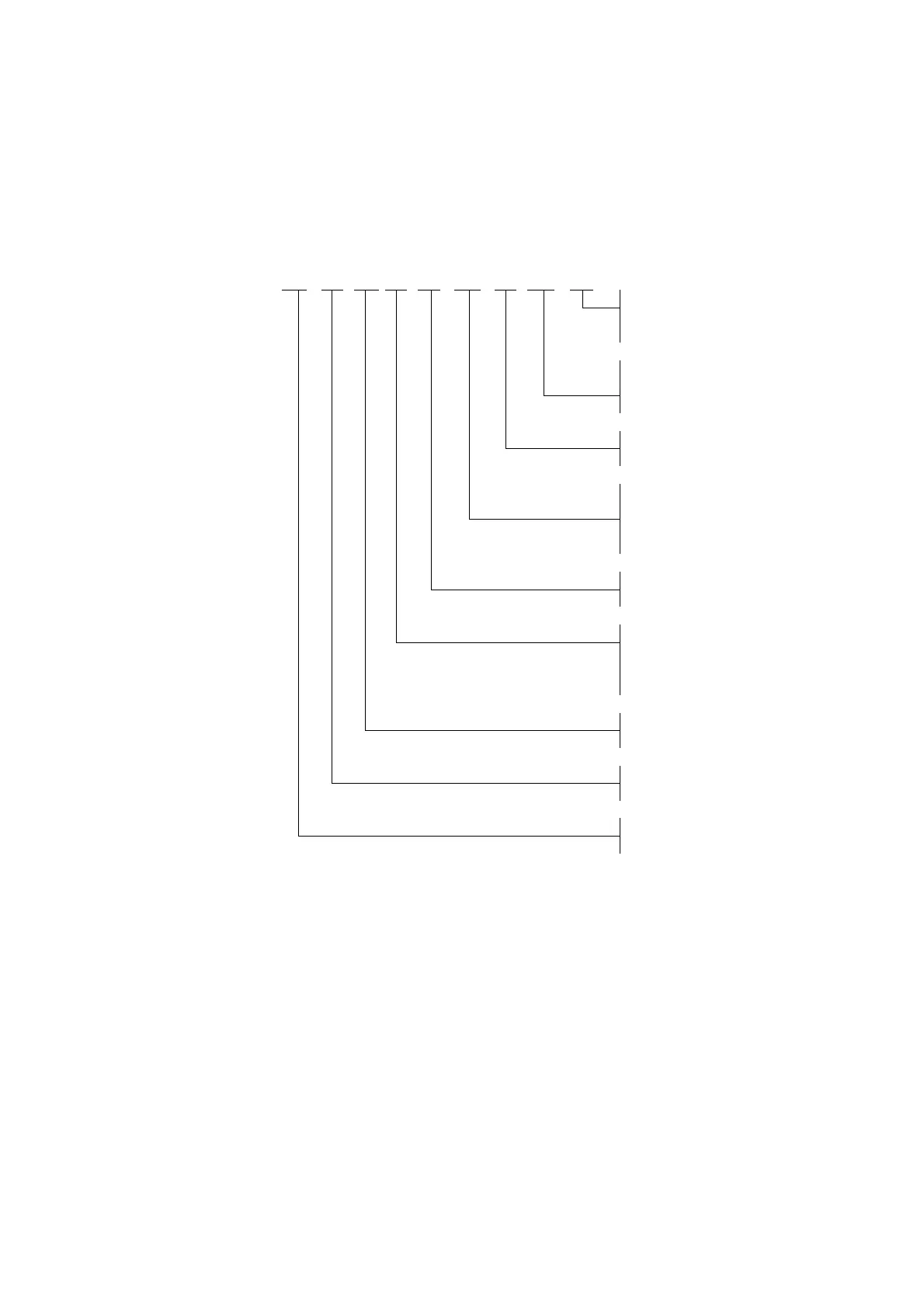

Figure 5: DS7 key to part numbers
DS7 - 3 4 x SX yyy N 0 - z Explanation
Instance:
N = no option
D = SmartWire-DT
Degree of protection:
0 = IP00, IP20, NEMA 0
EMC filter
N = no filter
Rated operational current I
e
:
Examples: 004 = 4 A
012 = 12 A
200 = 200 A
Device version:
SX = Standard soft starter with internal bypass relay
Control voltage and Control signals:
D = 24 V DC
0 = 24 V AC/DC
2 = 120/230 V AC
Mains supply voltage:
4 = 400 V (200 – 480 V)
Supply phases:
3 = three-phase incoming unit
Soft starter series:
Drives motor starter, Generation 7

Eaton DS7 Specifications

General

Product type	-
Certification	IEC/EN 60947-4-2, UL 508, CSA22.2-14
Product color	Gray
Protection class	I
International Protection (IP) code	IP20
Input voltage	200 - 480 V
DC input voltage	24 V
AC input frequency (fridge)	50/60 Hz
Sustainability compliance	Yes
Sustainability certificates	CE
Operating temperature (T-T)	-40 - 40 °C

Weight and Dimensions

Weight	1800 g
