Eaton DS7 User Manual

3 Installation
3.4 Electrical Installation
DS7 Soft starter 09/16 MN03901001Z-EN www.eaton.com 87
3.4.8 Relay contacts
The soft starters of the DS7 series are provided with one or two relays with
an N/O contact depending on the current range. The relays are galvanically
isolated from the power section.
Table 16: Relay contacts
In applications in which the relay contacts (TOR, RUN / READY) control
external contactors, the contactor coil must be connected in order to
increase interference immunity:
• for AC voltage with an RC filter,
• for DC voltage with free-wheel diode.
The illustration below shows the operating points for the Run signals at relay
contacts TOR (13/14) and RUN (23/24).
Relays (Control
signal terminal)
Designation Function
13/14
or -A2/13
TOR Top-of-ramp: Signals operation with full voltage on the motor
(top of start ramp reached; set time t-Start elapsed).
23/24
RUN/ READY Operating signal during ramp time (t-Start, t-Stop), as well as during
continuous operation (= TOR)
Default setting: RUN
Note:
This relay is only installed in devices of sizes 2, 3 and 4.
AC-version DC-version

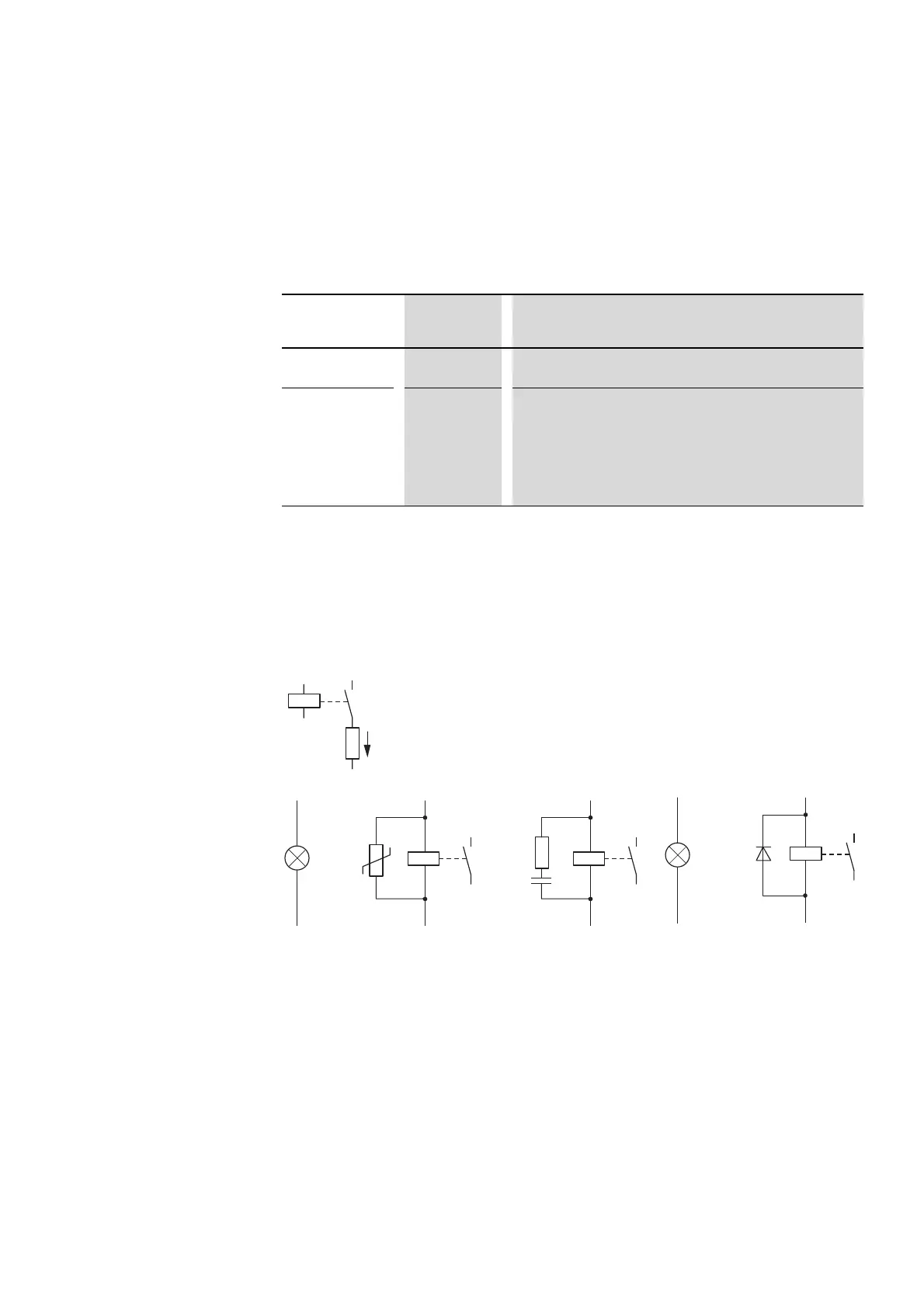

Figure 66: Relay contacts with permissible load and recommended connection
TOR, RUN/READY
3
4
ACAC AC
(+)
(-)
DCDC

Eaton DS7 Specifications

General

Product type	-
Certification	IEC/EN 60947-4-2, UL 508, CSA22.2-14
Product color	Gray
Protection class	I
International Protection (IP) code	IP20
Input voltage	200 - 480 V
DC input voltage	24 V
AC input frequency (fridge)	50/60 Hz
Sustainability compliance	Yes
Sustainability certificates	CE
Operating temperature (T-T)	-40 - 40 °C

Weight and Dimensions

Weight	1800 g
