3 Installation
3.3 Flush mounting in control panel
DS7 Soft starter 09/16 MN03901001Z-EN www.eaton.com 71
3.3.2.3 Surface mounting on mounting rail
Place the DS7 soft starter onto the mounting
rail from above [1], push down [2] and let it
snap into position.
Removing it requires using a little force from
above:
In order to remove the soft starter, pull the
lower housing edge forward and lift the soft
starter upwards and off the mounting rail.

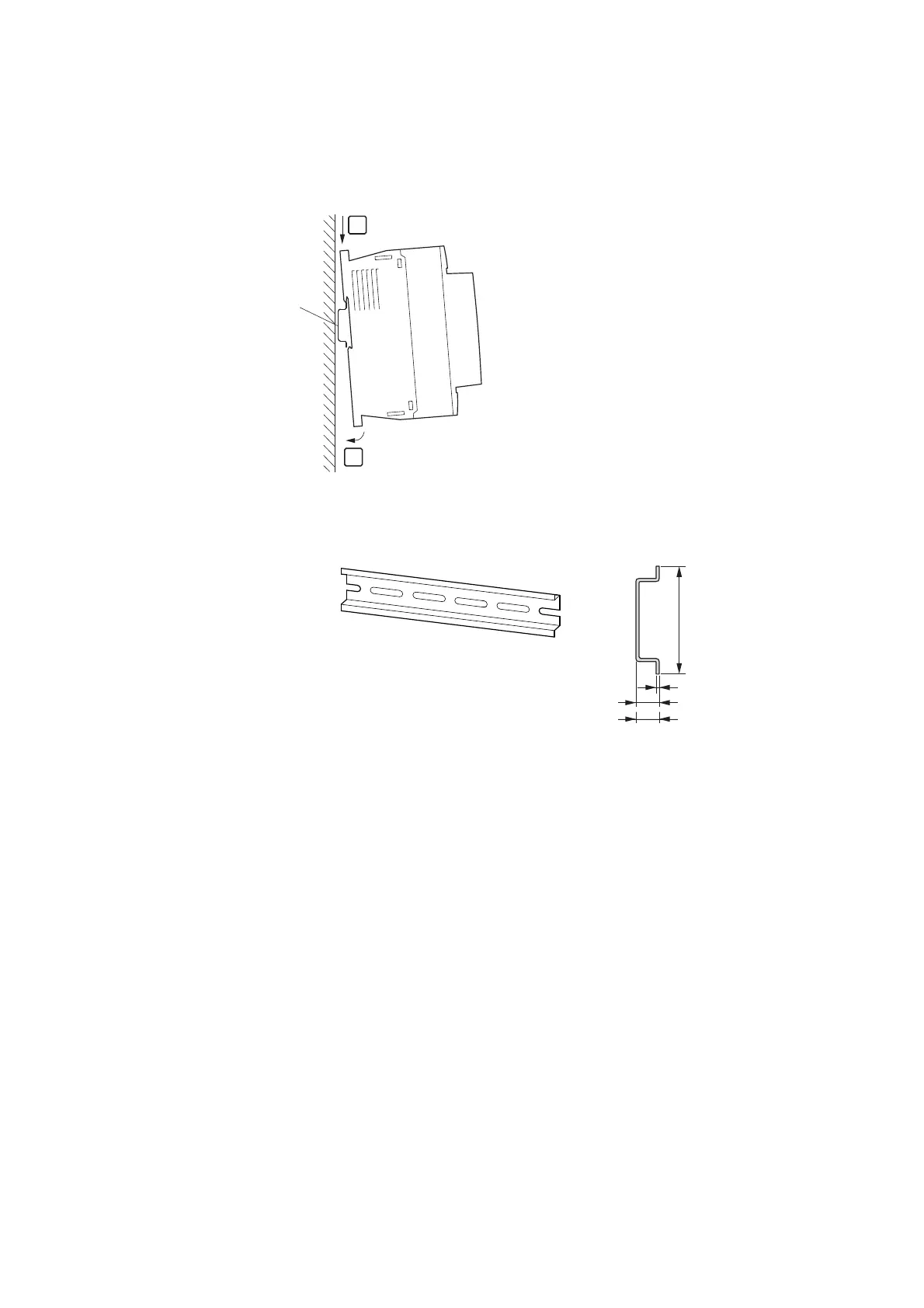

Figure 53: Fixing to the mounting rail
①
Figure 54: Mounting rail conforming with IEC/EN 60715
1
2
a
