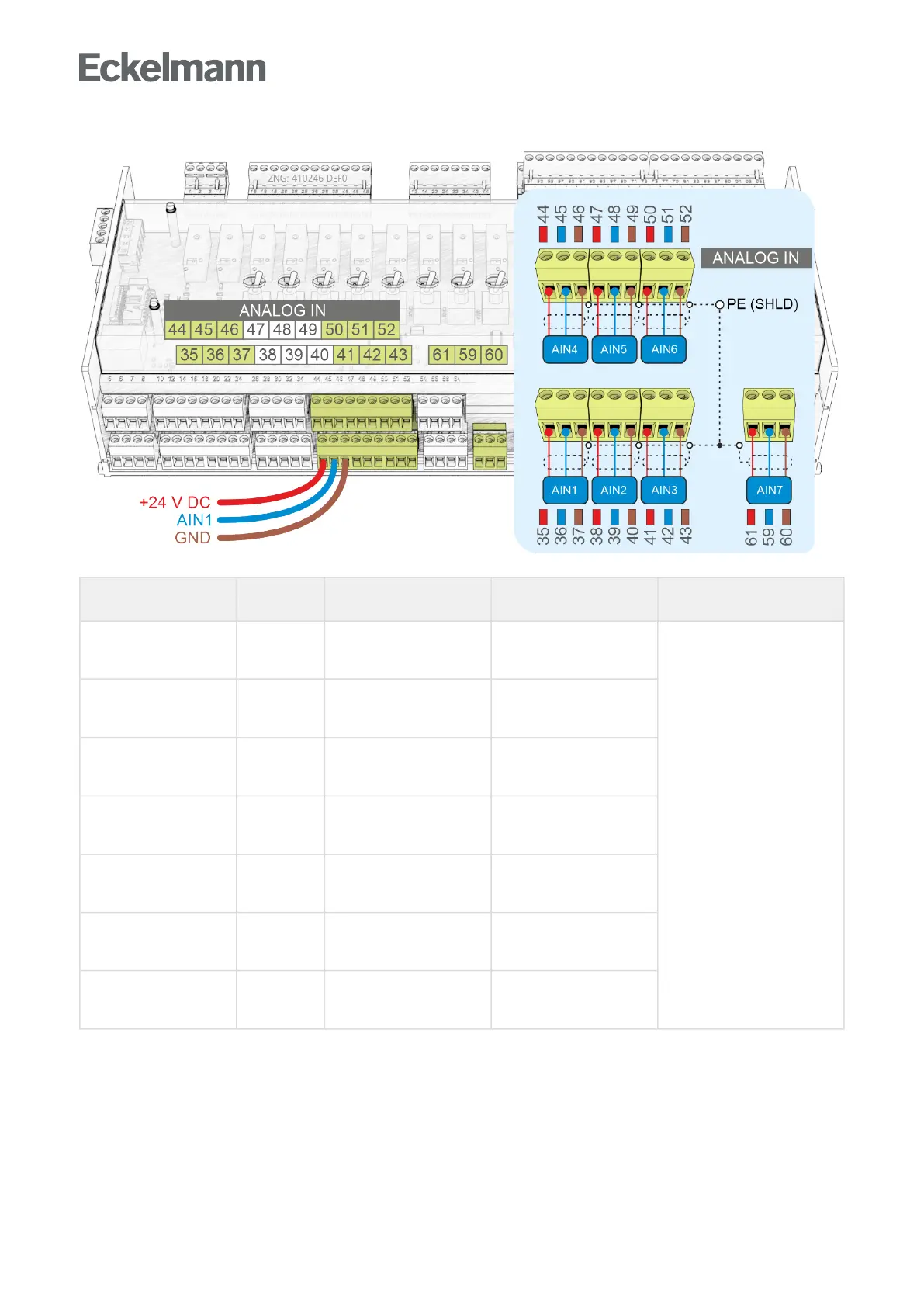

Analogue inputs (AIN1..7)
AIN
Terminal No.
I/O
No.
Address in the
process image
Assignment
at the factory
Function
35
36
37
1 IW42 +24 V
0..10 V
GND
Freely programmable
38
39
40
2 IW43 +24 V
0..10 V
GND
41
42
43
3 IW44 +24 V
0..10 V
GND
44
45
46
4 IW45 +24 V
0..10 V
GND
47
48
49
5 IW46 +24 V
0..10 V
GND
50
51
52
6 IW47 +24 V
0..10 V
GND
61
59
60
7 IW48 +24 V
4..20 mA
GND
For details, see chapter Configuration of the analogue inputs and outputs.
