3 System design GLT x010
Base module GLT 3010 / GLT 5010

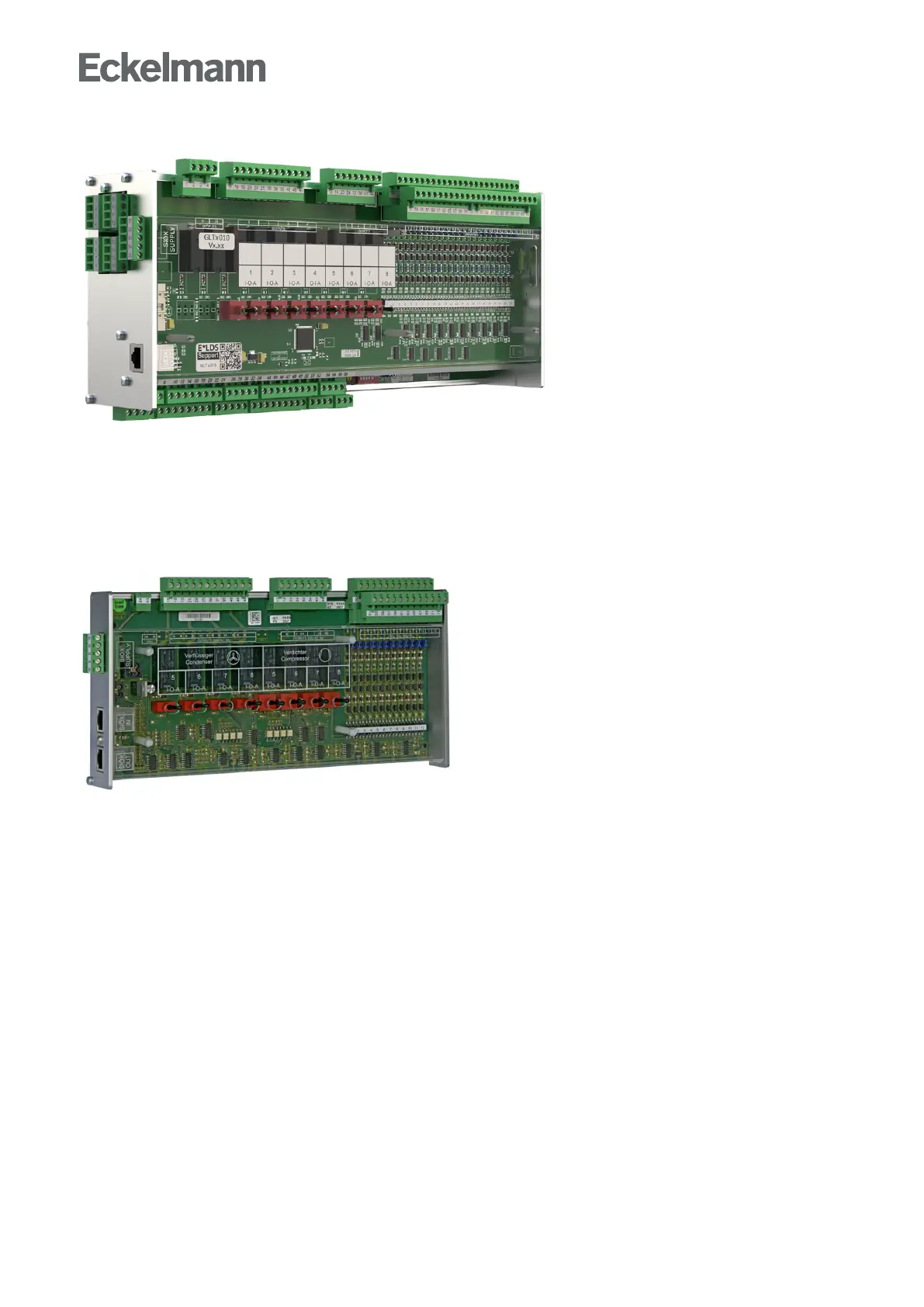

The freely programmable Compact GLT x010 is available in the GLT 3010 and GLT 5010 versions. They have
the same hardware, they only differ in their firmware, see chapter GLT x010 models. The base module consists
of an analogue input/output module (lower board) and a digital input/output module (upper board). The
interfaces for communication are located on the left side, for details see chapter Connections. The controller is
a modular design and can be extended with a maximum of 3 SIOX extension modules, see chapter SIOX
Extension Module.
SIOX Extension Module
The controller can be programmed with the programming system CODESYS according to IEC61131-3 and
operated and parametrised with the LDSWin PC software.
