9.1.1 Mounting on the DIN rail

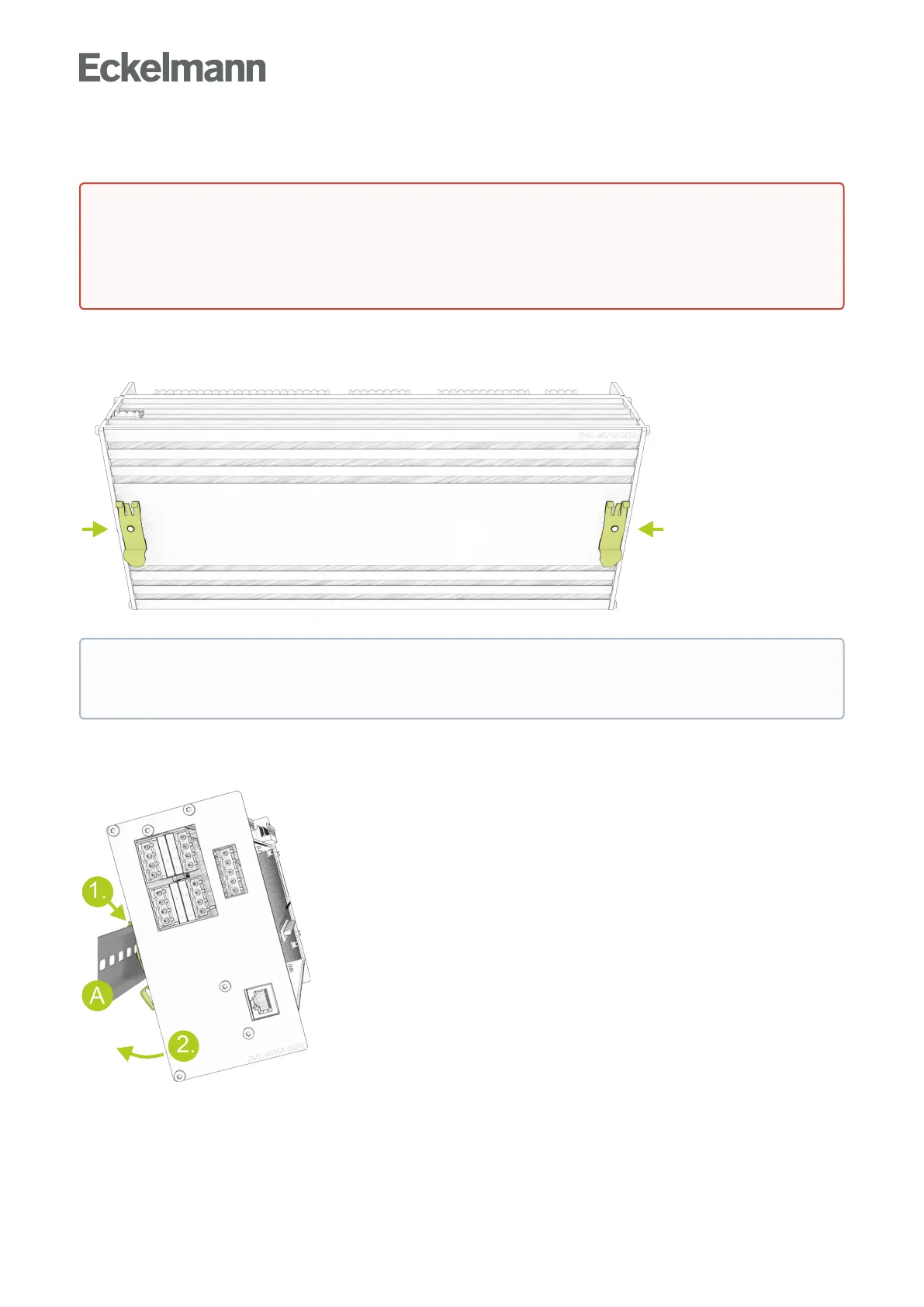

Step 1: Underside of the controller (with mating connectors removed) with the two claws for mounting:
Step 2:Placethecontrollerontheupperedge(1.) of the DIN rail (A) and swivel it downwards (2.) until the
controller snaps firmly onto the DIN rail.

DANGER
Warning about dangerous electrical voltage! Danger of electric shock!Thesafetyregulationsand
work safety instructions mustbeobservedforthemounting.All plug connectors may only be inserted
and removed when the power supply is disconnected, see chapter Handhabung breiter COMBICON-
Stecker.

In order to ensure mounting / removal, a clearance of at least 30 mm to the next component (e.g. cable
duct) must be maintained underneath the controller.
Note:TheDINrail(35mm)musthaveaheightofatleast5mm.

