ECKELMANN Compact GLT 3010 - Assignment RS232 and TTY



Firmware: V2.18 / V--
26.10.2022
106/119
•
•
•
10.4.2 Assignment RS232 and TTY

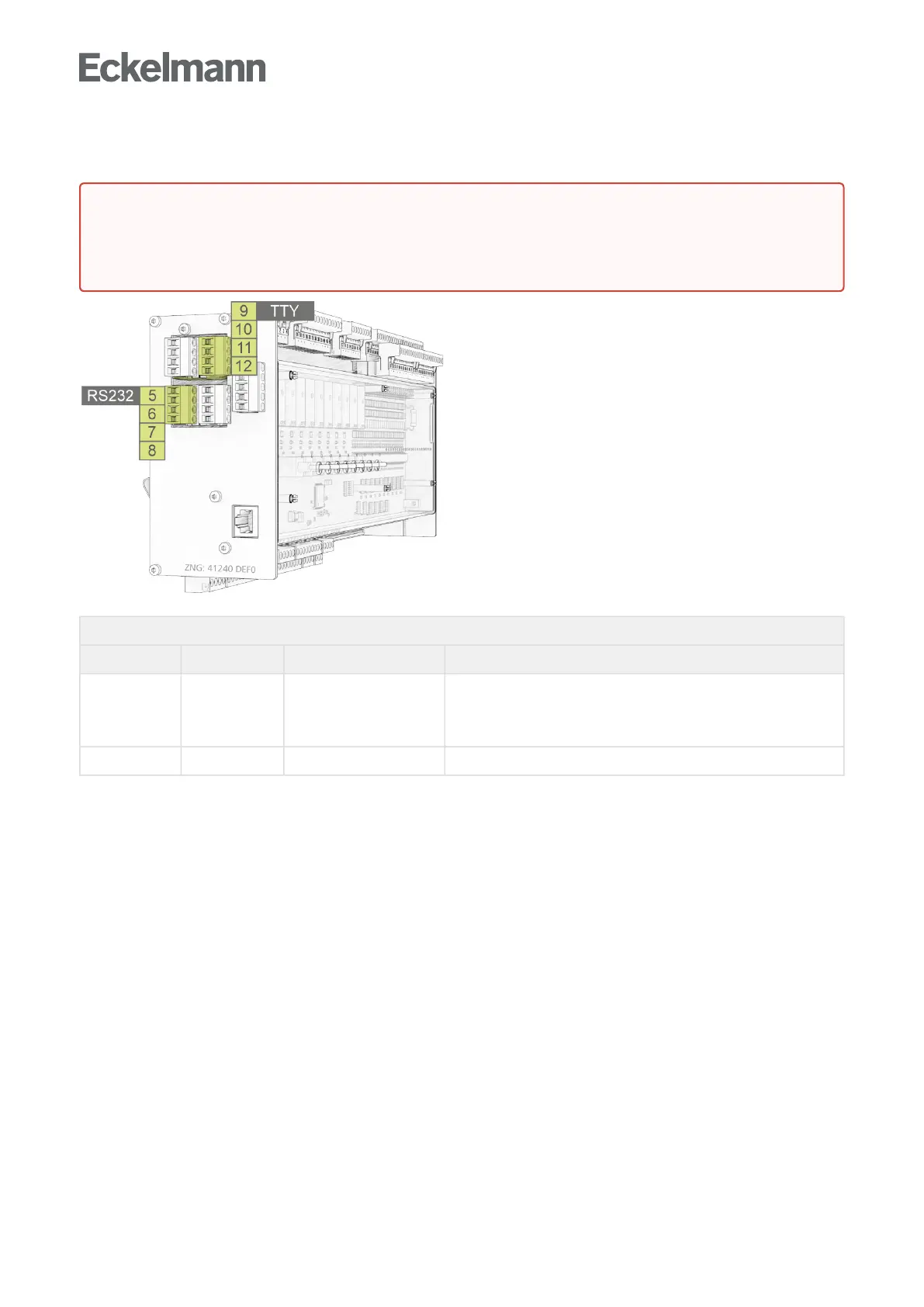

RS232andTTYonthebasemodule
Description Terminal No. Connection Function
RS232 5, 6, 7, 8 TxD, RxD, RTS, CTS TxD, RxD: Coupling with notebook or PC (CODESYS), for
details about connecting the controller see chapter
Requirements for firmware update
RTS, CTS: not used
TTY 9, 10, 11, 12 TxD+, TxD-, RxD+, RxD- not used
For details, see chapter Setting of the interfaces RS485/TTY using jumper J1.
DANGER
Warning about dangerous electrical voltage! Danger to life - Danger of electric shock! BEFORE
connecting and disconnecting, it must be ensured that no voltage is present at all connections of the
controller.

