5.3.4 Number of SIOX extension modules
The number of SIOX extension modules connected to the controller is defined in the controller configuration.
The minimum number is 0 (i.e. no SIOX) and the maximum number is 3:

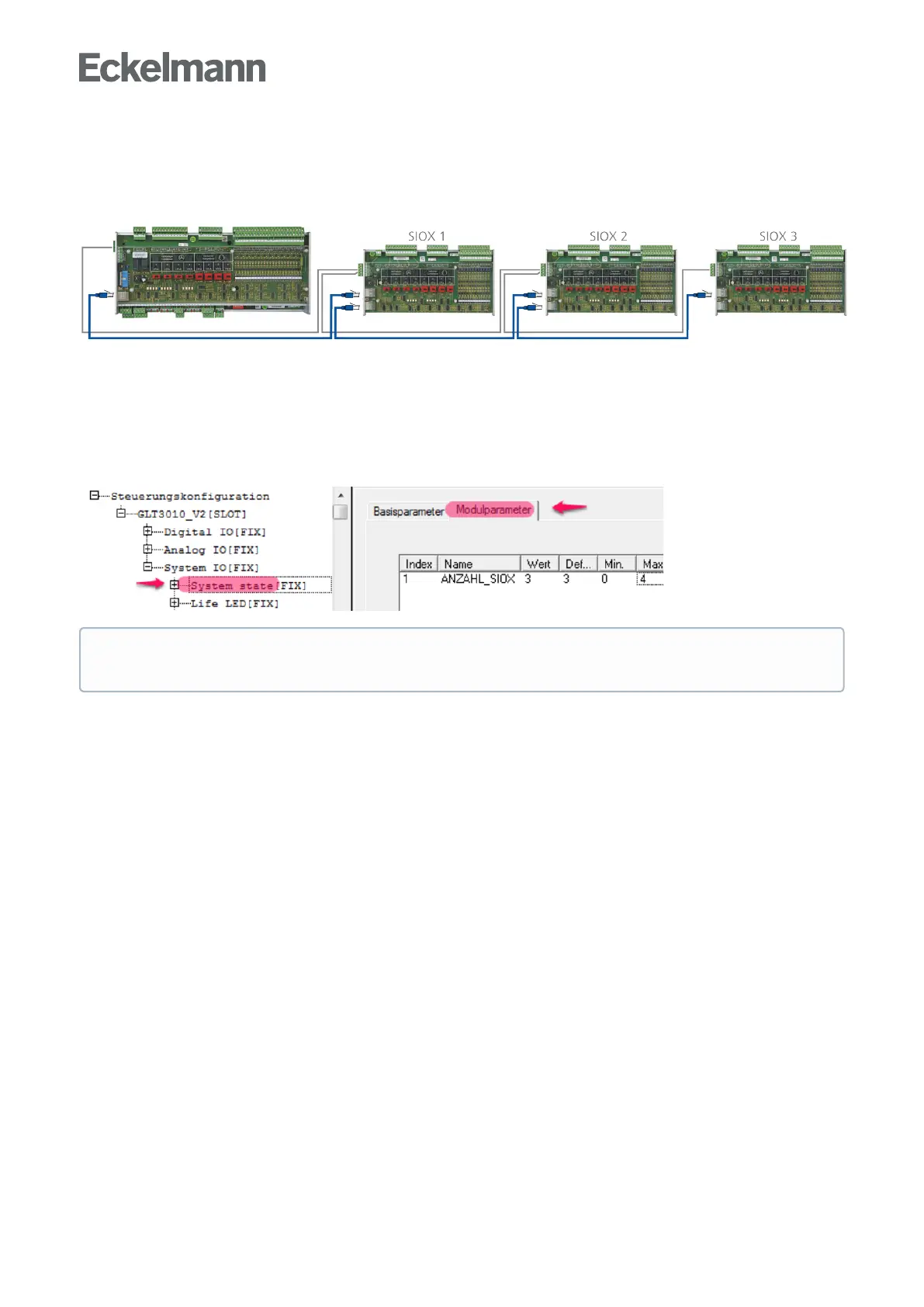

Base module GLT x010 in full expansion with max. 3 SIOX extension modules, for details, see chapter SIOX
Extension Module.
The number of SIOX extension modules is configured in the "Module parameters" tab (see also Controller
configuration). The selection can be found as follows: Controller configuration → GLT3010_V2 → System IO →
System state [FIX]. There, select "Module parameters" on the right-hand side and enter the desired number of
SIOX extension modules in the "Value" column. The factory default value is 3, see column "Default":
If fewer SIOX extension modules than entered under "Value" are connected to the base module (or
one of them fails during operation), the system alarm "Failure ext. SIOX x" is triggered.
