14.2 Mechanische Daten GLT x010

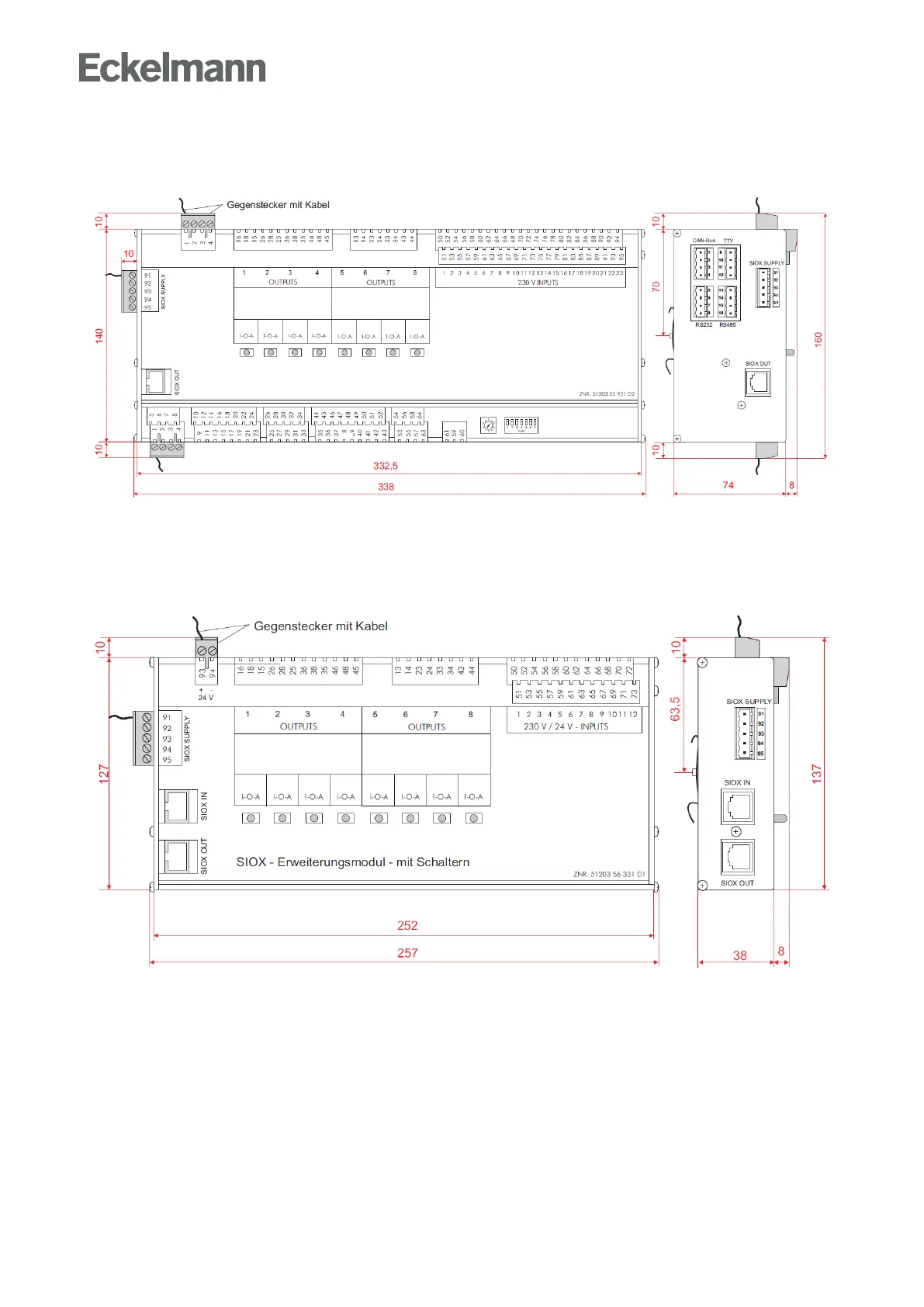

Basic module with manual switch, all dimensions in mm.

14.3 Mechanical Data SIOX Extension Module

SIOXExtensionModulewithmanualswitch,alldimensionsinmm.
