SIOX extension module connections

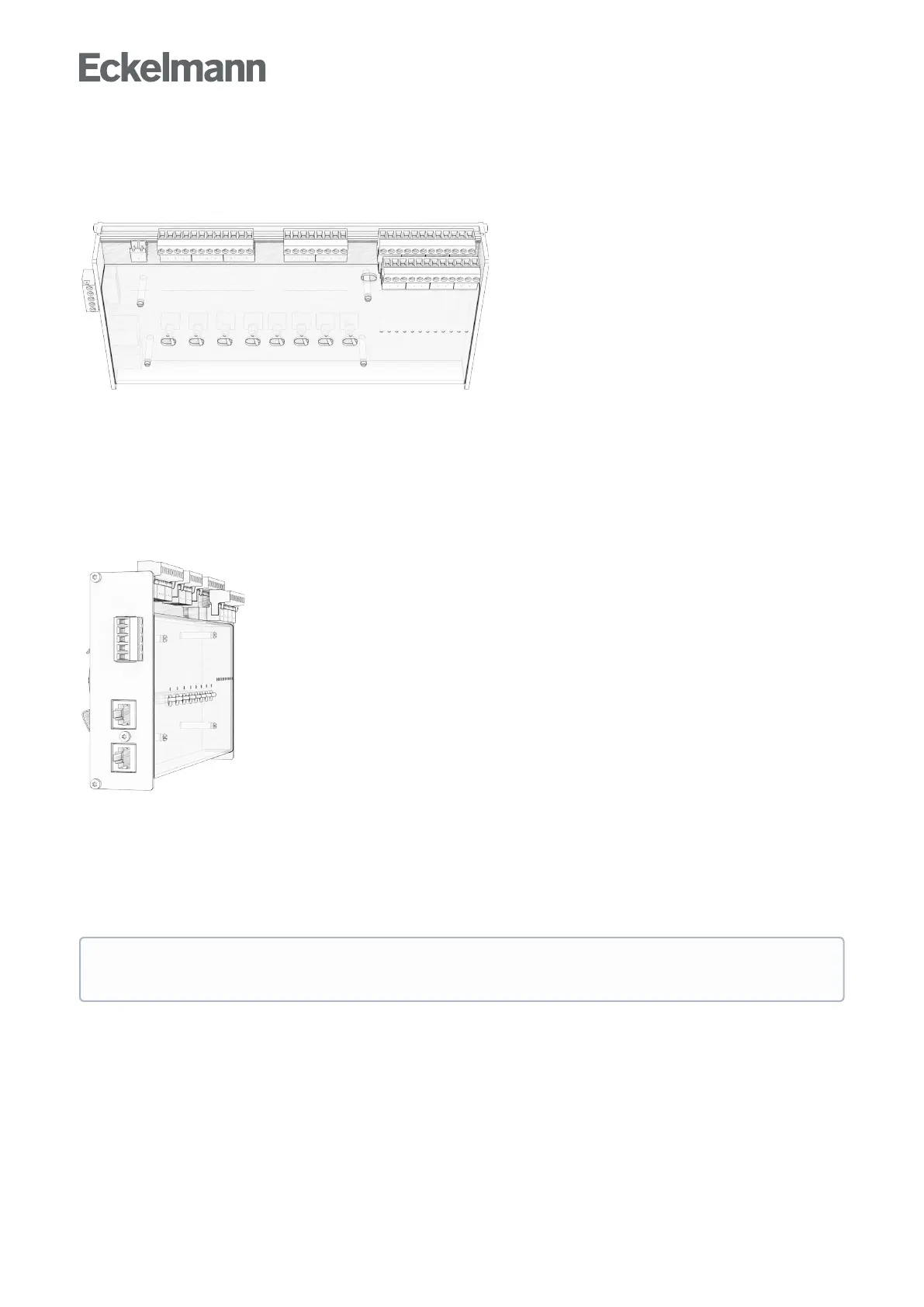

Top view - for details, see Connectionsfor230VAC(top)
Digital inputs
12 x input 230 V AC / 24 V AC/DC
Relay outputs
6 x normally open contact 230 V AC
4 x changeover contact 230 V AC
Side view - for details, see Connections for interfaces (on the side)
Interfaces
SIOX IN: connection for data transfer to the base module
SIOX OUT: connection for data transfer to the SIOX extension modules
SIOX Supply
power supply for SIOX extension modules
The detailed device and terminal assignments of the controller GLT 3010 E are listed in the chapter
Connection and terminal assignment GLT x010 / SIOX.
