ECKELMANN Compact GLT 3010

To Next Page

To Previous Page



Firmware: V2.18 / V--

26.10.2022

62/119

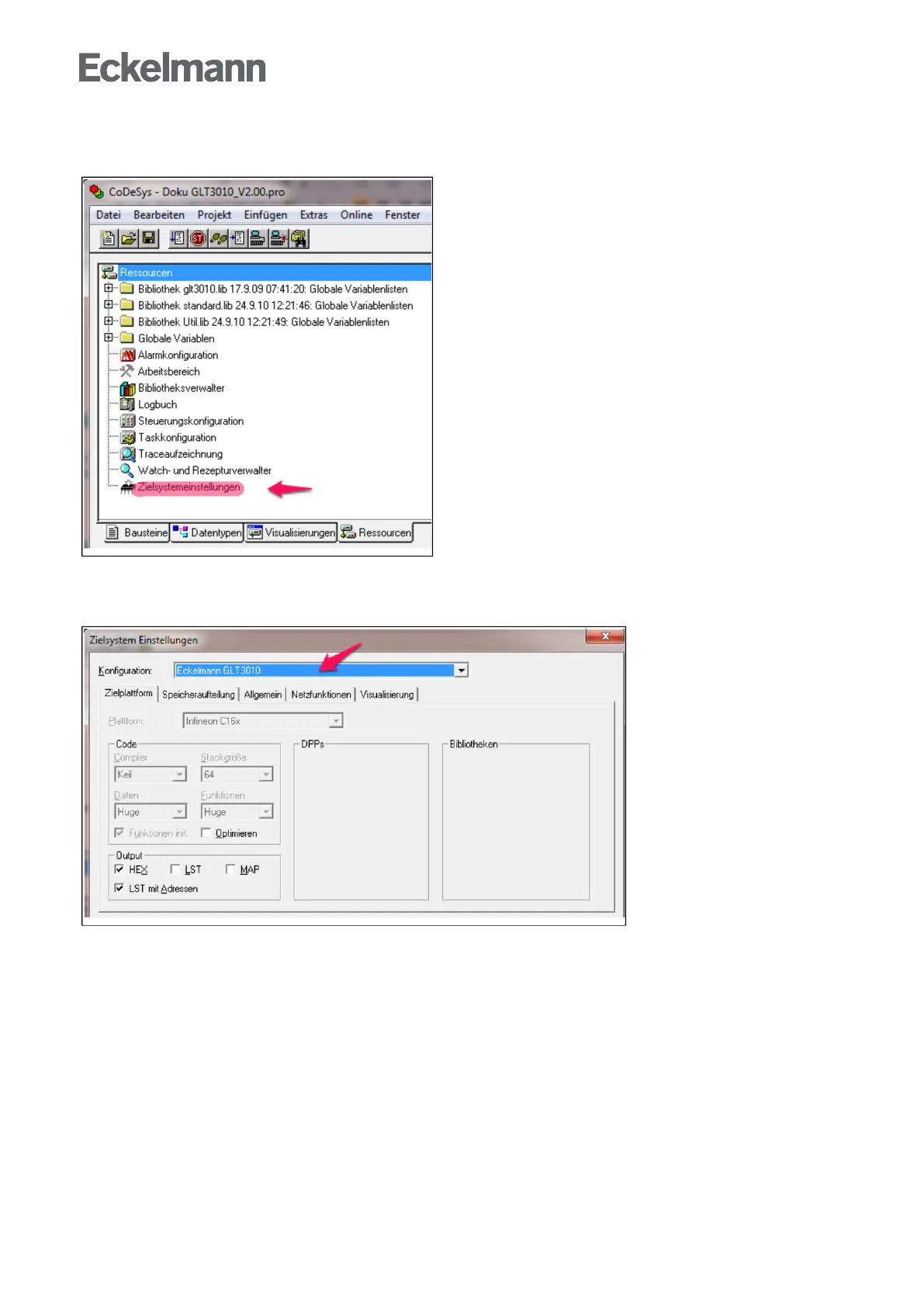

2. The view of the resources opens. Double click there on "Target system settings":

3. "Eckelmann GLT 3010" must be selected as target system in the configuration:
