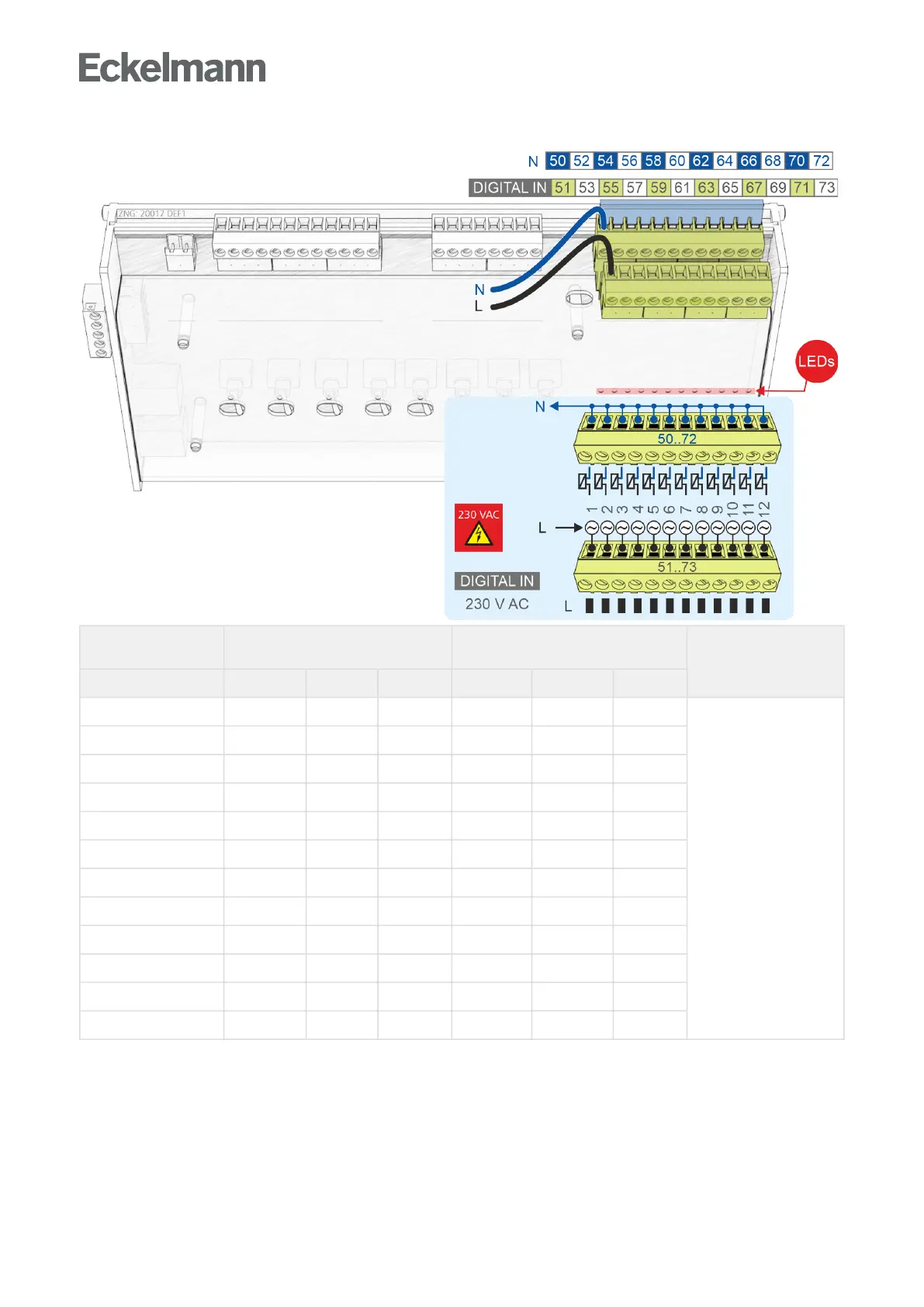

Assignment of the digital inputs on the SIOX extension module
Digital input
Terminal No.
I/O
No.
Address in the
process image
Function
SIOX 1..3 SIOX 1 SIOX 2 SIOX 3 SIOX 1 SIOX 2 SIOX 3
50, 51 25 37 49 IX2.0 IX4.0 IX6.0 Freely programmable
52, 53 26 38 50 IX2.1 IX4.1 IX6.1
54, 55 27 39 51 IX2.2 IX4.2 IX6.2
56, 57 28 40 52 IX2.3 IX4.3 IX6.3
58, 59 29 41 53 IX2.4 IX4.4 IX6.4
60, 61 30 42 54 IX2.5 IX4.5 IX6.5
62, 63 31 43 55 IX2.6 IX4.6 IX6.6
64, 65 32 44 56 IX2.7 IX4.7 IX6.7
66, 67 33 45 57 IX2.8 IX4.8 IX6.8
68, 69 34 46 58 IX2.9 IX4.9 IX6.9
70, 71 35 47 59 IX2.10 IX4.10 IX6.10
72, 73 36 48 60 IX2.11 IX4.11 IX6.11
