ECKELMANN Compact GLT 3010 - Page 97



Firmware: V2.18 / V--
26.10.2022
97/119

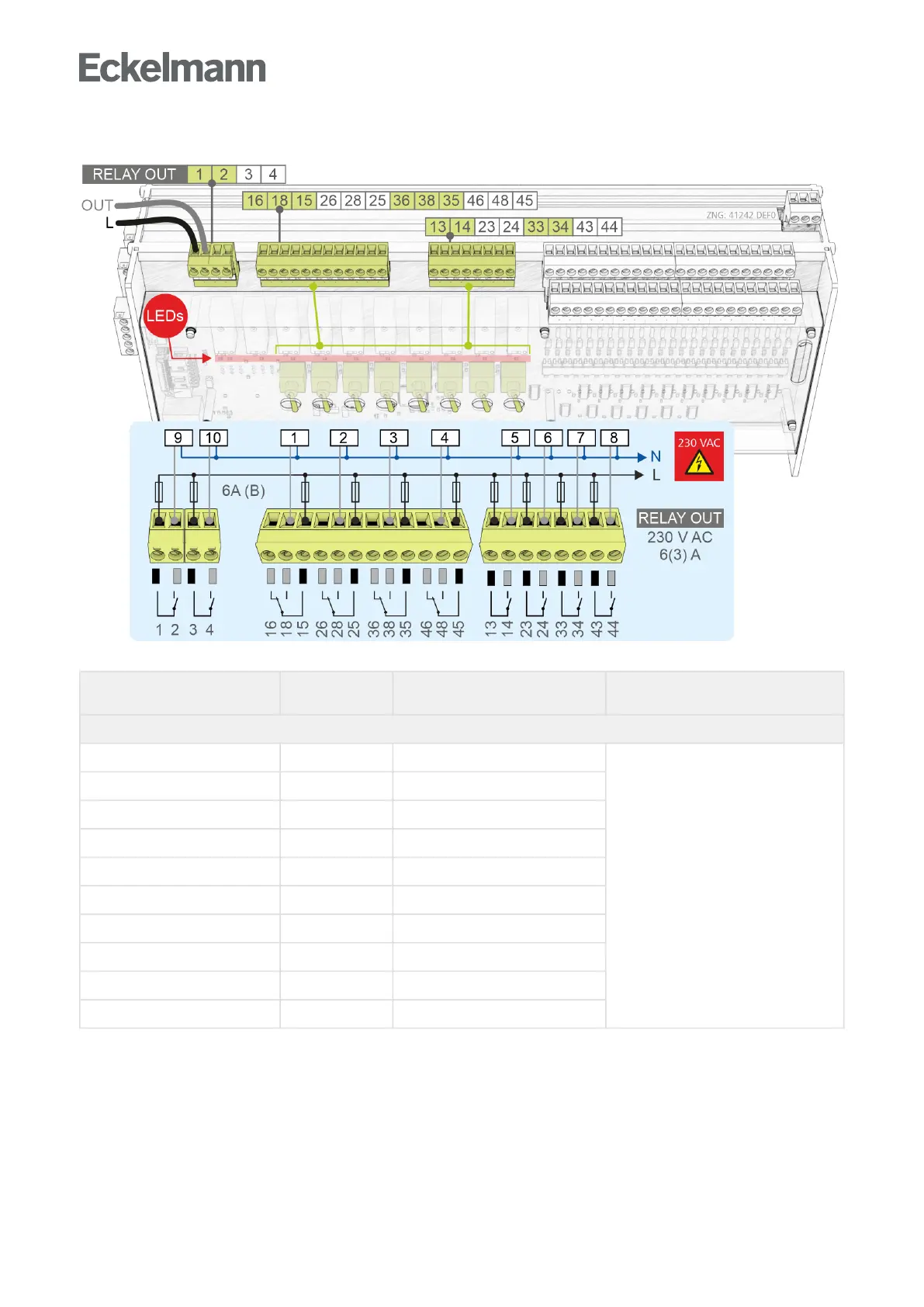

Relay outputs on the base module
Terminal assignment of the relay outputs
Terminal No. I/O
No.
Address in the
process image
Function
Base module
16, 18, 15 1 QX0.0 Freely programmable
26, 28, 25 2 QX0.1
36, 38, 35 3 QX0.2
46, 48, 45 4 QX0.3
13, 14 5 QX0.4
23, 24 6 QX0.5
33, 34 7 QX0.6
43, 44 8 QX0.7
1, 2 9 QX0.8
3, 4 10 QX0.9
