Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual
CAUTION ▶
This ceiling unit is very heavy (over 150kg), so you need a specialized lift or 5+ people to lift it up
together.
Be careful not to have any safety issue – possible to meet accident during the lift because the unit
must be installed at overhead height..!!!
5.11.4.6 X-ray tube assembly

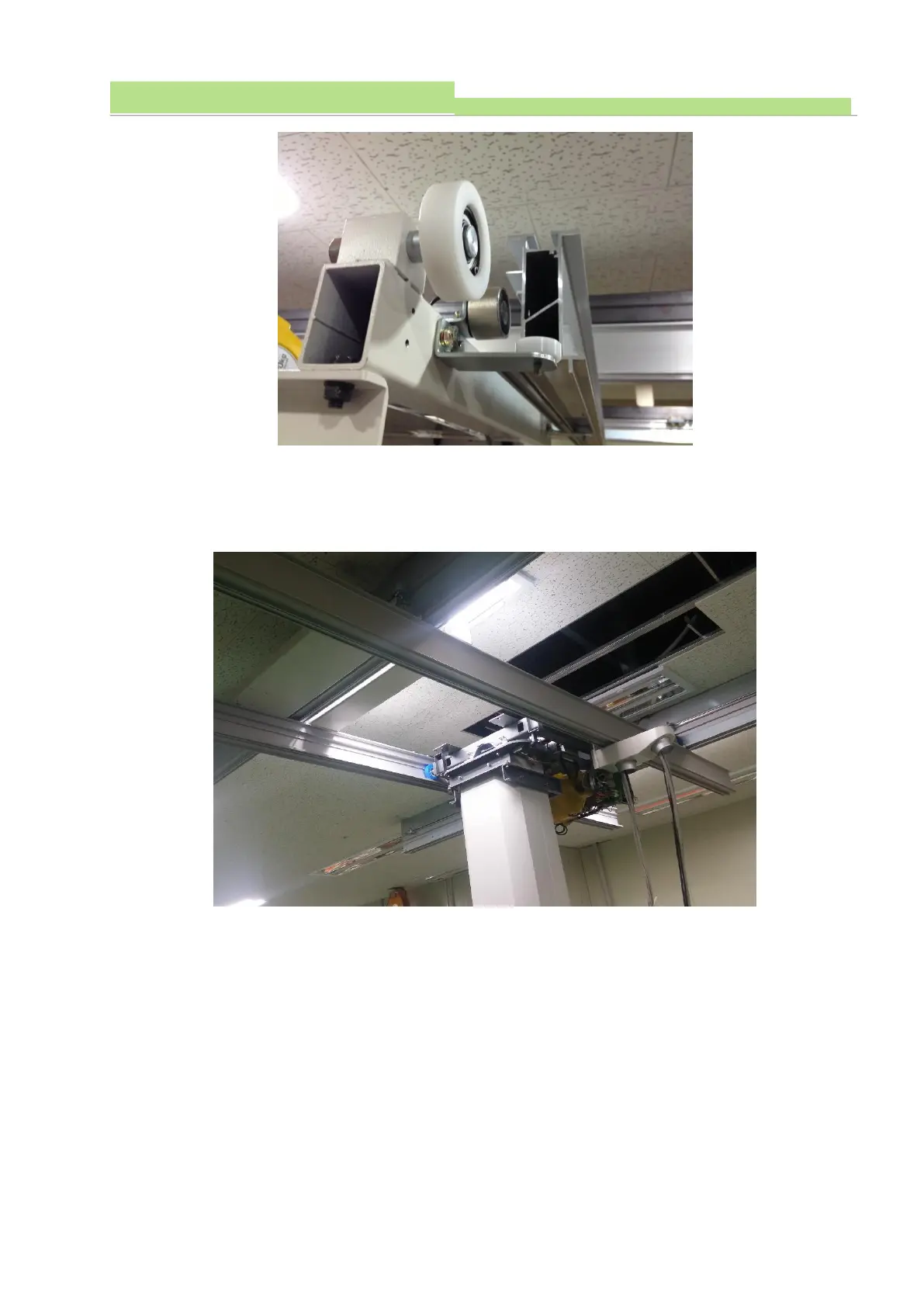

● Once the Wagon is installed at lower rail well, please put the tube on the position. You need to make
careful attention for cable connections.
