Ecoray HF-525Plus - Functions of Main Components

89
Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual
5.11.2 Consist of Main Parts
■ Wagon

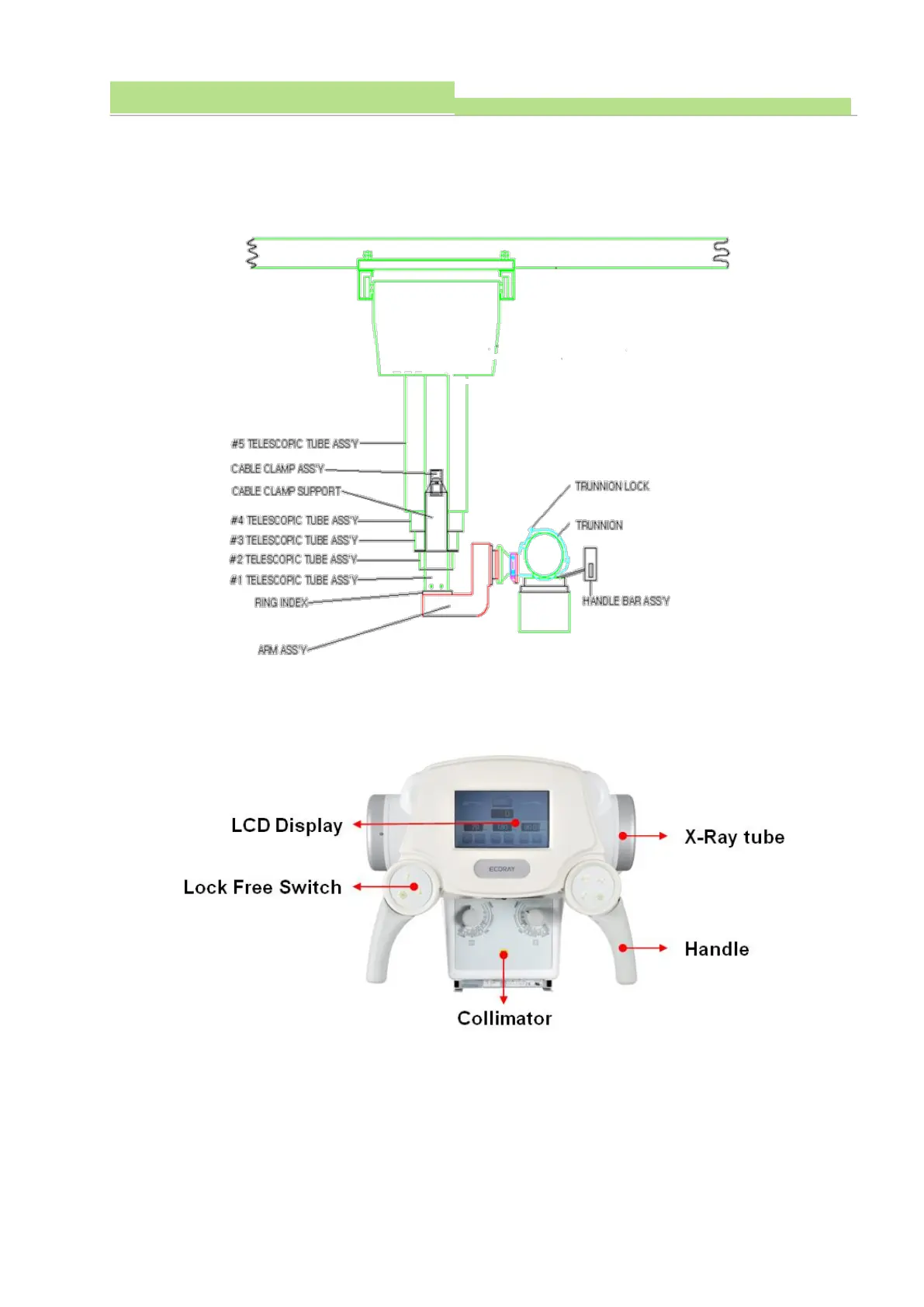

■ Handle Bar & Tube Arm
Functions of main components
■ Wagon
√ Carry the device to the right position.
√ Make the horizontal & vertical balance.
√ When the balance is good, fix the position with anchor bolts. Before you do this, make sure if table
center and Bucky Stand (Wall bucky) center should be match.
