HF-525Plus Installation, Operation and Service Manual
4.5 Handle
NO
Function
Function Description

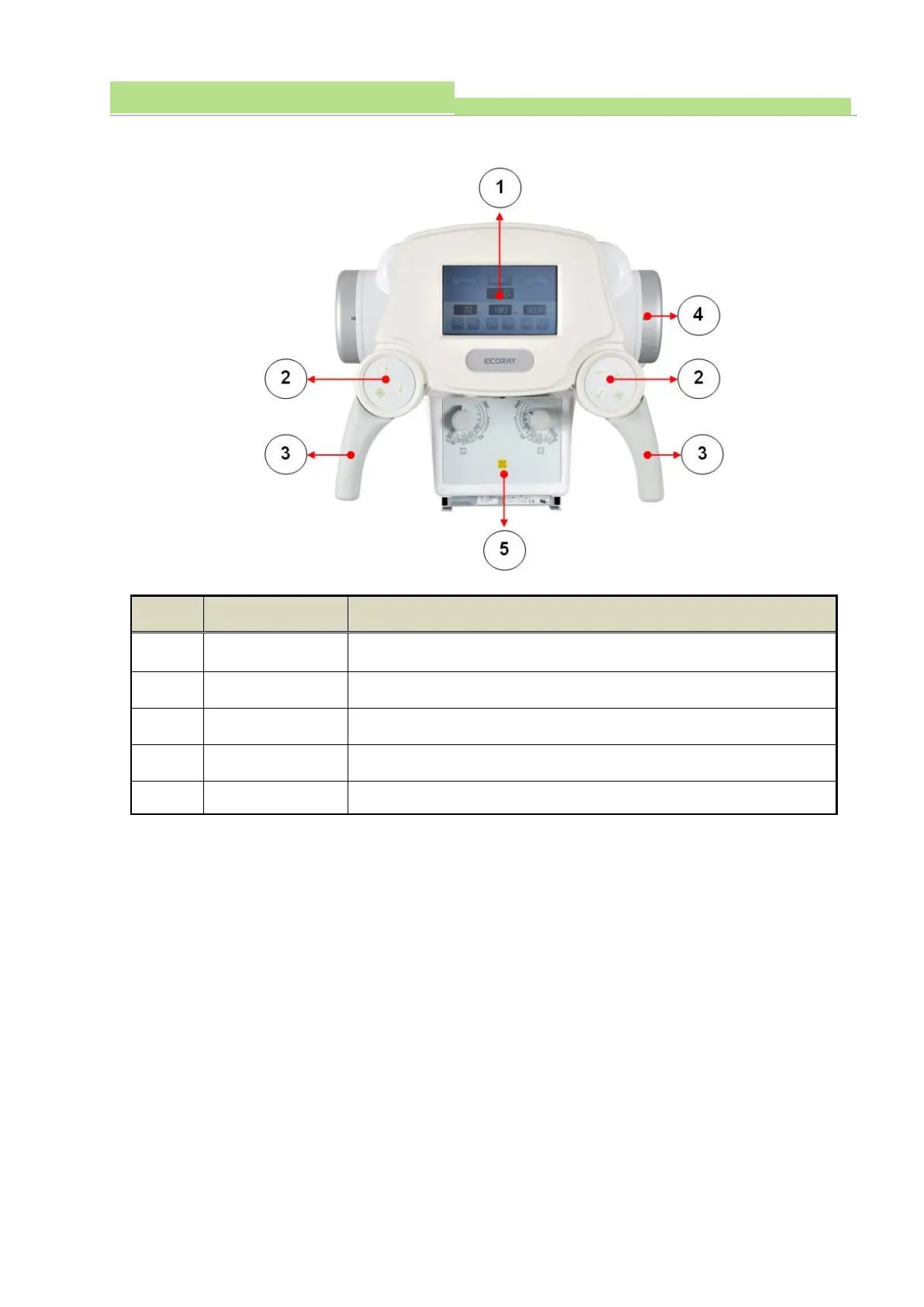

1
LCD Display
Display Tube’s Rotator Angle, and Controls KV, mA, sec
2
Lock Switch
Electrical Magnetic Functional Switch and can operate Low, High,
Lock, All Lock, etc.
3
Handle
Use to moving Tube Device
4
Tube
X-ray Generation Tube
5
Collimator
Control X-ray Exposure Focal Spot
