Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual

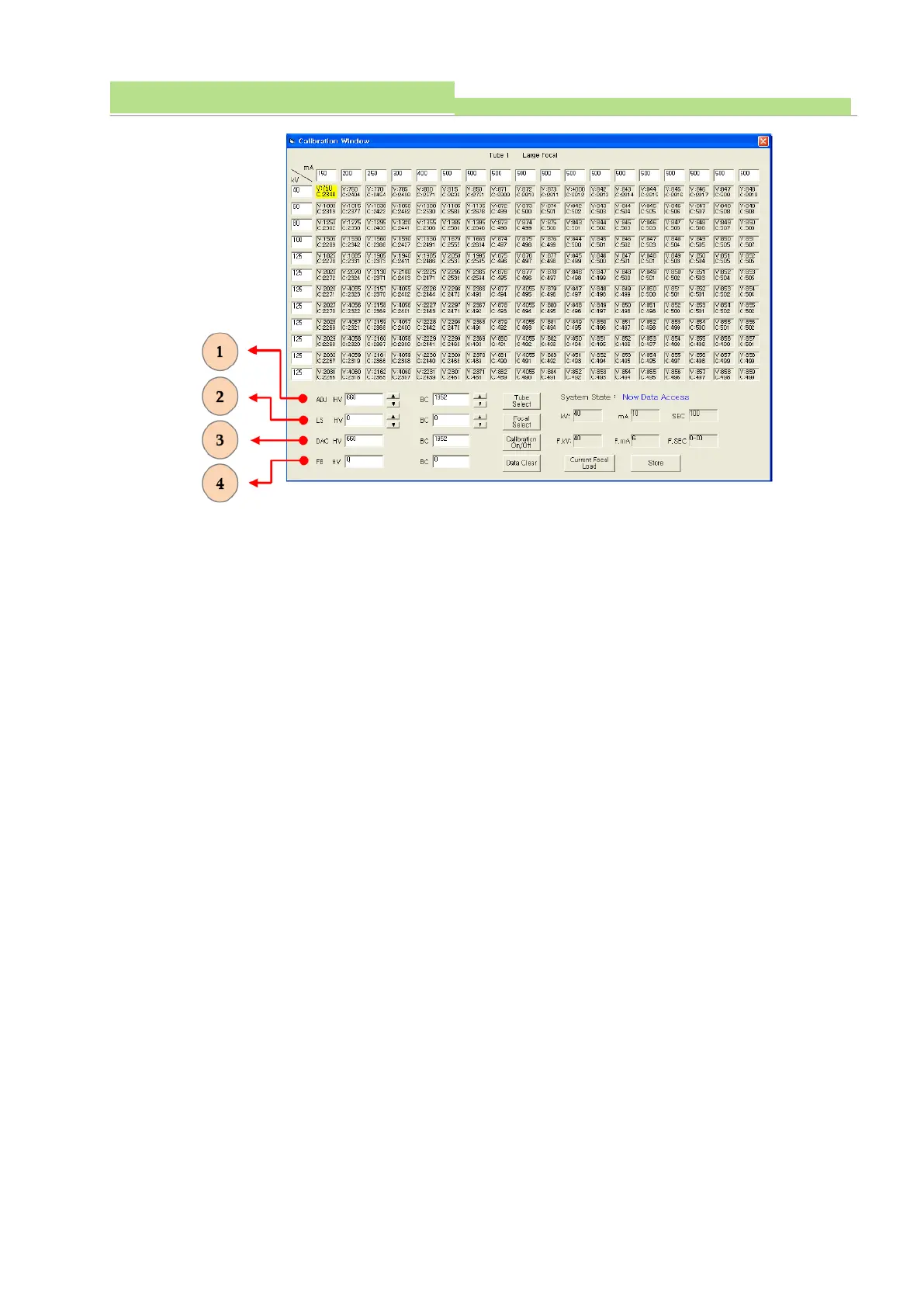

6.7 Sequence of calibration for radiographic mode
6.7.1 Selection of kV, mA for calibration
● kV: 40, 60, 80, 100, 125
● Small focal: 10, 25, 50, 75, 100mA
● Large Focal: 150mA
6.7.2 Sequence of calibration for small focal
Sequence of calibration, in case of small focal at 40 kV
● Select 40 kV→ Select 10mA → Execute “X-ray exposure”→ Check the measured dose on the meter
→ Change data, if necessary→ Click “Enter” on keyboard
● Select 40 kV→ Select 25mA → Execute “X-ray exposure”→ Check the measured dose on the meter
→ Change data, if necessary→ Click “Enter” on keyboard
● Select 40 kV→ Select 50mA → Execute “X-ray exposure”→ Check the measured dose on the meter
→ Change data, if necessary→ Click “Enter” on keyboard
● Select 40 kV→ Select 75mA → Execute “X-ray exposure”→ Check the measured dose on the meter
→ Change data, if necessary→ Click “Enter” on keyboard
● Select 40 kV→ Select 100mA → Execute “X-ray exposure”→ Check the measured dose on the meter
→ Change data, if necessary→ Click “Enter” on keyboard
For sequence of calibration At 60, 80, 100, 125, 150 kV, perform the same sequence at 40 kV.
Click “Store” for saving data.
For sequence of calibration at 60, 80, 100, 125, 150 kV, perform the same sequence at 40 kV.
6.7.3 Sequence of calibration for large focal
Sequence of calibration, in case of large focal at 40 kV
● Select 40 kV→ Select 150mA → Execute “X-ray exposure”→ Check the measured dose on the
