Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual
5.5 Electrical requirements
■ This generator contains advanced circuitry which will maintain the selected X-ray values during
irregular input voltage condition. If input voltage condition is over or less, then could not get a good
X-ray radiation and have a good electric facility to be supplied with good regulation condition.
■ Supply specific electric power to the system.
√ Do not under size distribution transformer.
√ Insure the suitable electric facility for the system.
■ Generator Power line requirements.
√ Power line voltage variation must not exceed ± 10%.
√ Maximum line regulation for the maximum kVA demand is 10%.
Model
HF-525Plus
Input Power
Max. 60 kVA
Input Voltage
Single-phase, 230V
■ Recommended wire size
√ Correct sizing of the feeder wire is critical to proper generator operation.
√ Wire size is depend on the kW rating of the generator, line voltage and the distance from the
generator and electric circuit breaker.
√ Minimum wire size from generator and electric circuit breaker.
Generator
Line Voltage
Wire size
7.5 m
15 m
30 m
60 kVA
208-240 VAC
35 mm
2
70 mm
2
120 mm
2
√ Apparent resistance of supply mains should be below 0.15ohm.

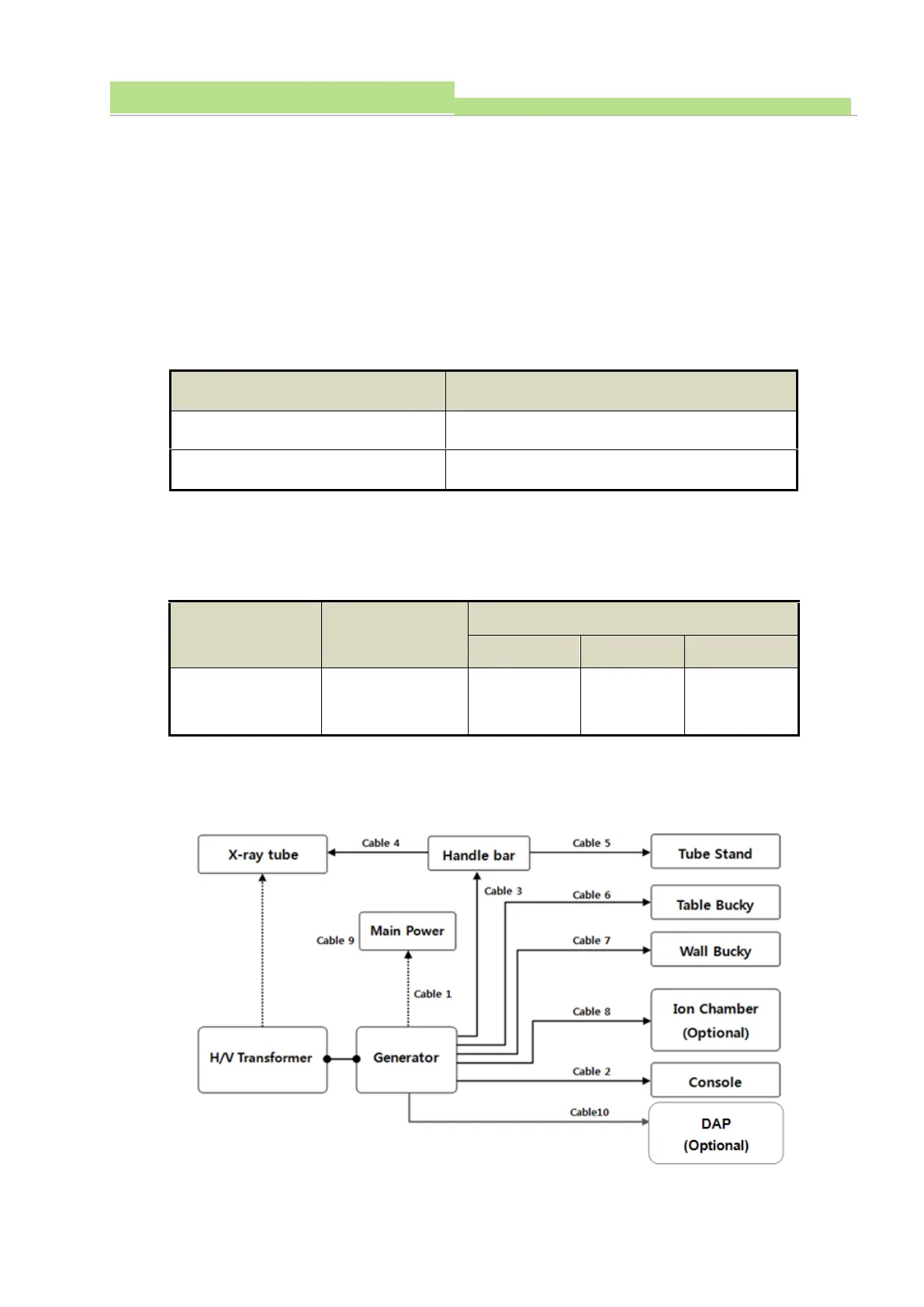

5.6 Wiring Connection of main devices.
