Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual

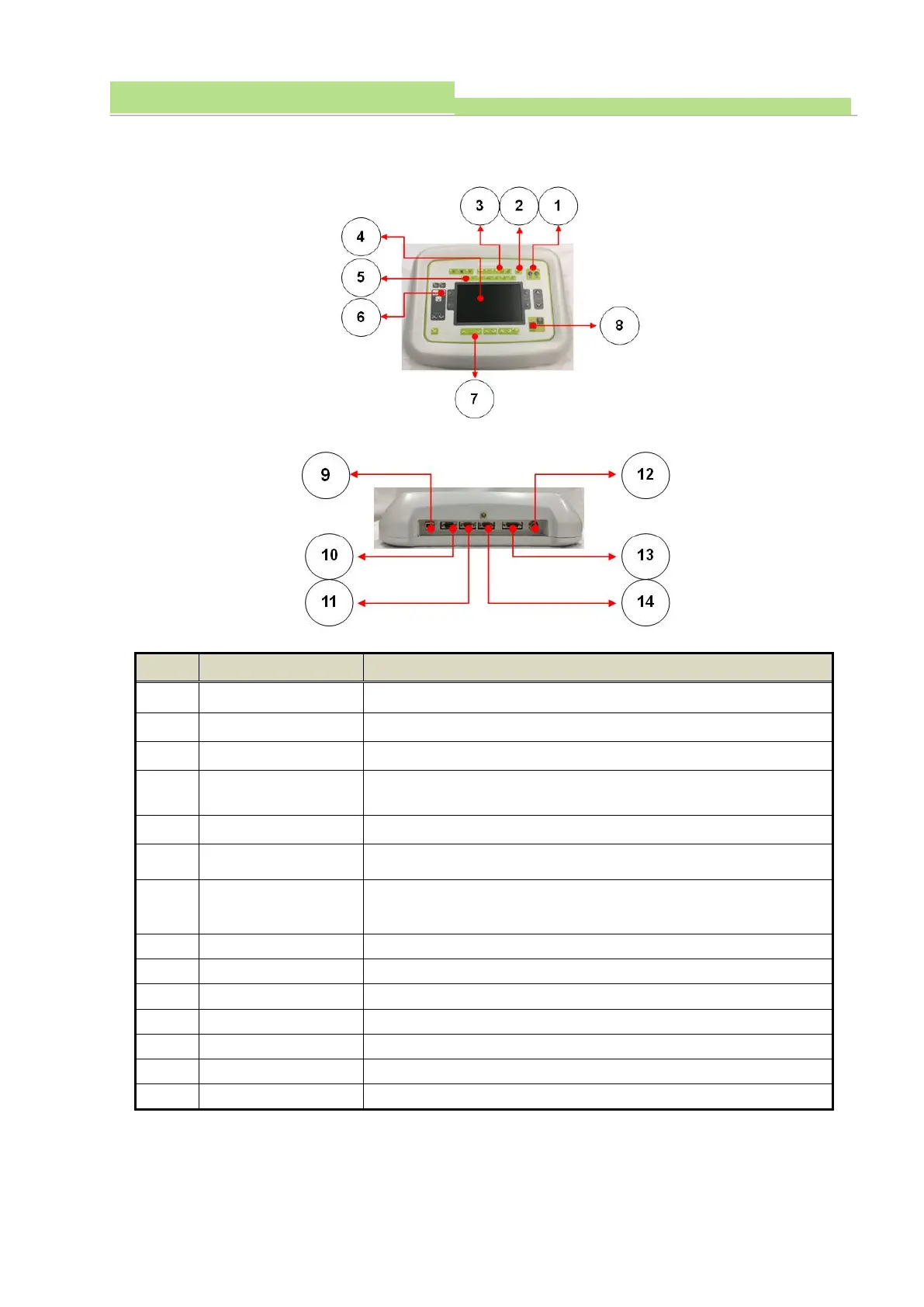

4.3 Console
Top view
Rear view
NO
Function
Function Description
1
Power ON/Off
On/Off Switch for Supplying Power to Generator
2
Reset Switch
If Device brakes, Resets Error Condition at Main CPU
3
Display Operation
Display LED lamp for Generator’s Operating condition
4
LCD Display
Display Pre-saved X-ray Radiation, and also Display Generator’s
Operating Condition
5
APR
Select Saved Data (Patient’s Body Part) from OP Console
6
AEC FUNCTION
Select AEC function and control sensitivity for filtering X-ray and
control Chamber’s Location
7
Control
X-Ray Exposure
Condition
Switch Controls for KV, mA, mAs, Time
8
X-Ray Shot Switch
For X-Ray radiation, Ready, X-Ray Exposure Switch
9
DR signal port
Using for Manual trigger type
10
DAP meter port
Connecting with DAP meter
11
PC port
Port, Connecting with PC
12
Hand switch
Connector with Handle bar
13
MiO Port
Communication Port for Generator MiO board
14
SUB port
Port, Connecting with Handle Bar
