HF-525Plus Installation, Operation and Service Manual
5.12.5 Start Installation
Installation procedure of Table Bucky
● Identify a label on the product with serial number of test report that included in package.
● If user finds out any harm of damage on external appearance or internal wiring, user should order
immediately substitutes to prevent delay of installation.
● Move the table to the place where it would install.
(At least 4 adults move the Table Bucky, or a lift is required.)
● Disconnected while transportation could be connected while its installation.
● Wiring according to wiring diagram.
● Reconfirmation after wiring.
● Supply a main power after wiring reconfirmation. (Voltage should be checked)
● Check function of electromagnet and centering signal by foot switch.
● Engineer should be remaining the work place until the installation would be completed.

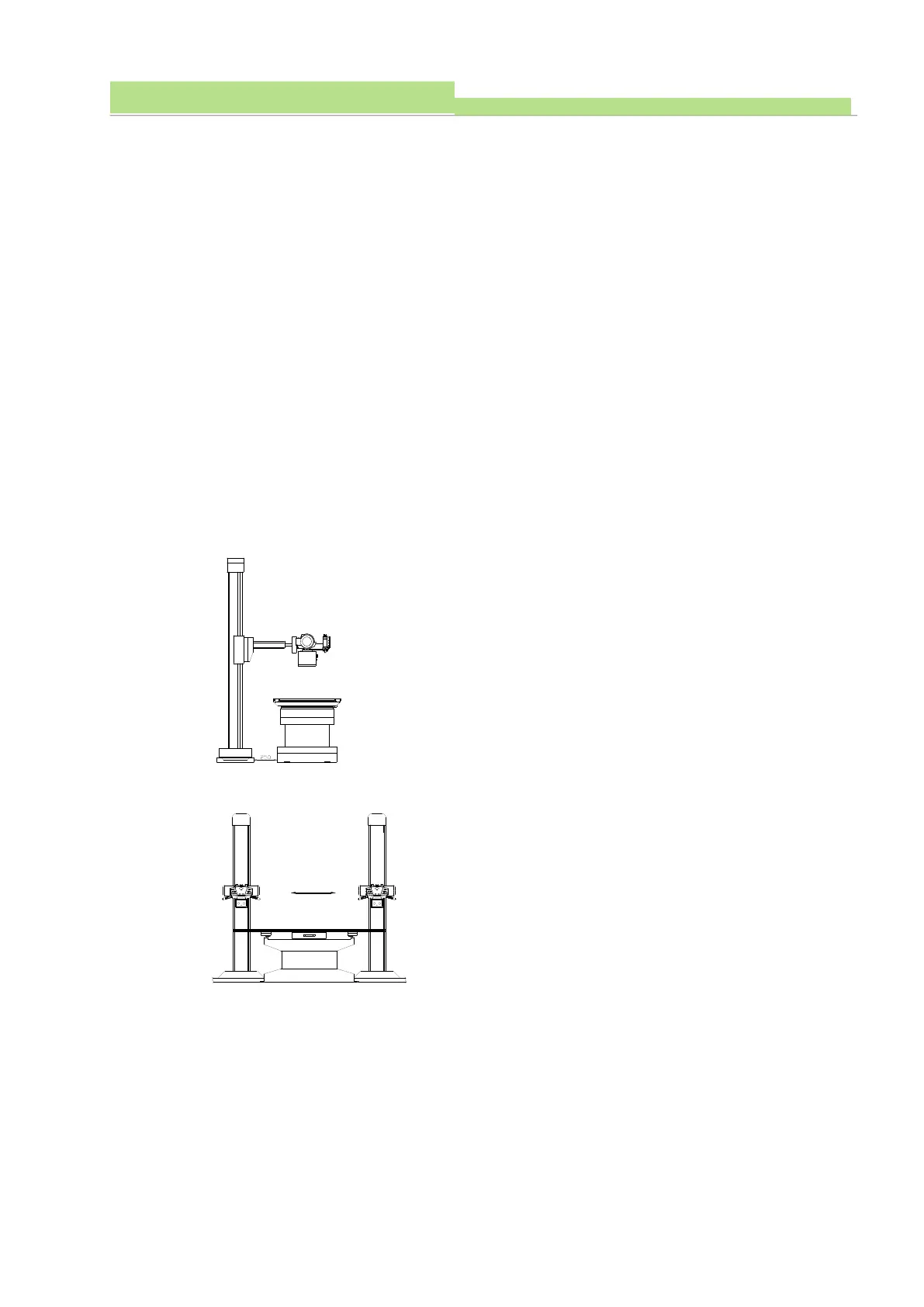

5.12.5.1 Position Table Bucky Picture Change and Checking
1. Patient table should make a bar level with a tube stand.
2. At least 25cm remains between tube stand and patient table.
3. Start wiring
4. Turn on the collimator light after check distance of two
devices.
5. Make sure that patient table and tube stand are even level
with moving tube stand right and left.
(The light should remain the center of the patient table.)
