Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual
5.12.5.2 Understanding Wiring

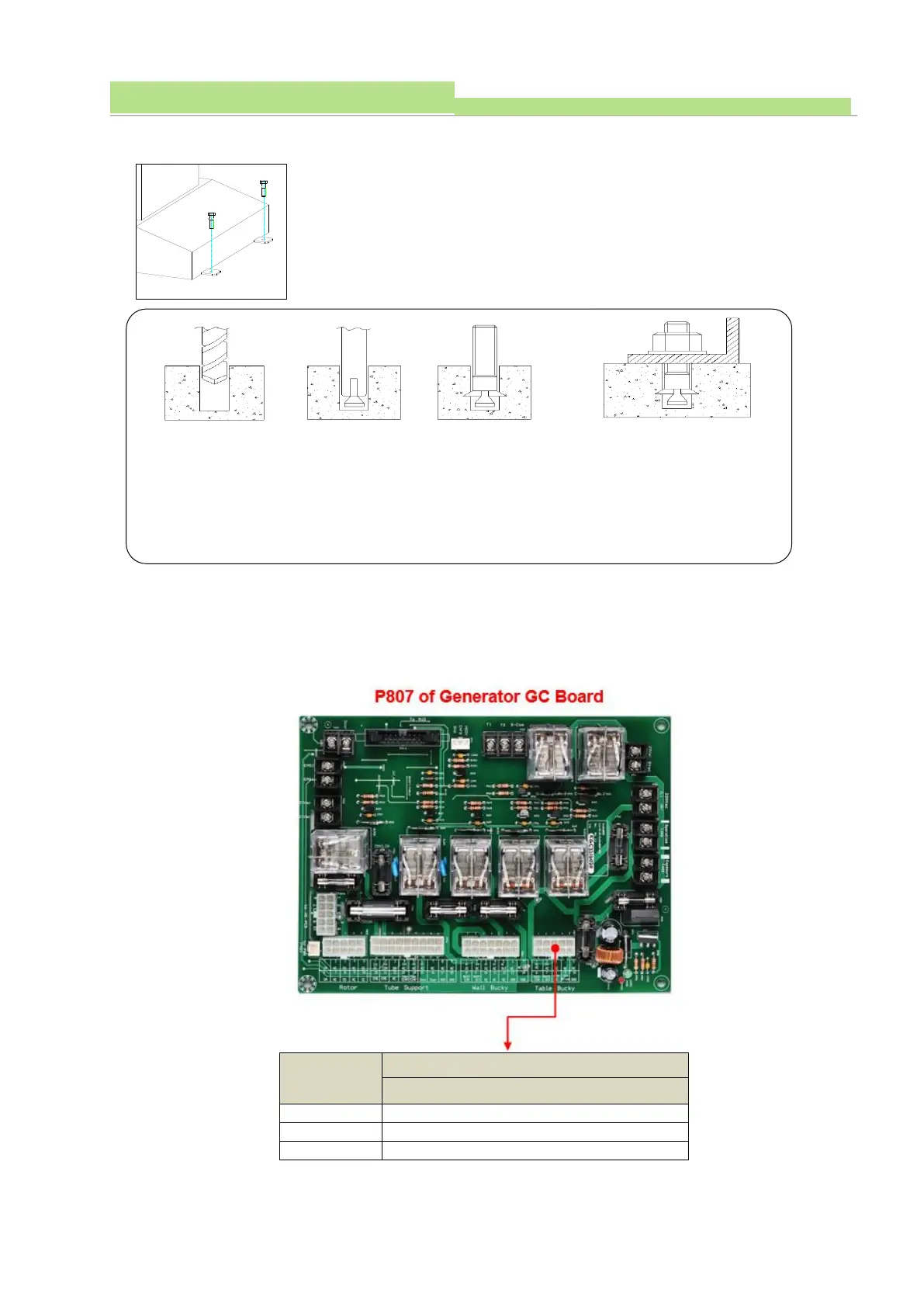

■ Checking the Wiring to Table Bucky Board’s TCON2 Connector and Generator GC Board’s P807.
IN NO
Upper Side, Generator
P807
1
AC 0V
2
AC 23V
3
NC
1. After horizontal confirmation, user fix the table.
(See the picture)
2. Fixture of patient table is performed for certain.
(See the below picture)
1
2
3
