Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual
4
NC
5
NC
6
Bucky COM
7
Bucky OUT
8
AC 220V
9
AV 220V COM
10
GND
5.12.5.3 Wiring Table Bucky
Power supply
● Power supplies from generator and it should be pre-check its voltage with voltage meter.
● The power supplied to tube stand is 24VDC and the voltage could be checked with voltage meter.
Wiring check of Table Bucky
● Check the wiring with generator is same with wiring diagram.
● Supplying power to the Table Bucky after checking the voltage.
● Switch on the console
● Check operation of electromagnet with switches of handle bar.
● First connect Power cable and Bucky signal cab

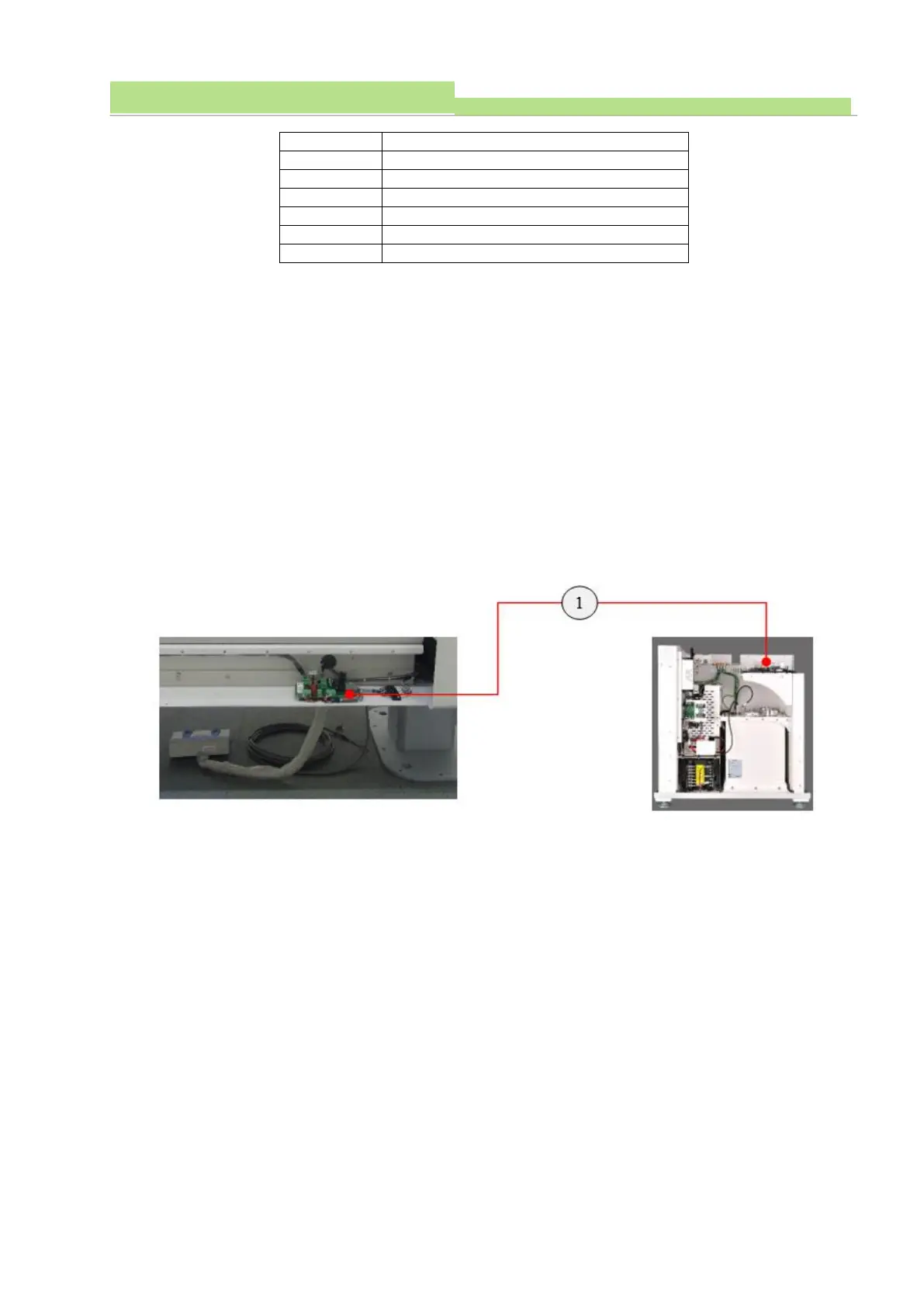

No.1: Table Bucky signal is coming from Generator GC Board P976
