Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual

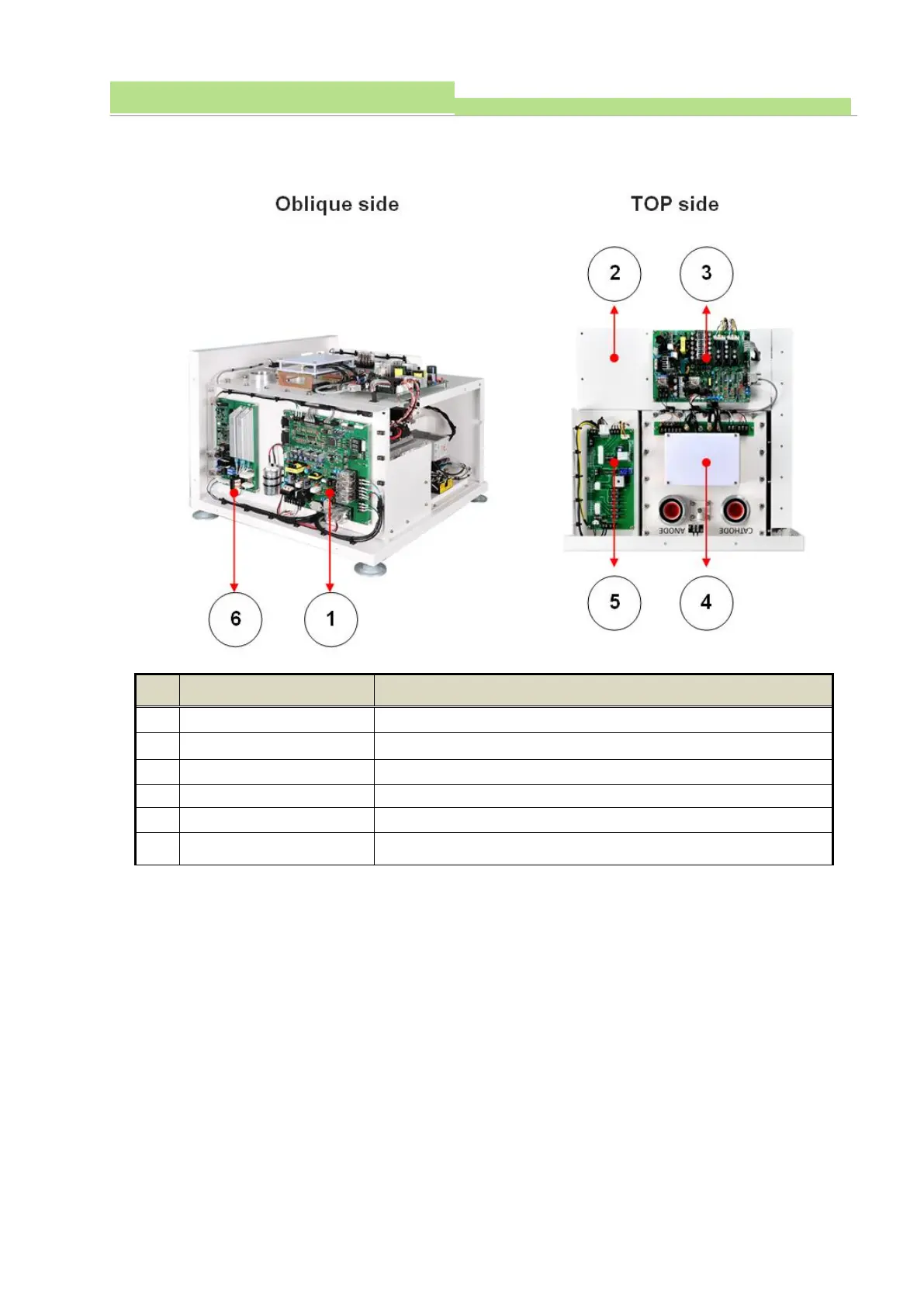

4.2 Generator
NO
Function
Function Description
1
Main CPU Board
X-ray Control by OP console’s data
2
AEC Board
Automatically controls X-ray Radiation Time
3
Filament Board
Control Tube Filament & IGBTby Main CPU’s signal
4
HVT
Generating high voltage and supply to X-ray tube.
5
GC Board
Connect to Tube, Table, Upright stand, etc. with Outside Device
6
Charge & Discharge Board
Main Capacitor’s Control and Charge & Discharge by Main CPU’s
Signal
