Ecoray HF-525Plus - Equipment Dimensions

25
Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual

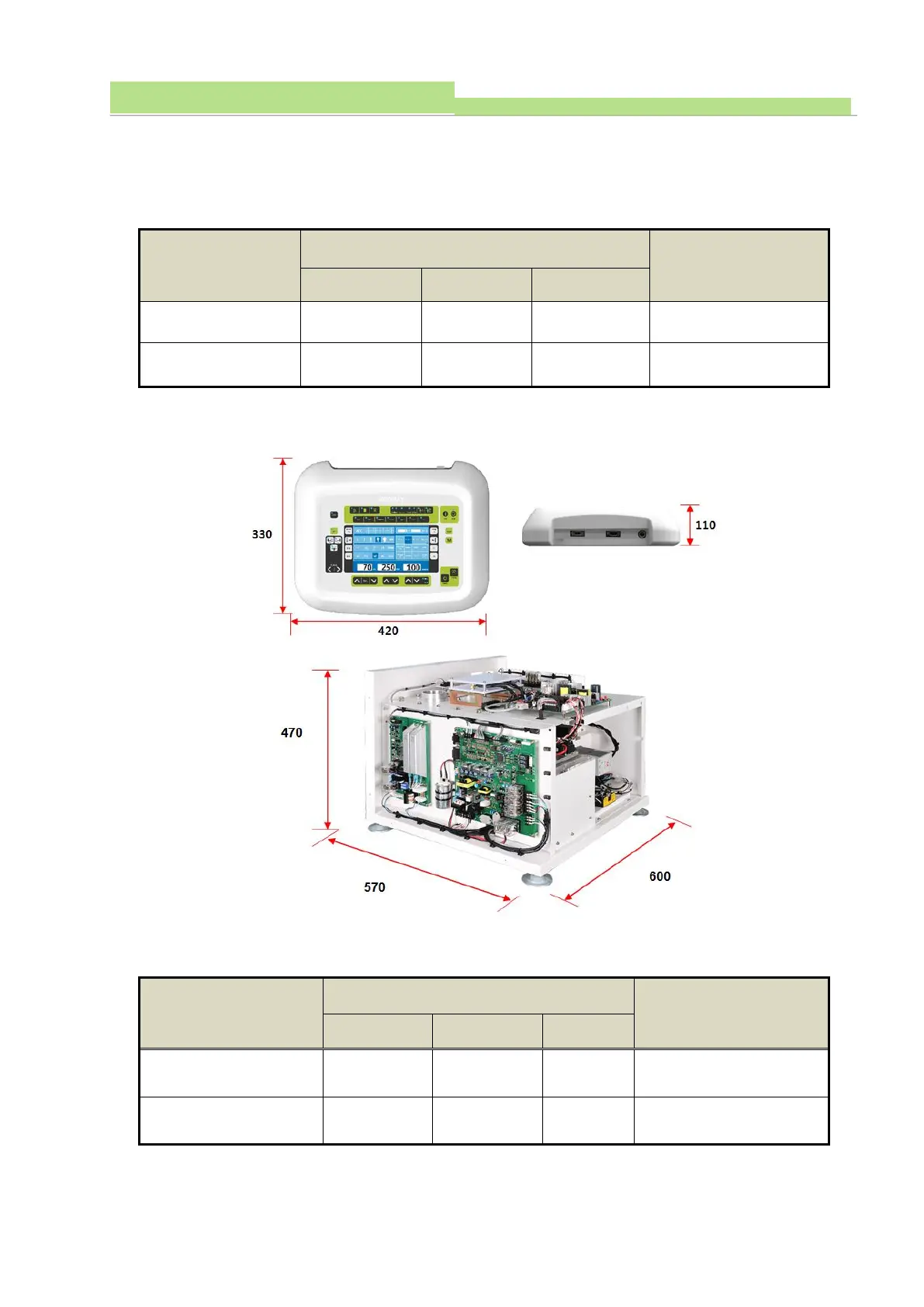

5.2 Equipment Dimensions
5.2.1 Generator
√ Physical characteristics
Item
Size (Unit: mm) deviation ±10%
Weight (Unit: Kg)
deviation ±5 Kg
Length
Width
Height
Console
420
330
110
1
Generator
(Including HVT)
600
570
470
105
√ Dimension (unit: mm)
5.2.2 Tube Stand
√ Physical characteristics
Configurations
Size (Unit: mm) deviation ±10%
Weight (Unit: Kg)
Deviation ±5 Kg
Length
Width
Height
Floor Rail
2800
580
120
Stand
860
240
2,200
