Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual
meter → Change data, if necessary→ Click “Enter” on keyboard
For sequence of calibration at 60, 80, 100, 125, 150 kV, perform the same sequence at 40 kV.

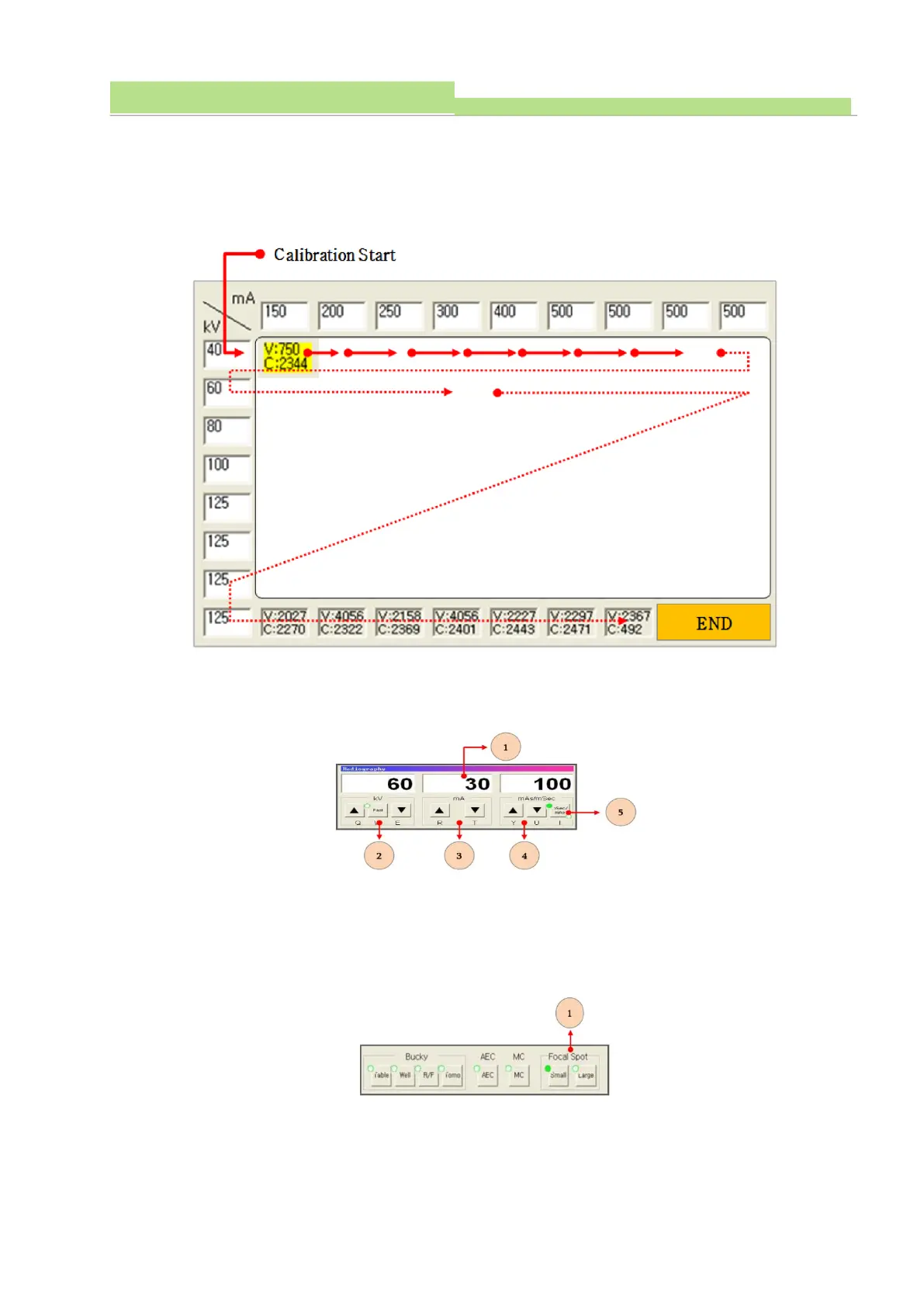

6.7.4 Flow diagram for sequence of calibration
6.7.5 Confirmation of dose after calibration
● Execute “Operation Part”.
● The “No 1” indicates X-ray exposure parameters (kV, mA and exposure time) for radiography (see No
1of the above fig).
● The “No 2” indicates adjustable kV (see No 2of the above fig).
● The “No 3” indicates adjustable mA (see No 3of the above fig).
● The “No 4” indicates adjustable mAs (see No 4of the above fig).
● The “No 5” indicates selectable function for msec and mAs (see No 5of the above fig).
● Select “Small or Large” on “Focal Spot” (see No 1of the above fig).
