Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual
√ Fix the device with Wedge Anchor bolt..
■ Rail
√ Cassette Tray locates cassette
√ Cassette holder is a fixture that does not move the cassette.
√ Grid is a lattice to get rid of scattered X-ray.
√ Oscillator moves grid right and left.
√ Ion Chamber controls exposure time automatically.
■ Handle Bar
√ Handle: The device has a Angle display panel, emergency PWR-off button, electromagnetic lockup
buttons and user holding handles for X-ray tube position control.
√ X-ray tube device: where it has X-ray tube, Handle Bar and collimator assembled.
√ Tube Arm: Helping X-ray tube rotation from Handle Bar.
√ Electromagnetic lockup device for vertical travel: Helping X-ray tube up/down travel from Handle Bar.
5.11.3 Unpacking
● The different devices are packed in several boxes for convenient and efficient transportation and
installation.
● Check if all the devices are well condition after unpacked.
● In case any of the devices are broken or missed, please contact your local agent or manufacturer
quickly.

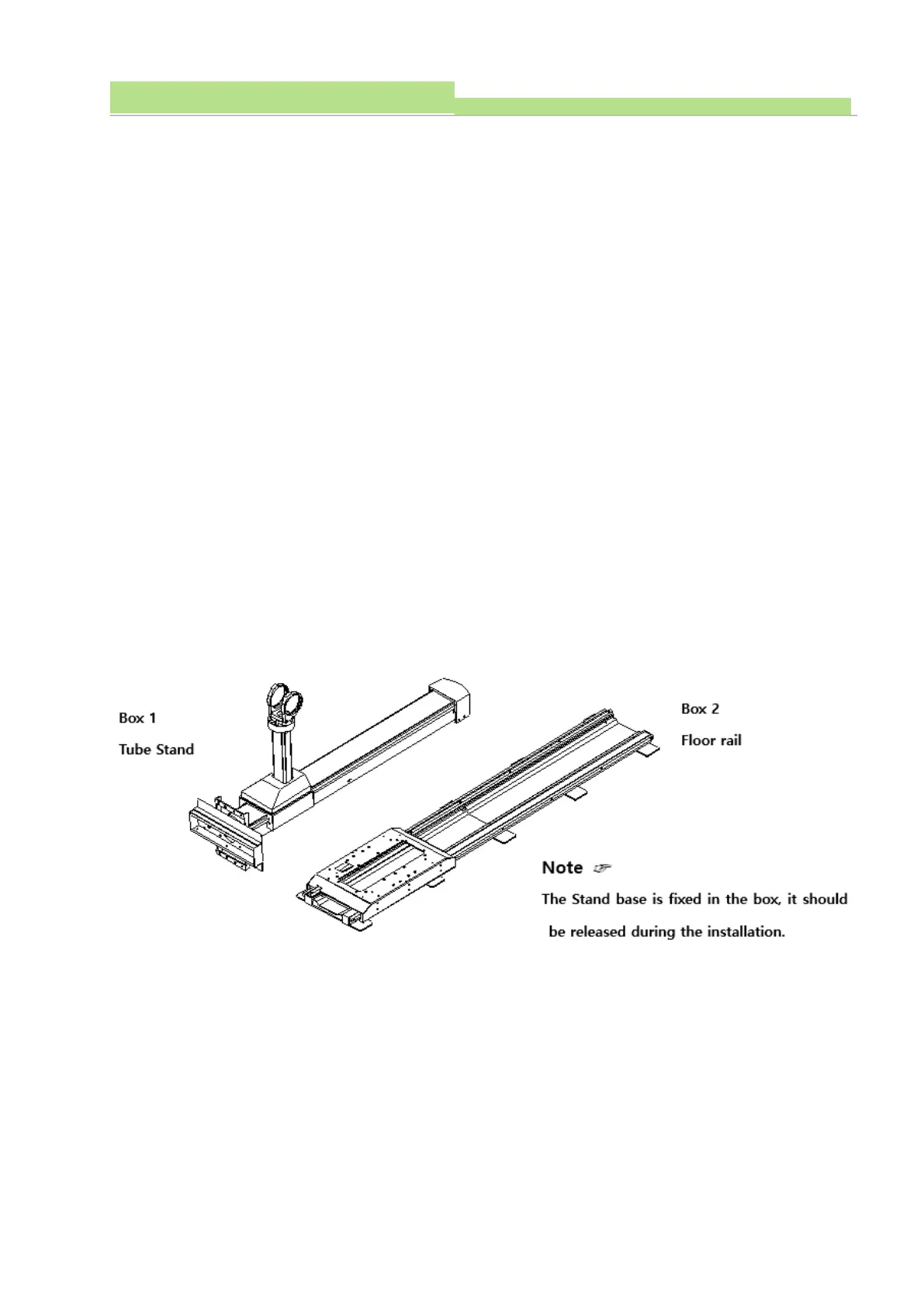

● They are packed as a set of Stand, a set of Handle Bar, a set of balance weight and a set of Floor rail.
● Do not scrap the packing boxes, envelops or inside papers before you make sure all about the
contents.
CAUTION ▶
It is necessary to have 2 or more people to move and install the Tube Stand devices.
