Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual

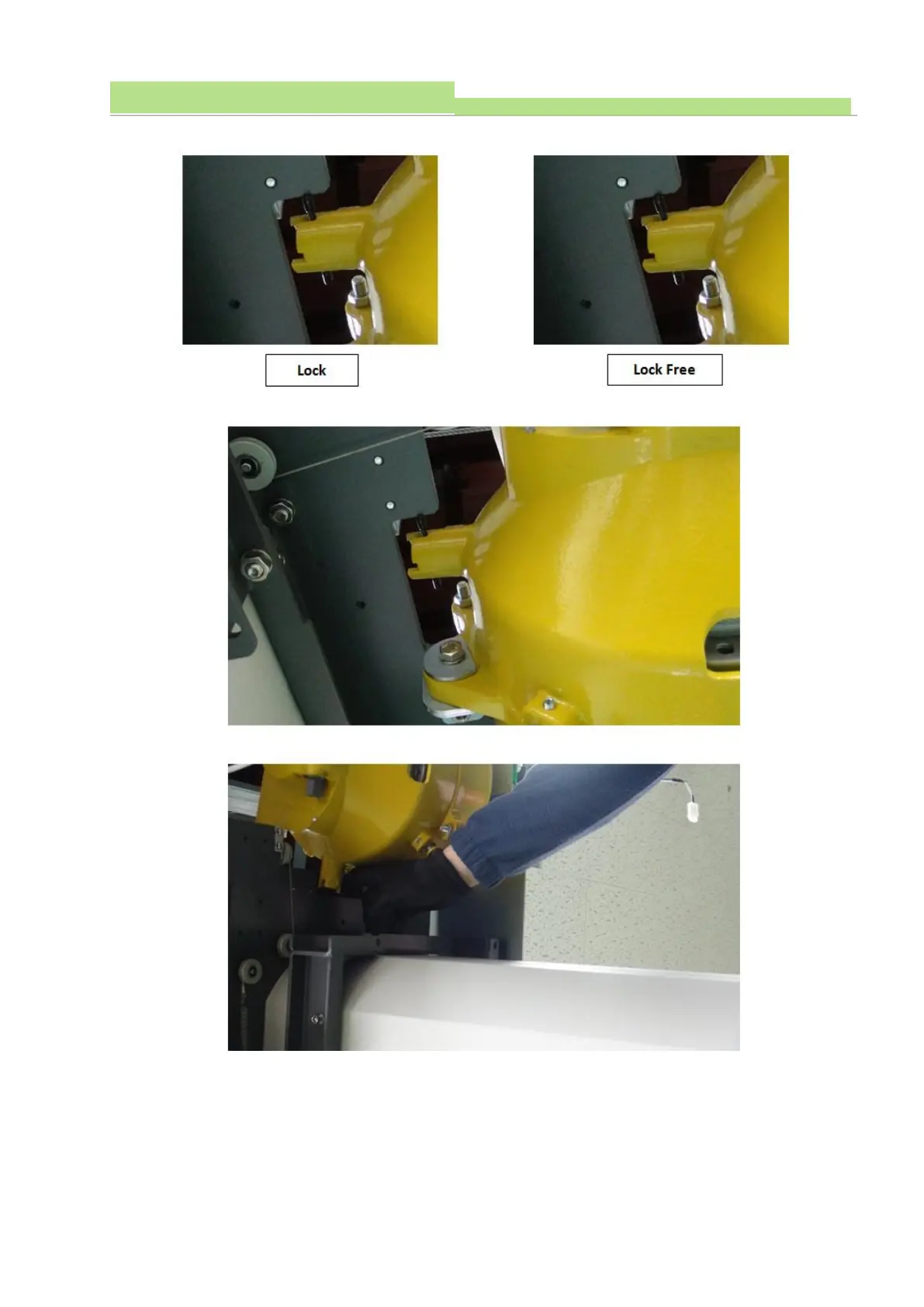

● Spring balance (yellow color module) pin check
● Make Spring Balance pin position at LOCK FREE
● At Lock free condition, you can scroll the column down to appropriated height for tube assembly.
