HF-525Plus Installation, Operation and Service Manual
5.11.4.9 Cabling Ceiling
● First connect Power cable and Bucky signal cab
No.1: Ceiling powerl is coming from Generator GC Board P976
● Wiring Upright stand and Generator GC Board’s P807.

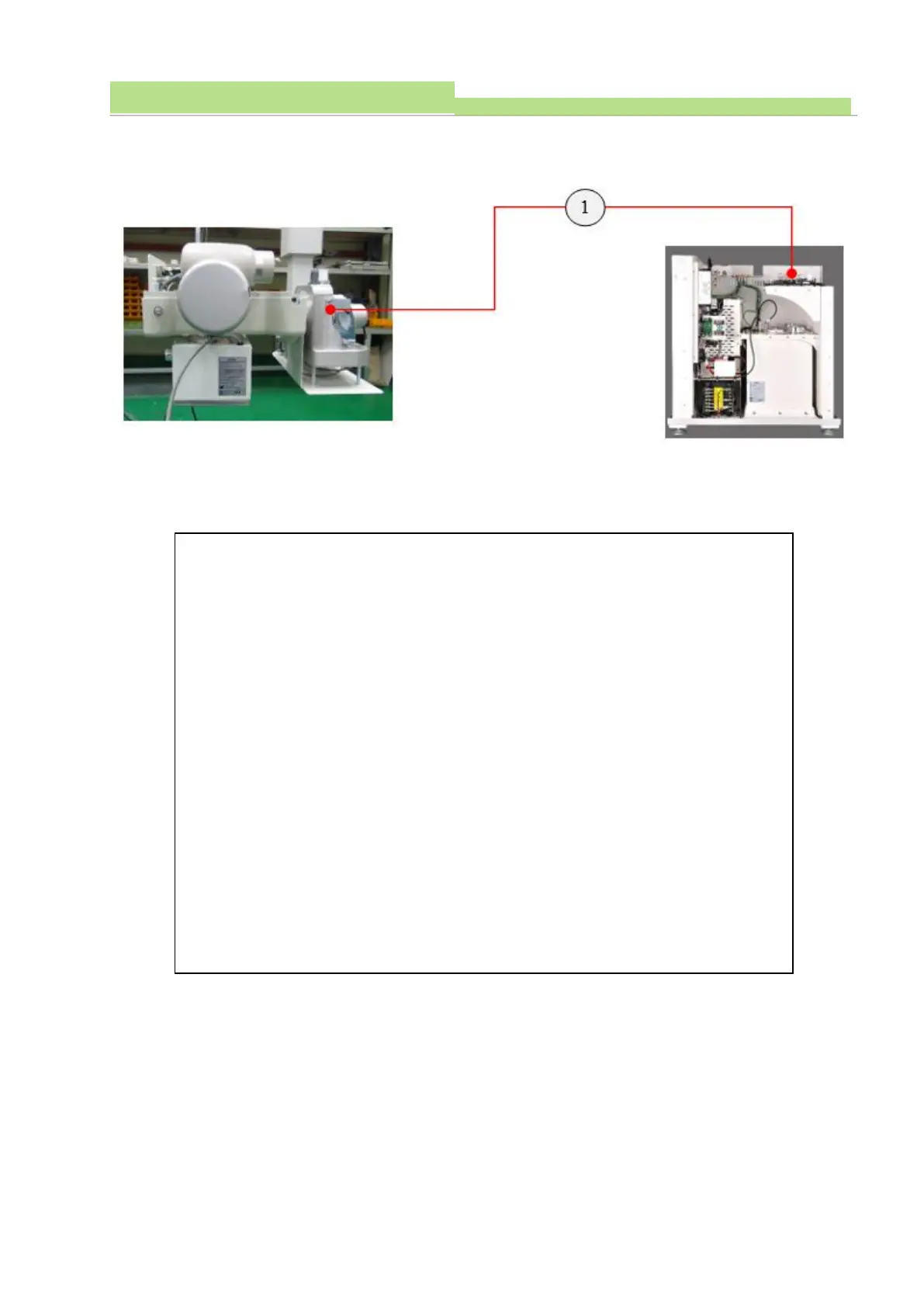

● Check and prepare for communication cable, magnetic lock cables well like the photo below.
To Next Page
