Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual
√ Cassette holder is a fixture that does not move the cassette.
√ Grid is a lattice to get rid of scattered X-ray.
√ Oscillator moves grid right and left.
√ Ion Chamber controls exposure time automatically.
5.13.4 Unpacking
● Wall Bucky is packed not to need to assemble again for efficient delivery and installations
● Upon receipt of the product, inspect if there is any damage.
● If damage is found, notify the carrier or his agent immediately.
● Don’t waste documents, box and development that are inside of box until you confirm that all parts
are o.k.
CAUTION ▶
At least 4 people work together to move tube stand for installation.
5.13.4 Start Installation
● Identify a label on the product with serial number of test report that included in package.
● If user finds out any harm of damage on external appearance or internal wiring, user should order
immediately substitutes to prevent delay of installation.
● Move the table to the place where it would install.
(At least 2 adults move the Wall Bucky Stand or a lift is required.)
● Disconnected while transportation could be connected while its installation.
● Wiring according to wiring diagram.
● Reconfirmation after wiring.
● Supply a main power after wiring reconfirmation. (Voltage should be checked)
● Check function of electromagnet and centering signal by foot switch.
● Engineer should be remaining the work place until the installation would be completed.

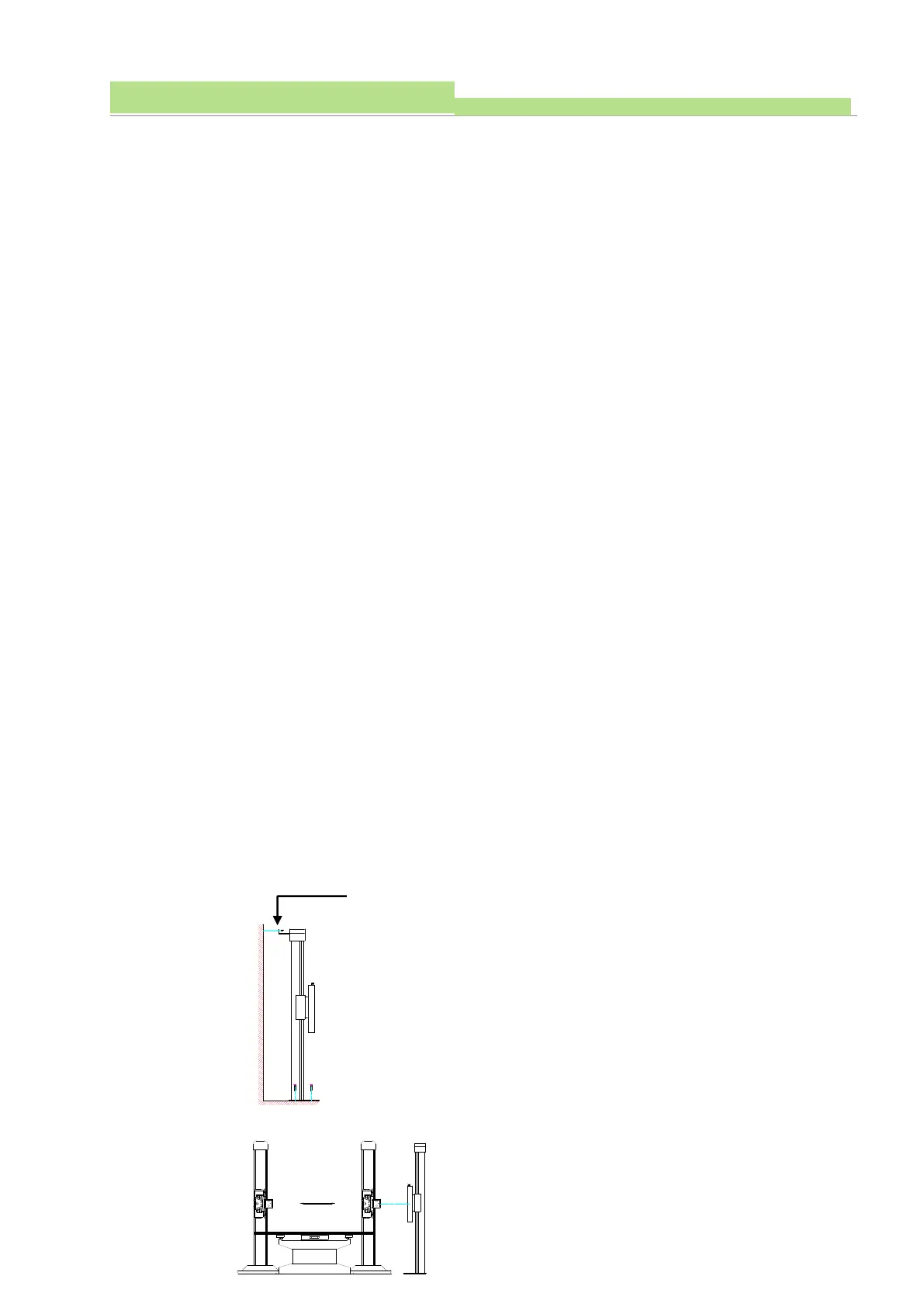

5.13.4.1 Position Table Bucky
1. Move Wall Bucky to installation site
2. The floor must be flat
3. Wall Bucky must be horizontal and vertical with wall
4. Fix anchor to floor after installation
5. Turn collimator lamp
6. Collimator light must be located on Wall Bucky center
7. Move tube support device left and right and Wall Bucky not
to move
Collimator light out of center of Wall Bucky
