Ecoray HF-525Plus - Page 132

132
Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual
2
AC 23V
3
NC
4
NC
5
NC
6
Bucky COM
7
Bucky OUT
8
AC 220V
9
AV 220V COM
10
GND
5.13.4.5 Cabling Wall Bucky Stand
● Power input
√ Power is supplied by generator and check the voltage with voltmeter before supplying power
√ Input power at Wall Bucky is 24VDC and the voltage could be checked voltmeter
● Wall Bucky wiring check and input power check
√ Wiring connected with exterior device must be same with circuit diagram
√ Supply power after checking voltage
√ Console switch On
√ Press handle bar switch and check the condition of electro-magnet

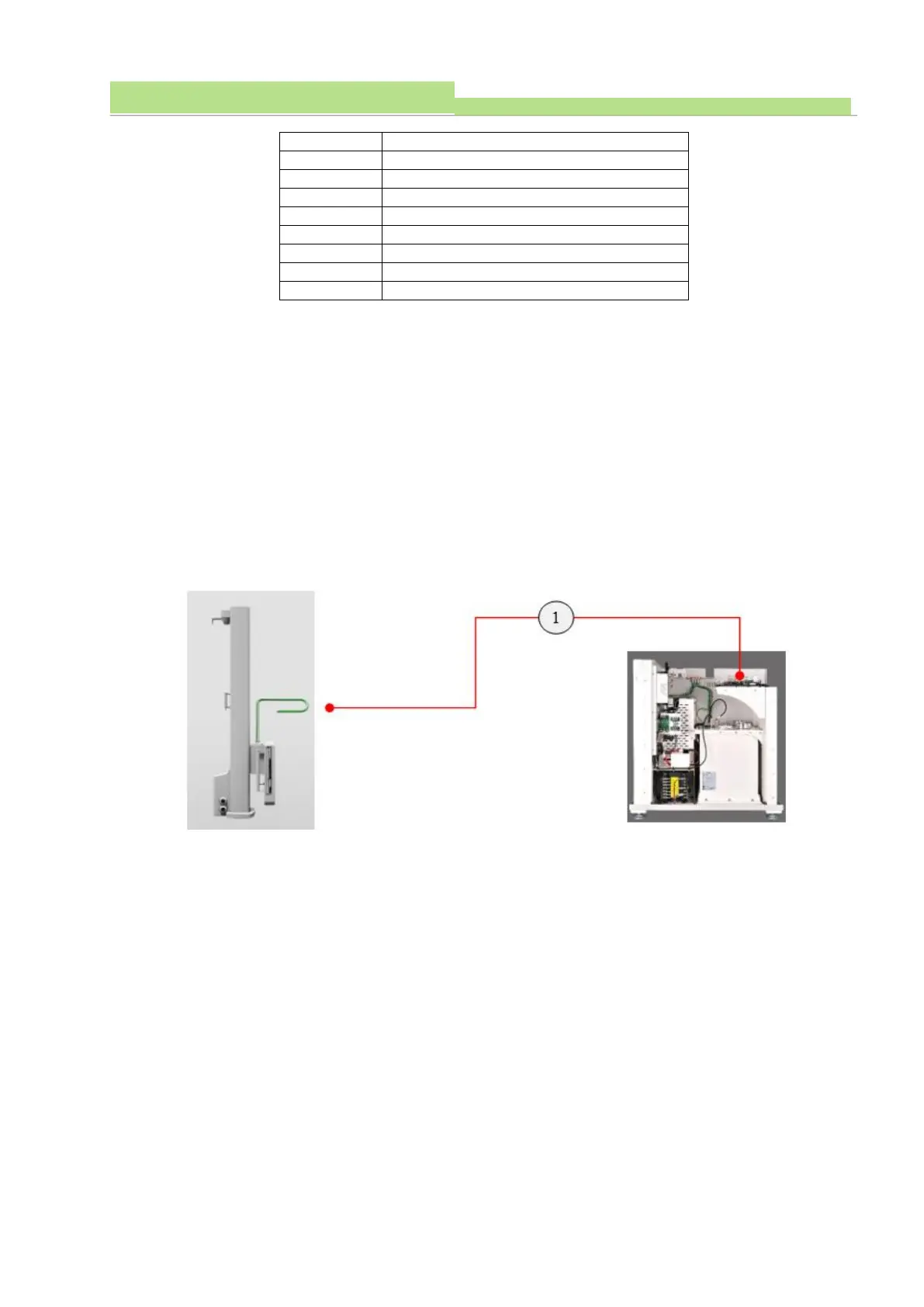

● First connect Power cable and Bucky signal cab
No.1: Table Bucky signal is coming from Generator GC Board P807
