Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual
1) Consist of PCB
2) Check procedure

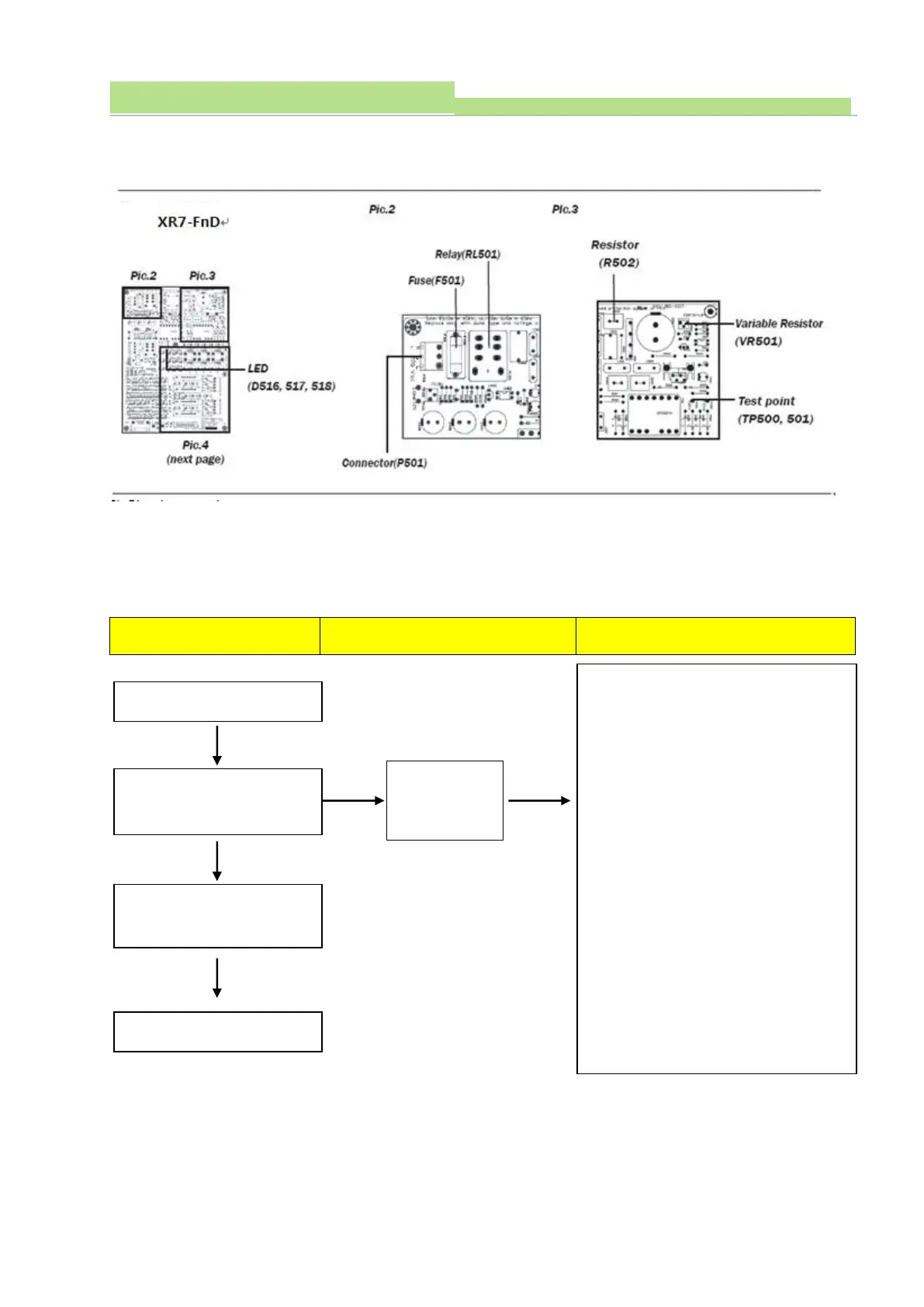

(1) Board Name: XR7-FnD Board
(2) Functions: Controlling IGBT and Tube Filament
(3) Check wiring condition of XR7-FnD Board and the check IGBT_OCP trouble when IGBT Device signal
and protection circuit trouble. And check procedures are as follows.
Normal Operation
Under defective
How to check and repair
1. LED light ON check at D516, 517, 518
(Normal: All LEDs are light ON)
2. Fix the Connector (P501) and check
voltage (normal : 220VAC)
3. Check the Fuse (F501).
4. Fix the Relay (RL501) and check its
functioning (normal: Relay working with
lamp ON)
5. Measure the voltage between Test point
(TP500, 501) (normal: 18VDC ±0.2V)
6. If above voltage is not O.K, adjust VR501
to meet the proper range at 18VDC.
7. In case there is no voltage out, check the
Resistor (R502).
Error comes
when X-ray
exposure
Set exposure value
Push Ready button
X-ray exposure is done
Push X-ray button
