Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual

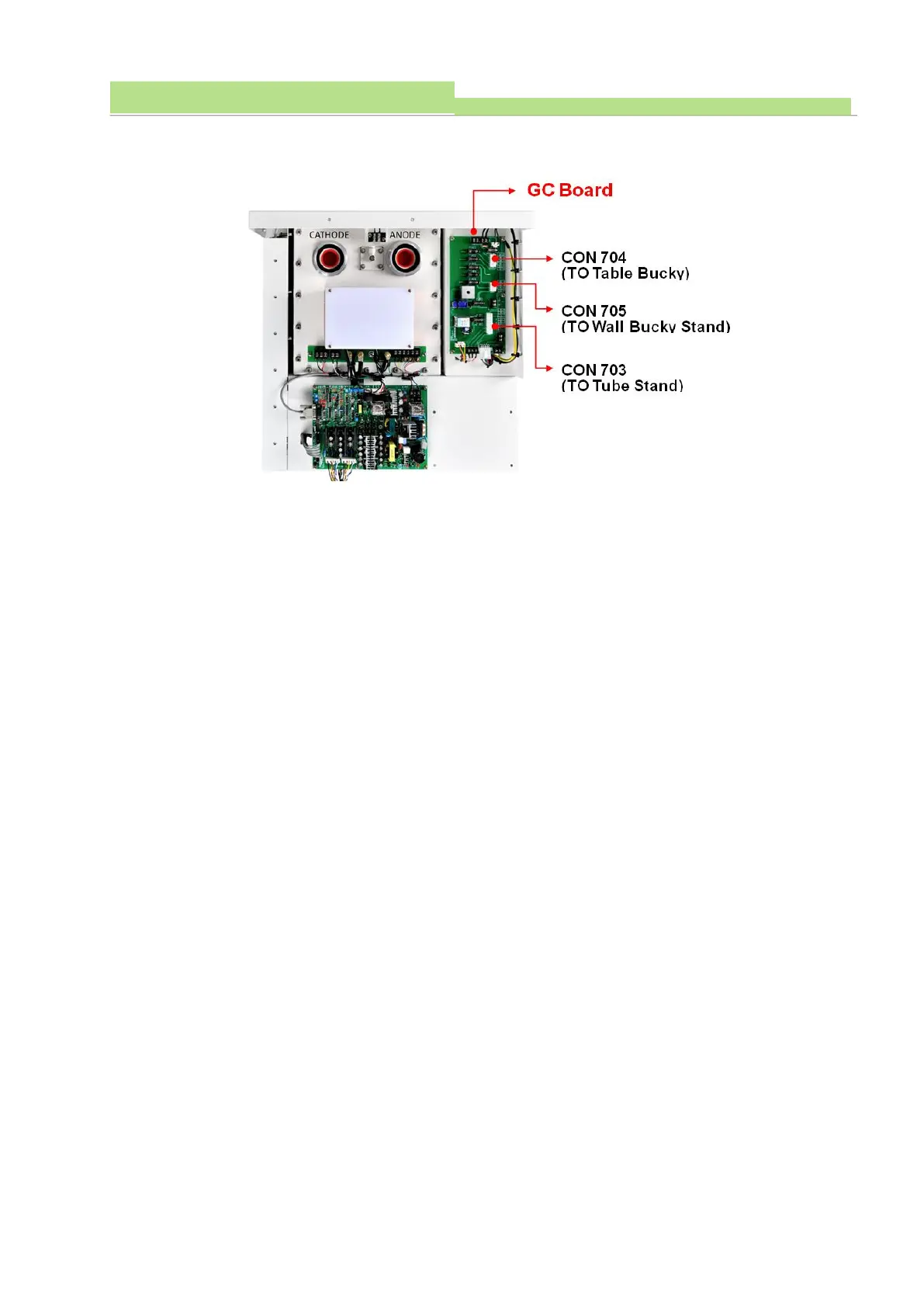

√ External Devices Connecting
5.9.5.4 Manufacturer’s Instructions
● Prepare receptacle socket of high voltage transformer that will be installed and high voltage cable.
(High voltage cable must be handling with always clean condition)
● Apply enough insulation silicon to the entire of surface of Cable plug (High voltage transformer) and
near of the pin. (Put approximately 1cm of Insulation silicon into the High Voltage Transformer
receptacle socket.)
● Fix cable nut with firmly after connecting of high voltage cable with high voltage Transformer.
● Apply enough insulation silicon to the entire of surface of Cable plug (X-ray tube) and near of the pin.
● Connect opposite side of high voltage cable to the X-ray tube receptacle socket.
● Fix cable nut with firmly after connecting of high voltage cable with X-ray tube.
WARNING ▶
High voltage cable wiring must be done in dryness place without humidity.
5.9.5.5 Power Cable Connection
● The power cable of this generator must be connected correctly with main circuit breaker.
● The power cable size is depends on generator’s model and power cable length.
● Cut the cable to the appropriate length and remove insulation from both ends of the Power and
ground wires.
● Connect power cable to the generator main fuse terminal.
● Connect opposite side of cable to the main circuit breaker.
● Turn ON the main circuit breaker when input voltage for generator is correct, and push the Power On
switch if want to run X-ray generator.
● Main power will be supplied to the generator if main circuit breaker is not off, turn off the main circuit
breaker to disconnect electric power completely.
