Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual

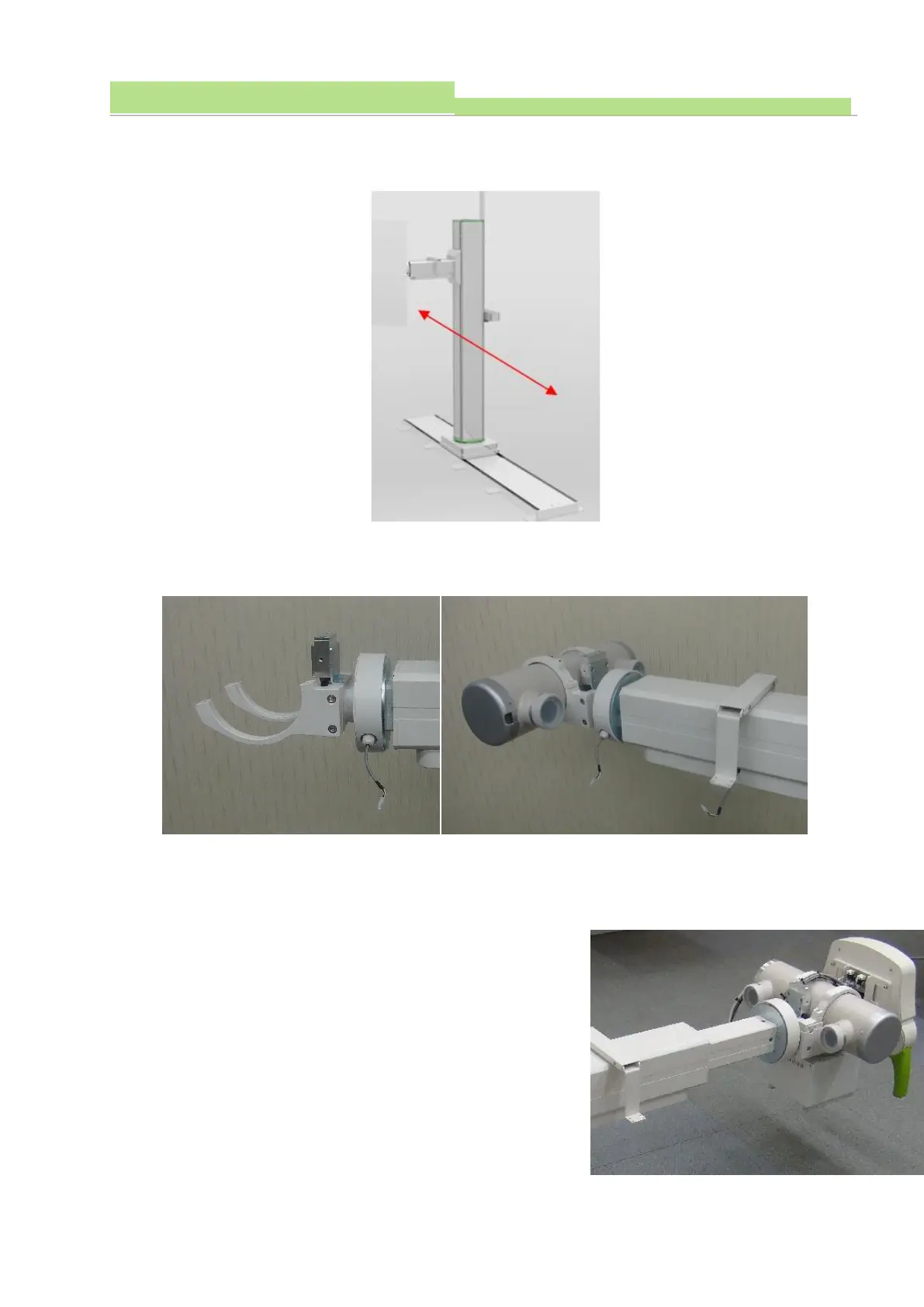

5.10.5.3 X-ray tube assembly
● Locate the Tube Arm to appropriate position for X-ray tube assembly.
● Put X-ray tube on Tube York– at this time, please insert weight balance plates into behind of Tube
Stand.
● Open the rear cover of Stand, put weight balance plates to make perfect balance for Tube arm.
● The weight is increasing when you put X-ray tube and collimator.
CAUTION ▶
Attention : the weight balance plates are very heavy, so please be careful when you handle the plates.
And the plate should not escape from the lack.
Once the weight balance work is correct, please close the
rear cover.
● Assemble the collimator and Tube head side wiring.
To Next Page
